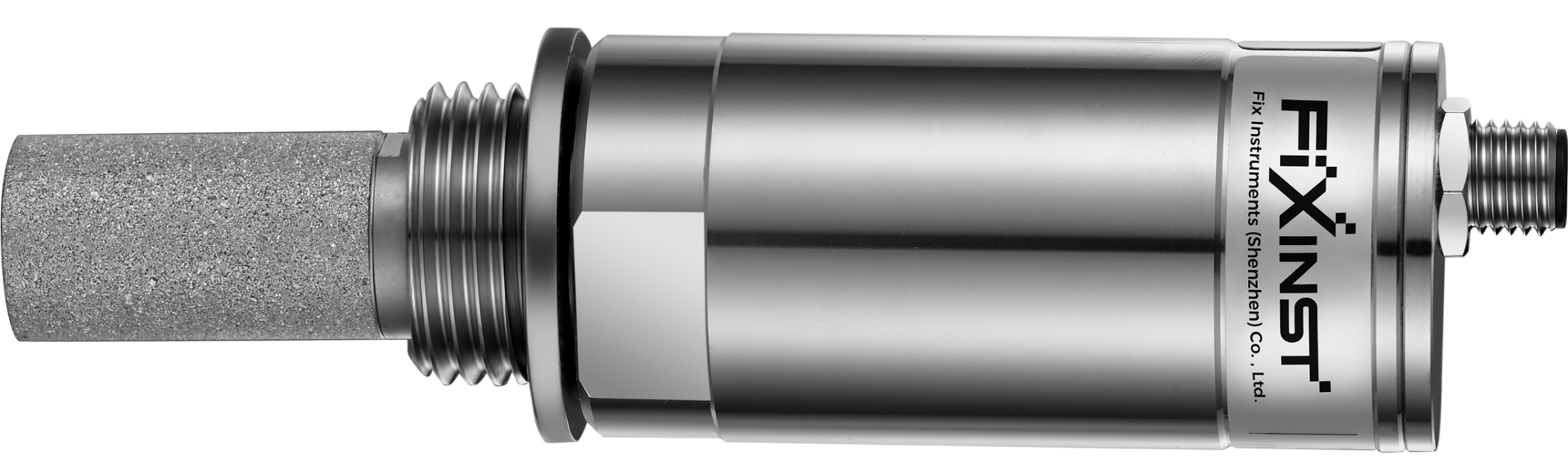

F113x FIXINST-P Polymer capacity compact dew point sensor
Description
Measurement Range：-60 … +60 °Ctd
Characteristics
When the dewpoint of the measuring medium is above -40 °Ctd, the polymer capacitive sensor has the best accuracy, response speed, long-term stability and price performance in comparison with other types of sensors. Revolutionary auto-calibration circuit design automatically compensates for measuring drift caused by temperature, contamination, and aging, providing long-term stability and high accuracy measurements. Innovative temperature compensation algorithm and multi-point temperature-compensated calibration, greatly reduces temperature-dependent dewpoint drift and ensuring high-precision dewpoint measurement over a wide temperature range.
Technical data
Typical installation
- Based on polymer thin film capacitive sensor technology
- Application in dewpoint > -60 °Ctd: Refrigerant dryers, desiccant dryers, industrial gases
- Accurate to ± 2 °Ctd with up to 10+ dewpoint calibration and multi-point temperature compensation (Refer to “Technical Data”)
- Ultra-fast response time and outstanding long-term stability
- Anti-condensation, resistant to particulate contamination, oil vapor and most chemicals
- High resistance to electrical disturbance
- IP65 protection class, providing good protection even in harsh environments
- Provides comprehensive sensor setup, data transfer, software upgrades, and maintenance via Modbus RTU (RS485) interface and powerful service APP
- Calibration is valid for two years, reducing maintenance
- Stable and cost-effective, low cost of use
