Steam trading measurement system
The Yuan steam measurement solution includes a steam billing settlement system, a steam energy supervision system, and a boiler energy efficiency monitoring system.
It connects the instruments, equipment, pipeline managers, and steam users in the steam pipeline through a cloud server into a single entity, and presents it through a visual remote monitoring system and data analysis system. It provides real-time dynamic monitoring and management for steam production, supply, and usage units, and offers a more comprehensive, timely, and accurate data foundation and support platform for enterprises’ energy management work.
Boiler Energy Efficiency Monitoring System

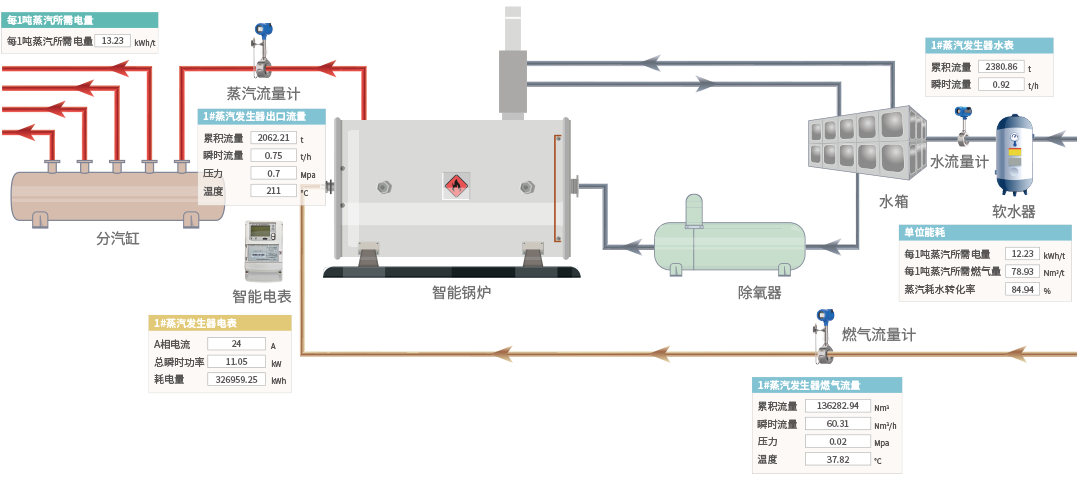

The Yuan Boiler Equipment Energy Efficiency Monitoring System is an energy efficiency analysis of boilers based on precise measurement and the positive balance method.
Relying on the advantages of the Komaje VFM series vortex flowmeters, which have an extremely wide range and strong anti-vibration performance, it can accurately and stably measure the water intake volume, gas consumption, steam production volume of the boiler and the power consumption of the entire equipment in real time, achieving real-time monitoring of the energy consumption and conversion rate required to produce each ton of steam, thereby evaluating the operating status of the boiler.
Through the analysis of the energy efficiency of existing boilers, this system provides users with more energy-efficient and efficient steam supply solutions, and can also provide optimization measures to achieve more efficient energy conservation and emission reduction effects.

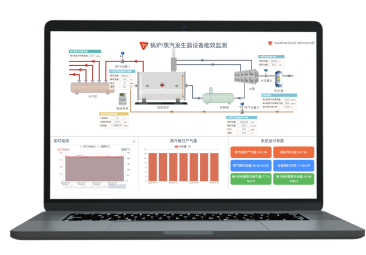

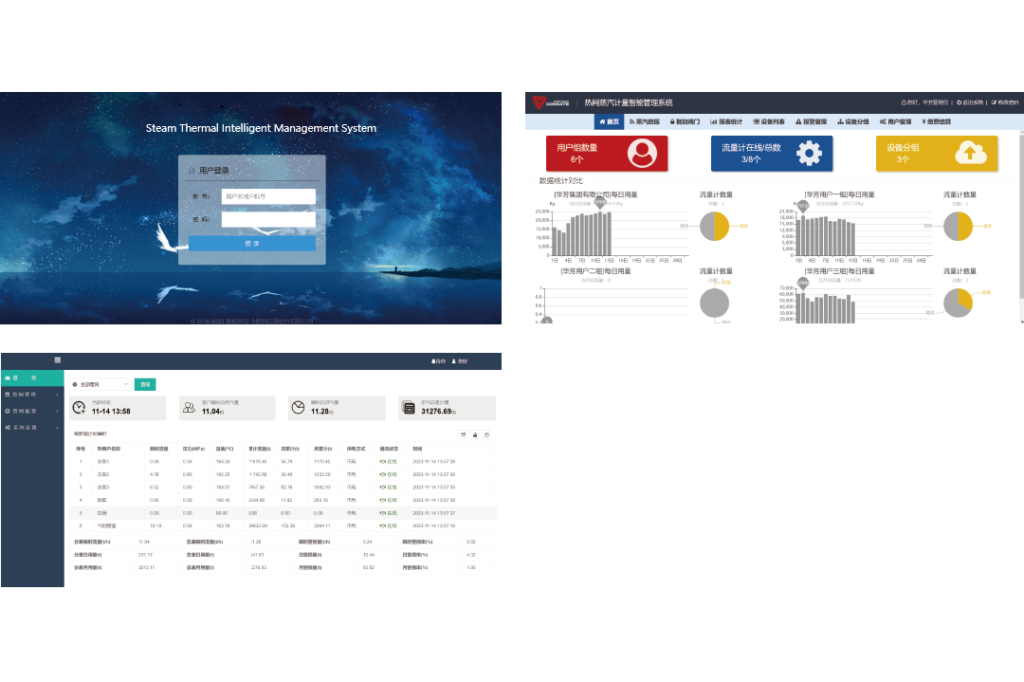

With its strong software development capabilities, the display interface of the Komaje Boiler Equipment Energy Efficiency Monitoring System can be customized and developed according to the needs of different customers. At the same time, it can meet the data access of most boiler supporting equipment in the market, meet the data presentation requirements of different types of customers and different applications, and provide personalized services for customers.
Steam Energy Regulatory System

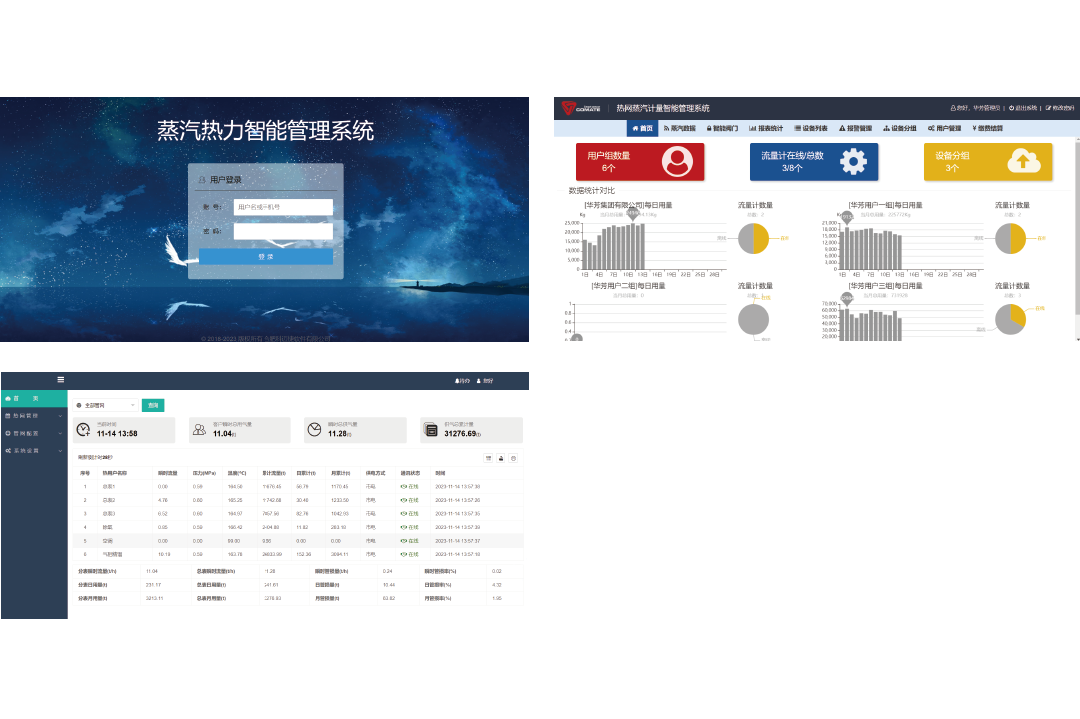

Yuan precisely acquires flow data through data measurement collection devices in the steam pipeline. By using various analysis tools and statistical methods, it analyzes the problem areas that need improvement in the steam usage processes at each end from reliable data records, and presents them to the management engineers to help the enterprise improve lean production and reduce costs while increasing efficiency.
Flow rate, heat, temperature, pressure, valve status, usage analysis
Steam Billing and Settlement System

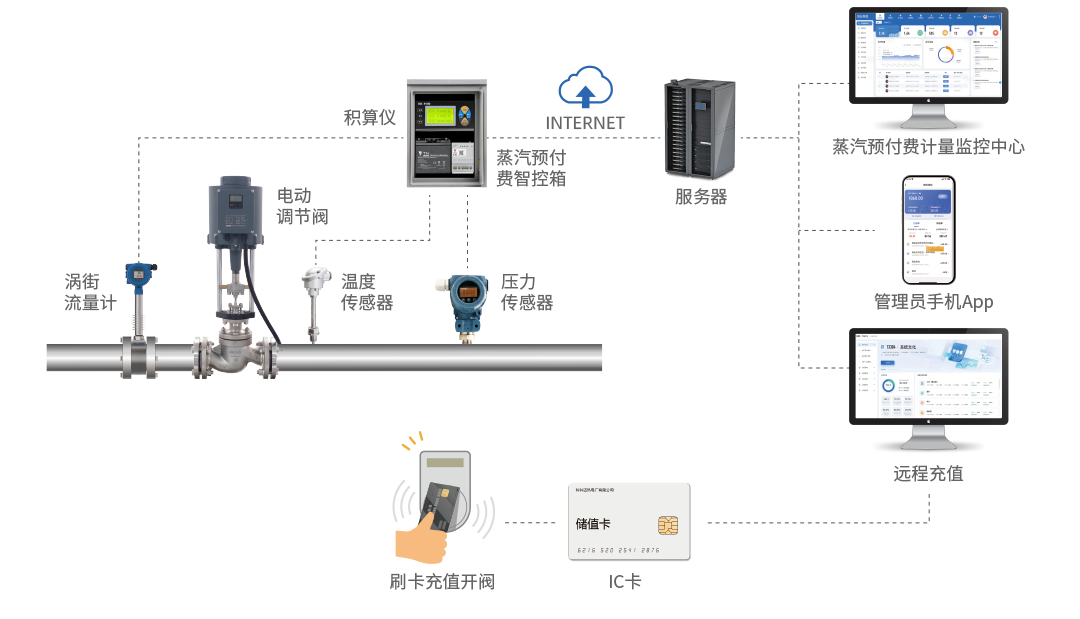

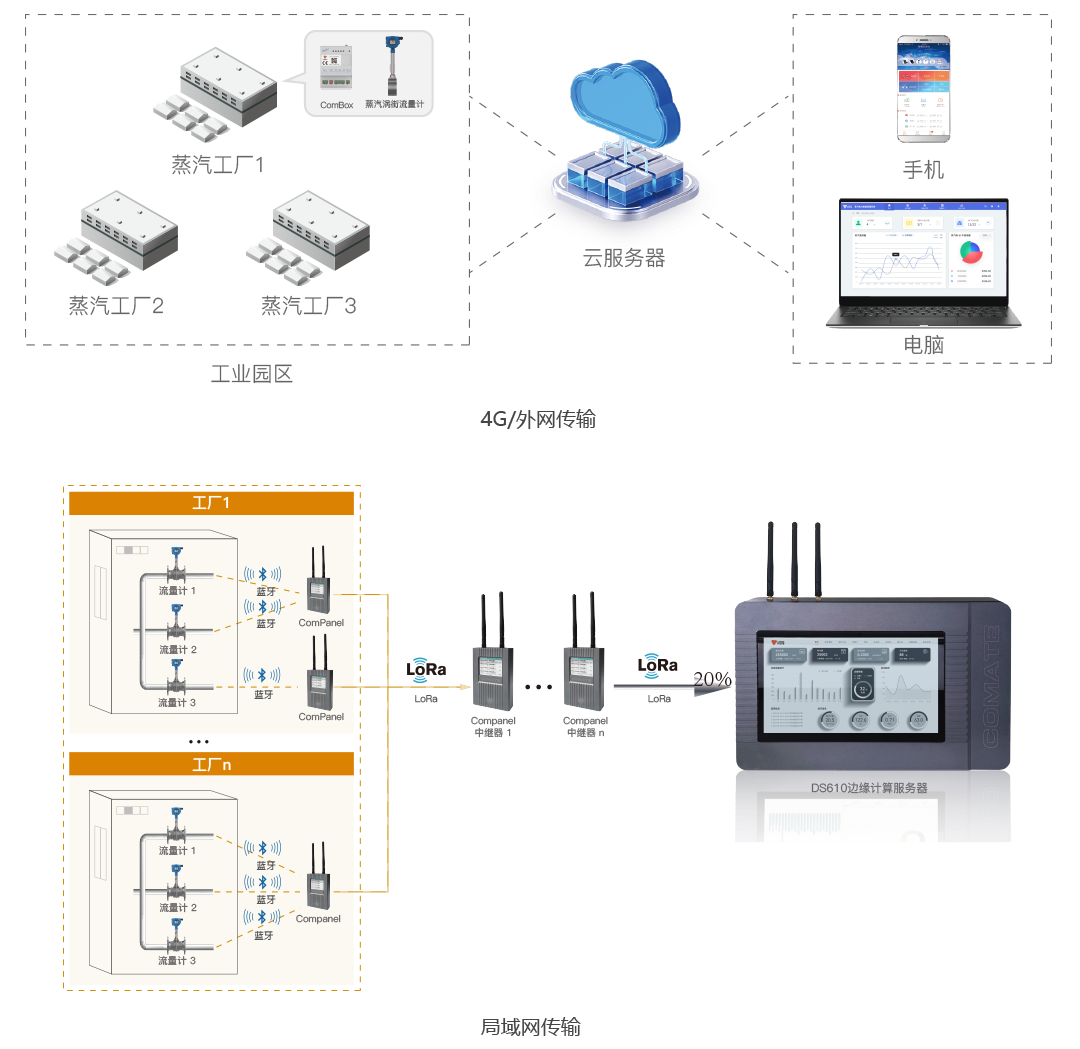

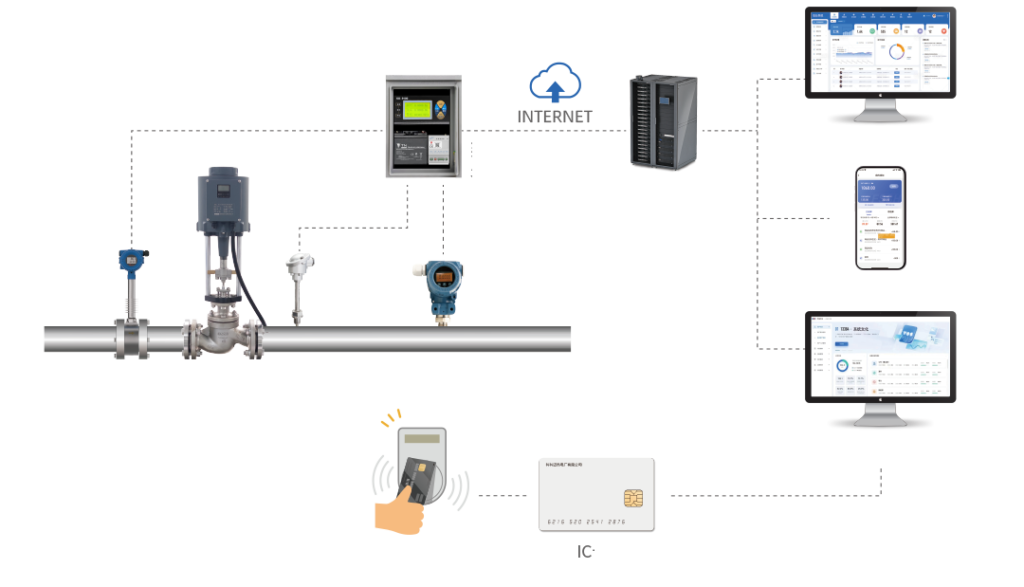

The Yuan Steam Measurement System can collect data from on-site equipment and various sensors through its self-developed 4G module, and upload it to the Yuan server. Eventually, data query, analysis, and statistics for measurement management can be achieved through PC and mobile APP terminals. Both users and property owners can view the steam usage records in real time, and the billing is fair and transparent. Property owners can purchase or lease servers themselves, purchase SIM cards, and Yuan is responsible for setting up the software system. Customized functions can also be provided according to requirements. Additionally, users can choose to use the Yuan system platform and mobile APP software.
Supports NFC function
Supports peak-valley and regular period metering
It can record the number of power outages, the total duration of power outages, and the last power outage time.
It can obtain the status of the UPS power supply and display it (via RS232 or RS485 interface)
It can automatically close the valve and stop the service when the balance reaches zero.
Display the opening alarm status.
It can implement protocol metering algorithm for both high and low traffic volumes.
It supports IoT functions and all interface data can be uploaded.
Set daily and monthly quota quantities, as well as the allocation of the difference, and achieve daily and monthly usage management.
Support the reading of function data from the accumulative instrument (such as instantaneous, cumulative, temperature, pressure, etc.) 口
Support functions such as recharge and balance display
Abnormal warning during billing process
The Yuan steam metering system is equipped with a cloud data recorder function. Once the flow meter is powered on, it transmits the current flow data of the meter to the cloud server every 40 seconds for recording. In case of power failure or communication abnormalities, the server data will be updated synchronously when the network communication is restored to ensure accurate recording of all situations.
