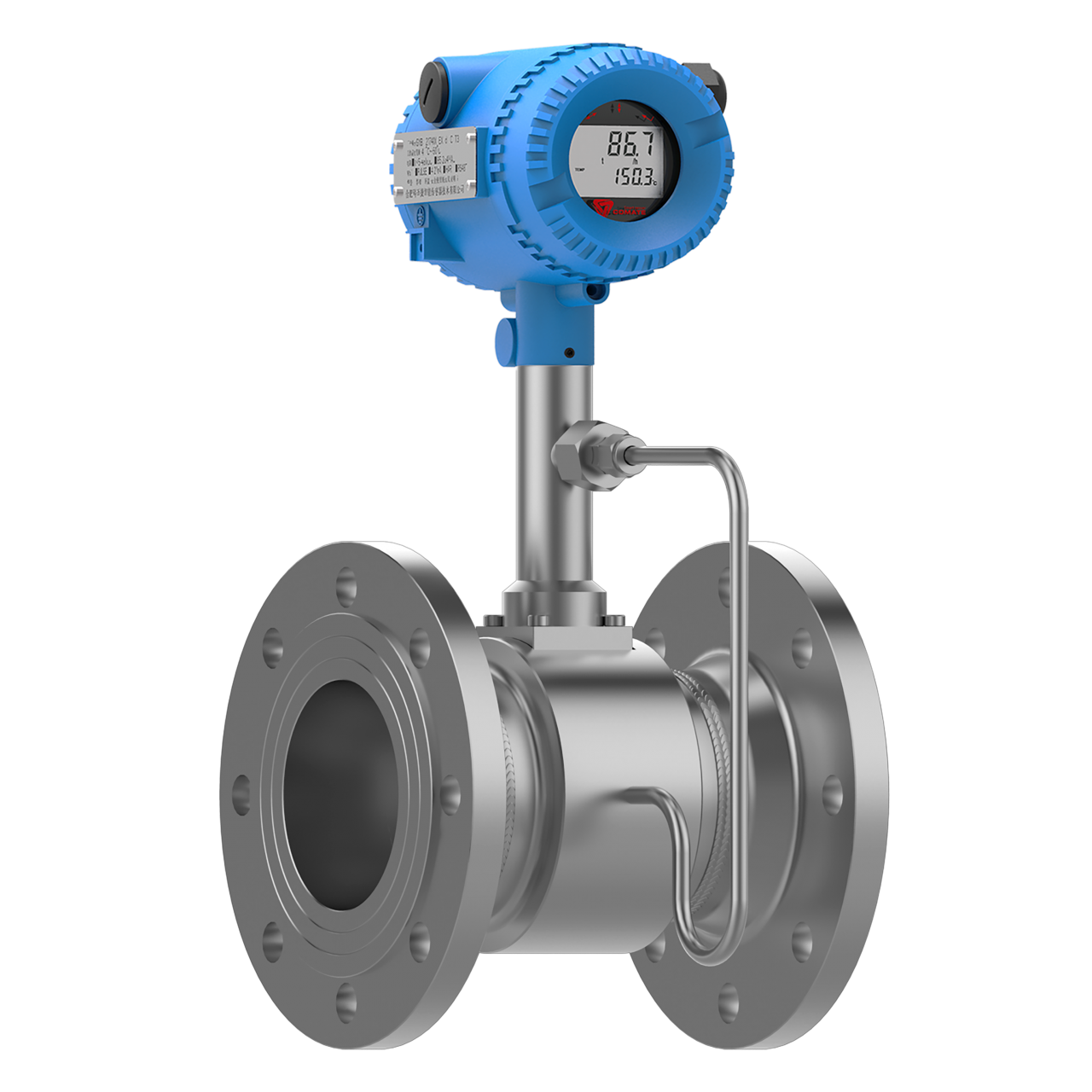

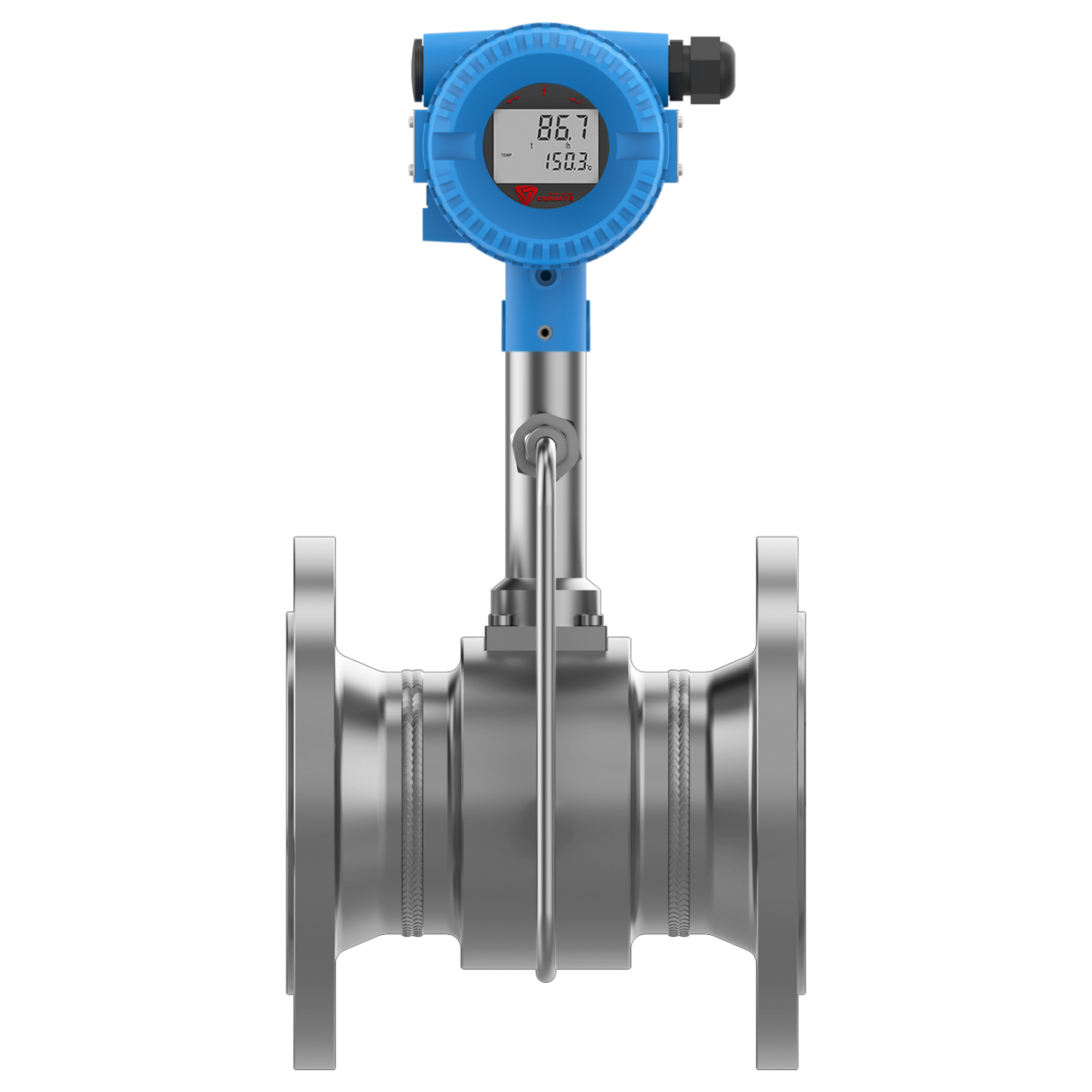

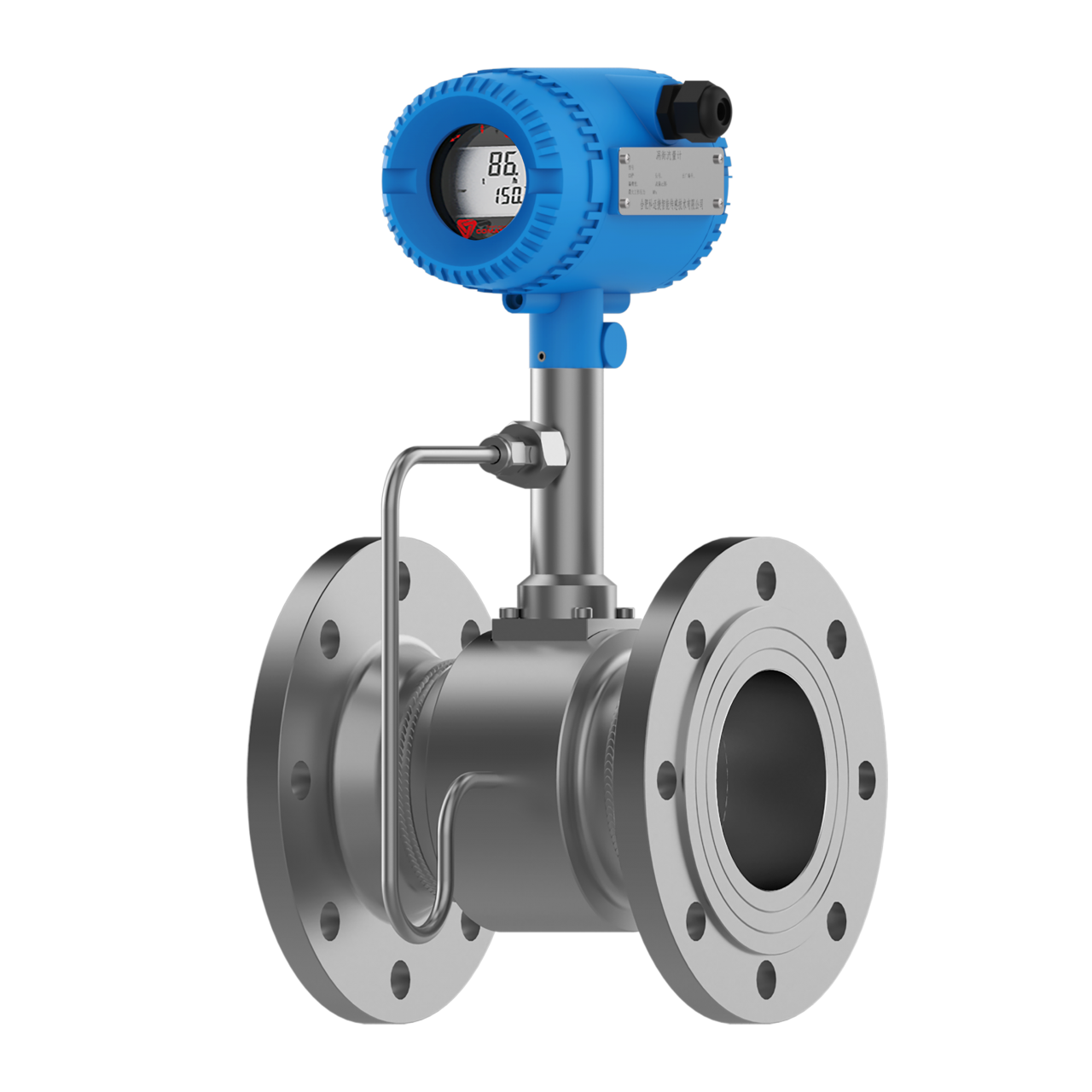

YUA VFM60 Series Vortex Flowmeter – Compressed Air

Functional Role and Target Users of the VFM60 Series
The YUA VFM60 Series vortex air flow meter is engineered specifically for industrial operators requiring accurate monitoring of compressed air and gas flows. Designed for engineers and procurement professionals, this compressed air flow meter enables detailed consumption tracking and system efficiency analysis, supporting process optimization and cost control. As a trusted solution from a reputable vortex flow meter manufacturer, it caters to manufacturing plants, energy companies, and process industries that demand robust instrumentation compatible with complex control systems.

Technical Design and Measurement Capabilities
This vortex flowmeter integrates patented dual vortex sensors to enhance vibration resistance and features built-in temperature and pressure sensors, allowing simultaneous acquisition of multiple fluid parameters. With a minimum detectable gas velocity of 2 m/s, it achieves gas repeatability of ±0.3% RD and an operating flow rate accuracy of ±1.0% RD. Constructed from stainless steel grades 304, 316, and 316L, the device supports process pressures up to 6.3MPa and includes several signal outputs such as Pulse, RS485, and 4–20mA with HART, assuring seamless integration within automation environments. Its wide power supply range (16–32 VDC) and explosion-proof certifications enhance suitability for industrial deployment.

Industrial Applications and Operational Benefits
The vortex air flow meter from Shenzhen Yuan Intelligent Instrument Technology Co., Ltd. finds utility in diverse sectors including manufacturing, mining, and natural gas metering. It delivers precise volumetric measurement critical to energy management and regulatory compliance in hazardous environments. Integration with supervisory control and data acquisition (SCADA) systems is facilitated by its multiple communication protocols. This compressed air flow meter supports real-time monitoring and analytics, enabling predictive maintenance and resource optimization, thus contributing measurable operational and cost efficiencies across industrial workflows.

Product Advantages

Design Integration and Structural Durability Advantages
The YUA VFM60 Series vortex flow meter is designed with a patented dual vortex sensor arrangement that significantly improves vibration resistance, reducing signal noise under harsh operational conditions. Its fully isolated electrical structure guards against external interference, ensuring measurement stability. The use of robust 304 to 316L stainless steel materials guarantees mechanical strength and corrosion resistance for long-term deployment. Compact dimensions and multiple process connection options, including clamp and flange types, allow straightforward installation in existing piping systems. As a high-quality vortex flowmeter from a reliable vortex flow meter manufacturer, it meets IEC IP65/IP67 protection standards and includes explosion-proof certifications, making it adaptable for hazardous industrial environments.

Performance Reliability and Operational Ease
This compressed air flow meter offers exceptional sensitivity to low gas velocities and delivers precise flow data supported by accurate built-in temperature and pressure compensation. The large dual-line LCD provides clear visibility of measured parameters on site, simplifying operator monitoring. Multiple output signals, including Pulse, RS485, and 4–20mA with HART, facilitate easy integration into control and data acquisition infrastructures. Its wide voltage compatibility and Bluetooth connectivity options further enhance flexibility in different power supply and communication scenarios. The design also supports remote diagnostics and configuration, elevating usability and reducing maintenance costs for end users reliant on steady measurement performance.

Main features:

With extremely high sensitivity, the lower limit of gas flow rate can reach 2 m/s.
Built-in temperature and pressure sensors are available, capable of measuring the temperature and pressure of the medium.

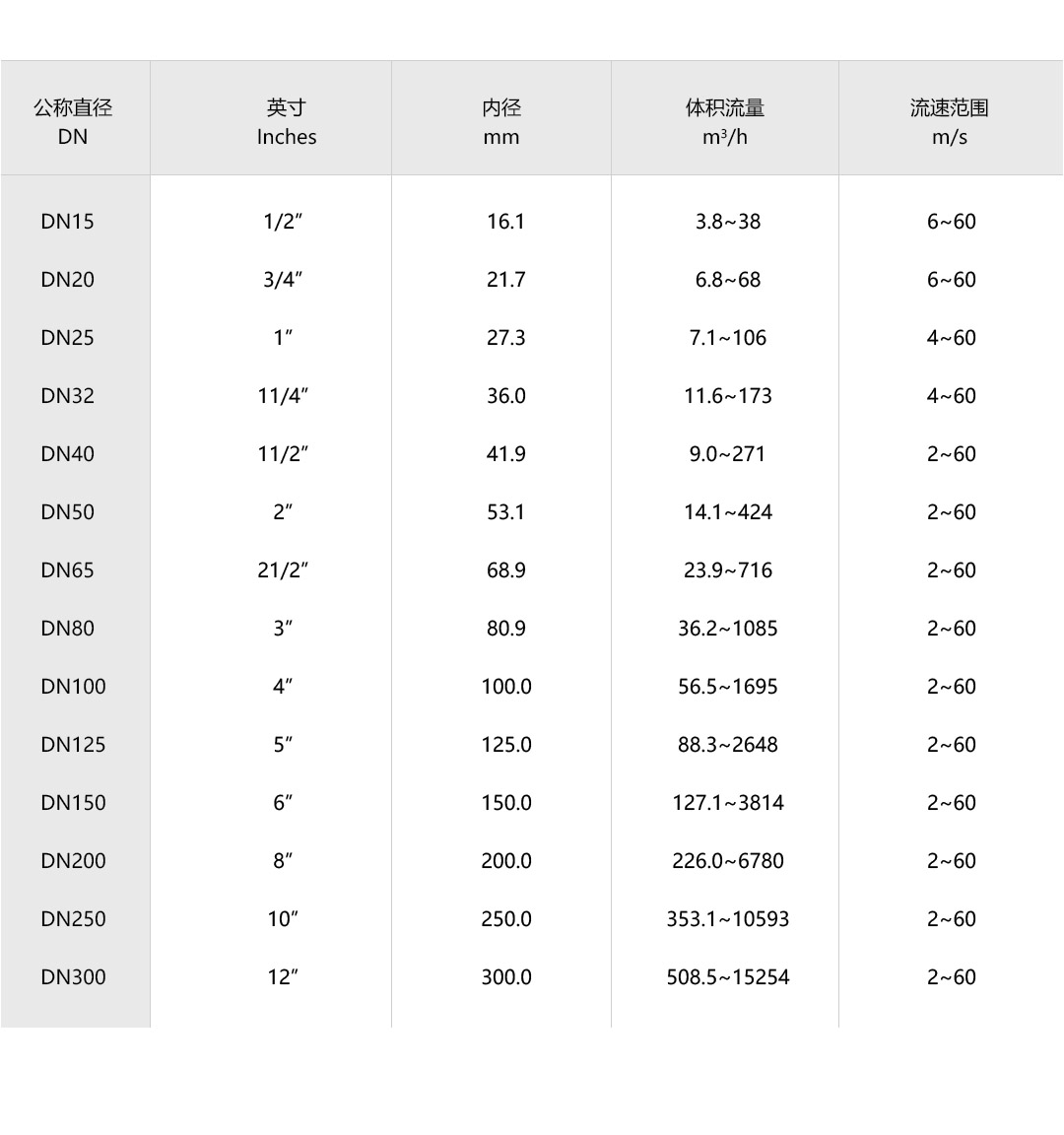

The range ratio far exceeds that of traditional vortex flowmeters, with a wide measurement flow rate range.
The fully isolated electrical structure completely filters out external interference.
Patented dual vortex flow sensor design, with excellent vibration resistance performance.
Wide power supply voltage input range to adapt to various complex power supply environments.
Large-screen liquid crystal dual-line display, with clear and easy-to-read readings. No moving parts, no pressure loss

Application fields:

Measurement of compressed air cubic meter consumption
Monitoring of coal mine gas extraction flow rate
Measurement of natural gas cubic meter flow and consumption
Measurement of fluid temperature and pressure

Compressed Air Consumption Monitoring in Manufacturing
In manufacturing environments where compressed air is a critical utility, the vortex air flow meter is employed to accurately measure air volume consumption. It enables engineers and facility managers to track usage patterns, pinpoint inefficiencies, and validate energy-saving initiatives. Due to its vibration-resistant sensor design and robust explosion-proof certification, it complies with stringent safety regulations and maintains accuracy even in noisy, industrial atmospheres. Integration with plant-wide automation systems via Pulse and RS485 outputs allows real-time data acquisition and energy management system synchronization, supporting continuous process optimization and cost control.

Gas Flow Measurement in Hazardous Mining Operations
The VFM60 Series compressed air flow meter performs essential measurement functions within coal mine gas extraction systems, where safety and precision are paramount. Its certified explosion-proof structure ensures compliance with hazardous area standards, and the built-in sensor suite provides simultaneous flow, temperature, and pressure data to inform ventilation and safety control. The meter’s high sensitivity enables detection of low flow rates critical for early gas leak identification. It smoothly integrates with mine control networks, delivering high-reliability performance and enhancing operational safety through continuous flow monitoring and alerting capabilities.

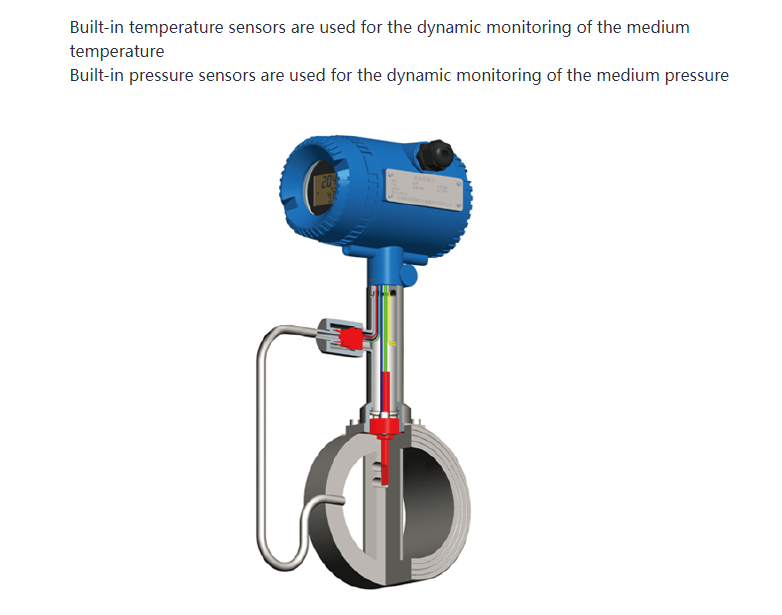

The built-in pressure and temperature sensors reduce the installation workload while minimizing potential pipeline leakage points, making the use and maintenance safer and more convenient. The embedded gas compression compensation factor calculation program is used for gas trade metering.

FAQ

What materials are used in the construction of the VFM60 Series vortex flowmeter?
We manufacture the VFM60 Series using durable 304, 316, or 316L stainless steel for the body and sensor, combined with an aluminum housing. This ensures long-term corrosion resistance and suitability for various industrial applications requiring a reliable vortex flowmeter.

Can the VFM60 Series flowmeter be customized for different installation types?
Yes, our vortex flow meter supports multiple process connections including clamp type, flange connection, and sanitary clamp connection. This flexibility allows integration into a wide range of industrial piping setups, making installation straightforward and adaptable to your system.

How do you support after-sales service and technical maintenance?
We provide ongoing professional support, including guidance on installation, calibration, and maintenance of our compressed air flow meter products. Our technical team ensures your equipment operates accurately and reliably throughout its lifecycle, helping you maintain optimal performance.

What shipping and delivery options are available for international customers?
We maintain a 1500 square meter warehouse in Shenzhen, enabling prompt processing and shipment of orders worldwide. This logistical capability helps us deliver your compressed air flow meter quickly and efficiently, supporting your project timelines and operational needs.
