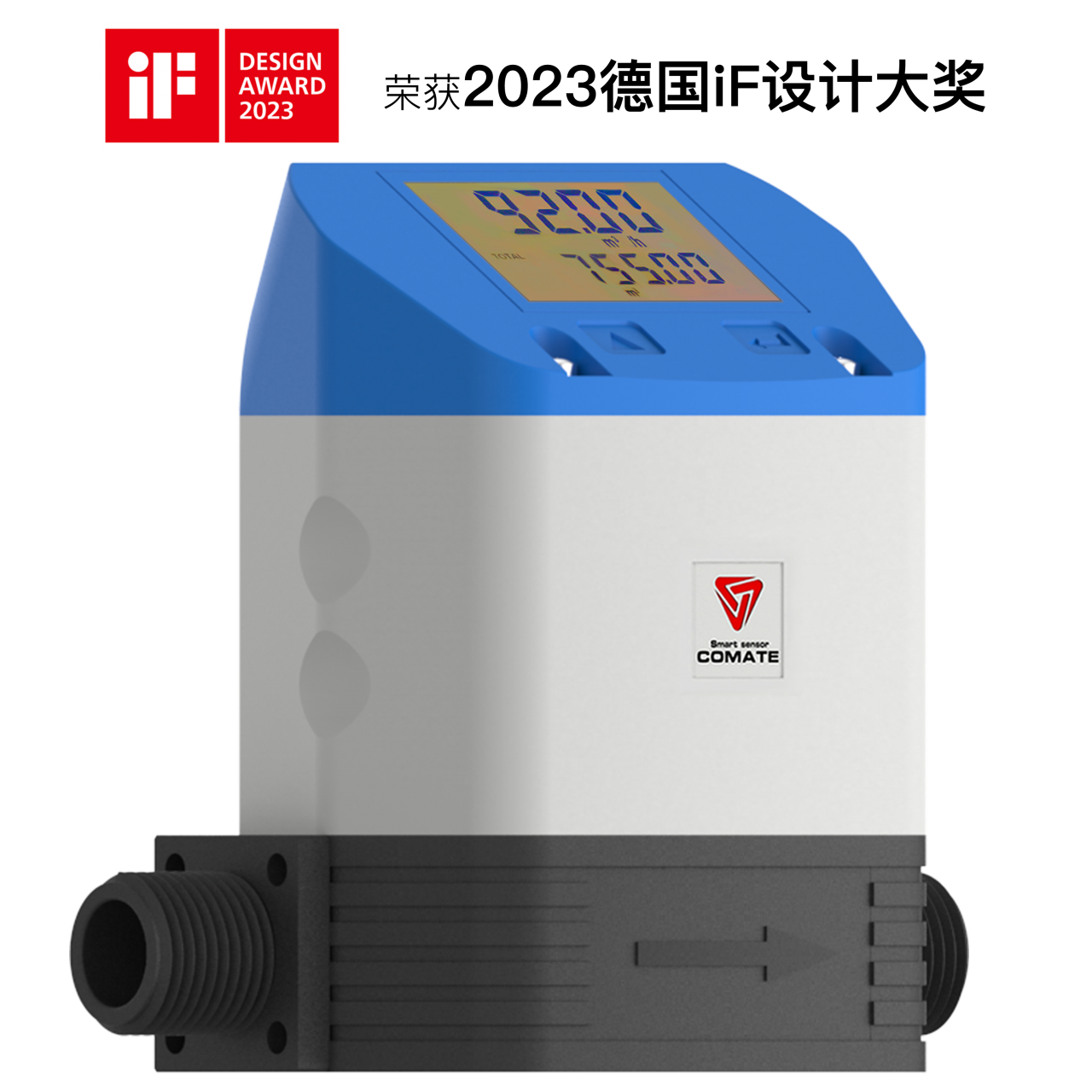

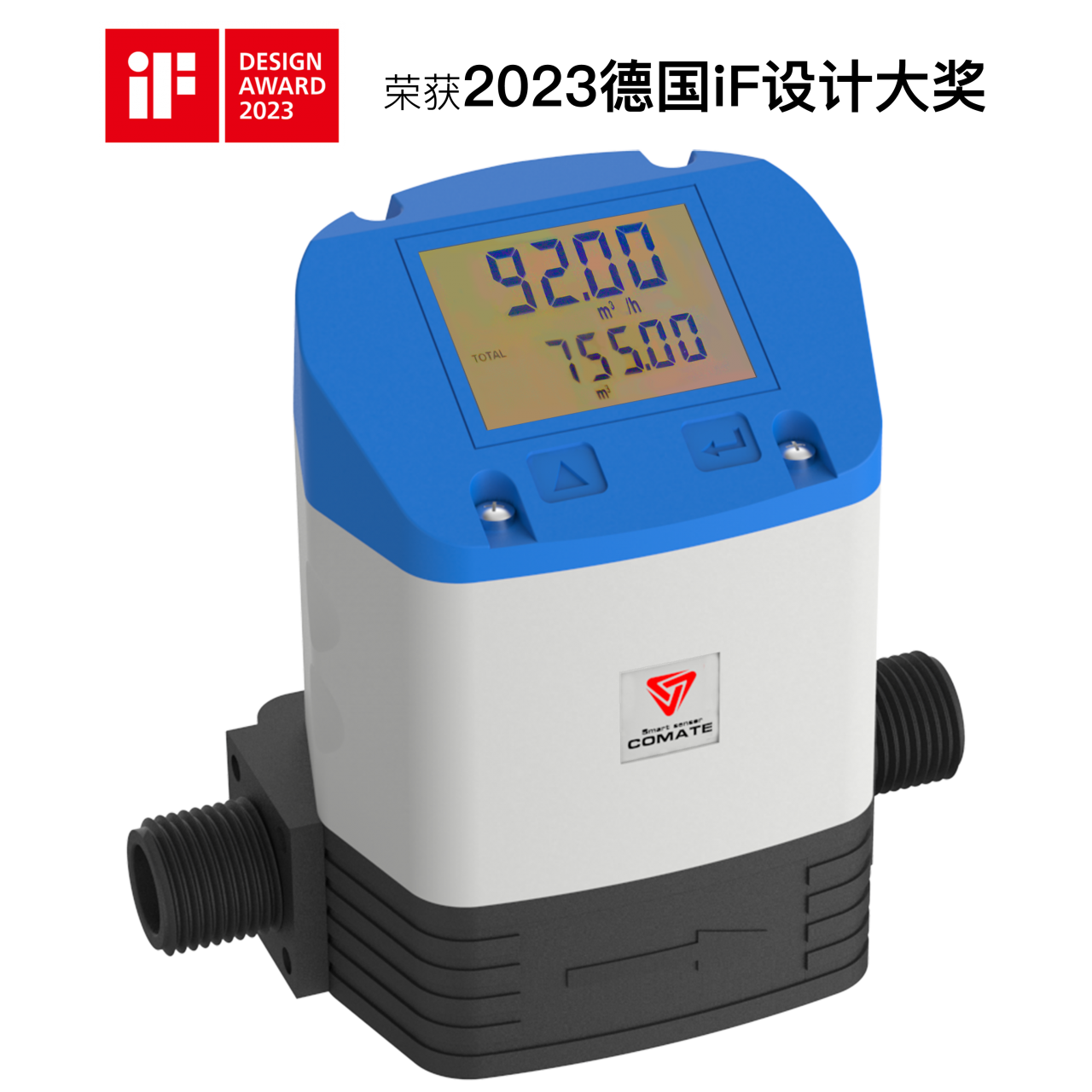

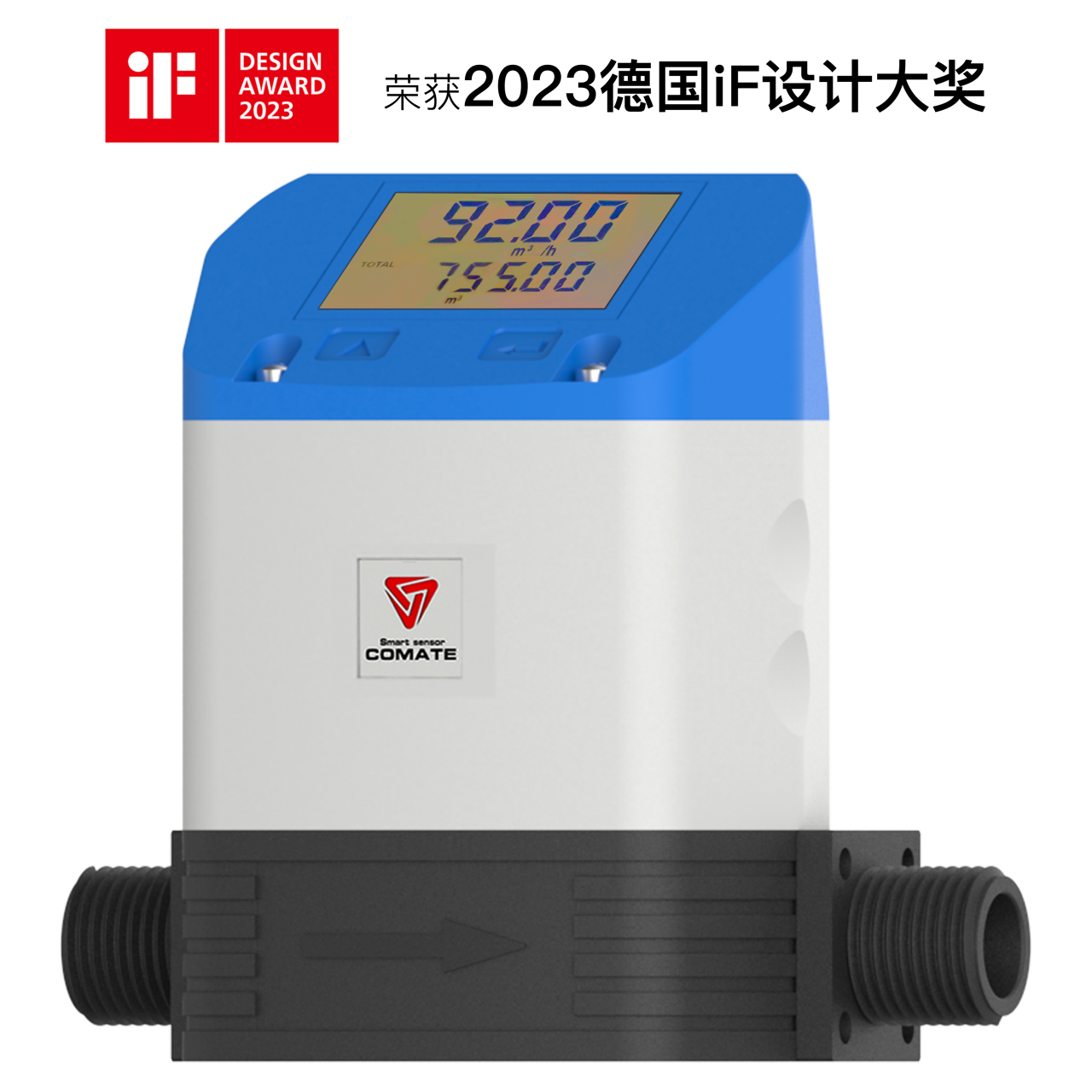

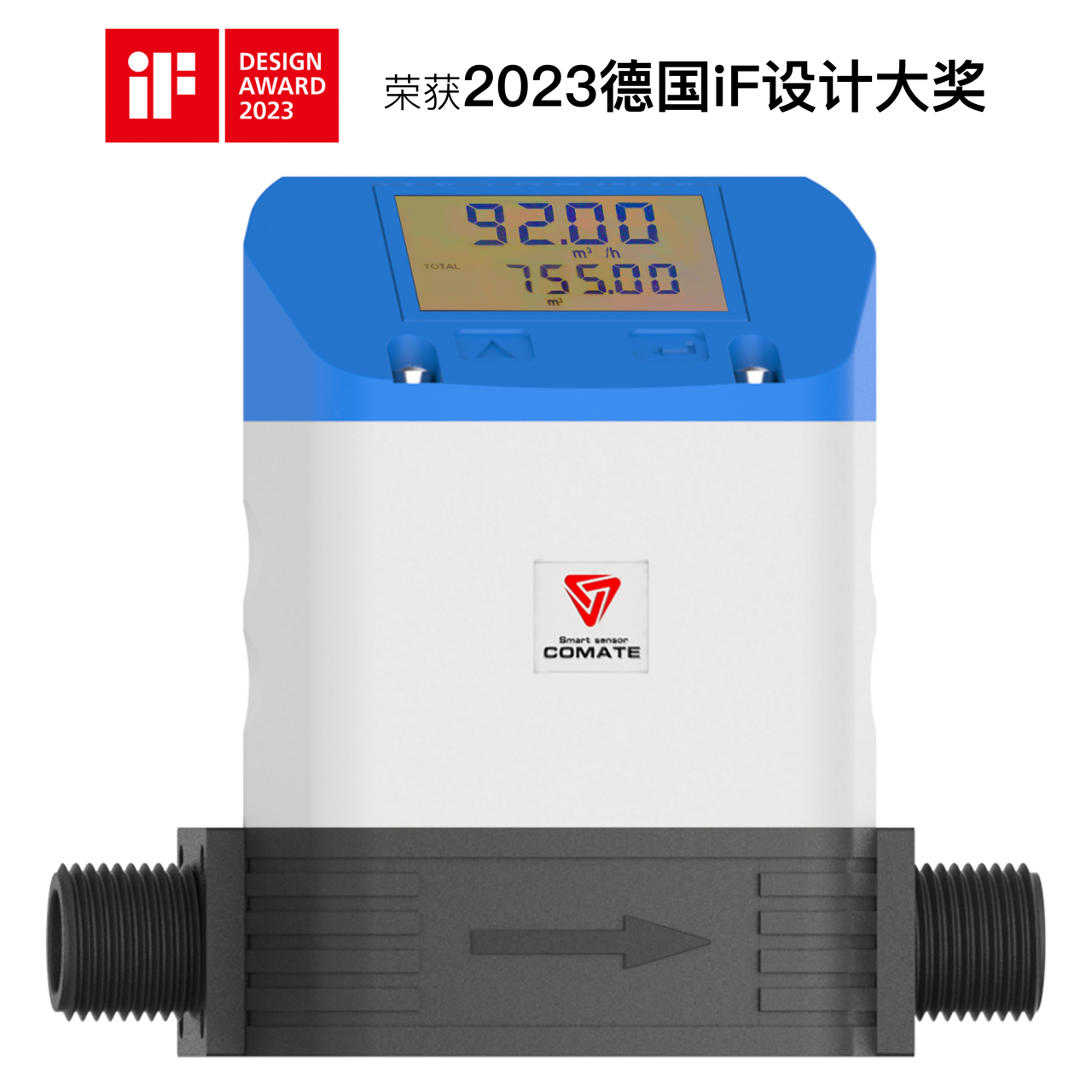

VFM55MV Miniature Vortex Flow Meter

The VFM55MV micro vortex flowmeter is the world’s first vortex flowmeter that can measure the flow of dry and wet air in industrial
pipelines ranging from 16L to 300L per minute. It adopts an innovative symmetrical dual Karman vortex vibration sensing sensor
design, which has received multiple patents. It can simultaneously and continuously measure the working conditions, pressure,
temperature, and mass flow rate of the measured gas. The product is paired with an intelligent digital system to achieve
human-computer interaction and is easy to use, standing out among similar products in the industry.

Main features:

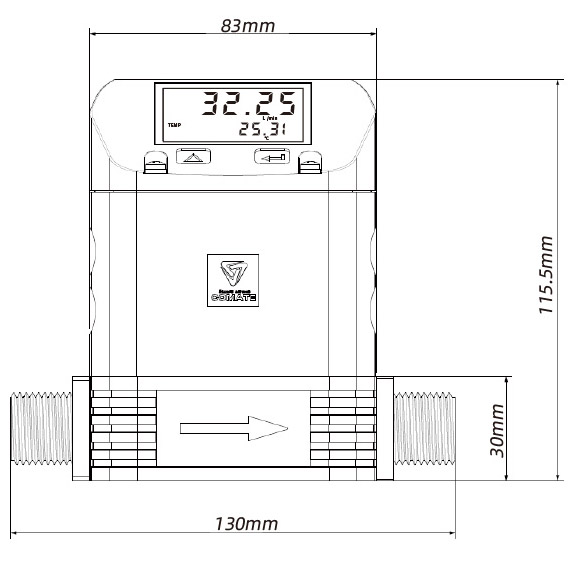

Applicable for wet air measurement. Diameter range
: DN8-DN25. Measurement range
: 16L/min to 300L/min. Maximum accuracy

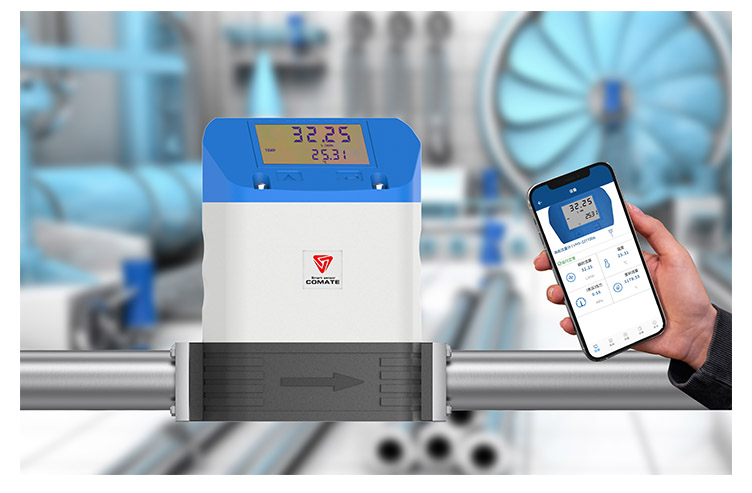

: ±1%RD. Supports Bluetooth centralized meter reading.
The mobile APP has intelligent self-diagnosis function. Built-in temperature and pressure sensors.
Directly outputs standard flow. Powered by battery. Can meet normal usage for 14 months. Also available with 24V power supply.
