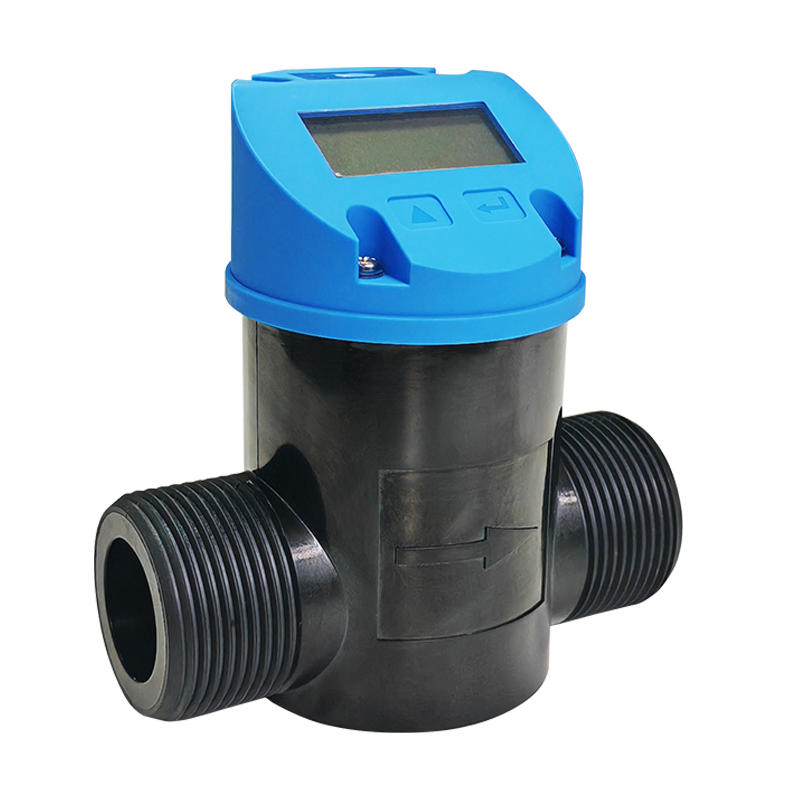

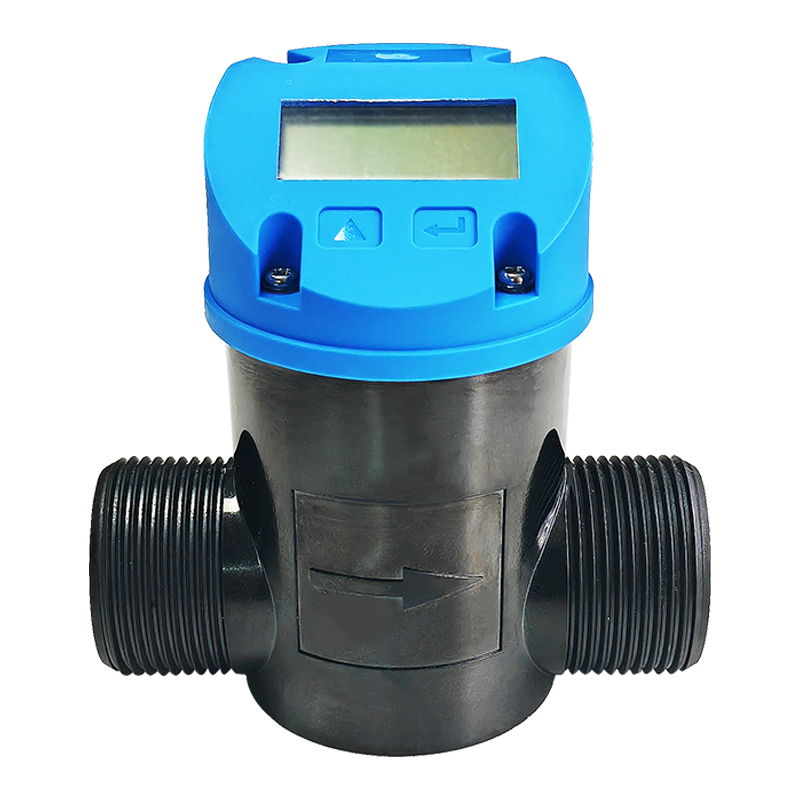

YUA VFM52MV Miniature Vortex Flow Meter – Karman vortex

Purpose-Driven Flow Monitoring for Process Control
The YUA VFM52MV miniature vortex flow meter fulfills the demands of industrial engineers and system integrators requiring precise flow measurement of gases, liquids, and wet gases in compact installations. Designed by a leading vortex flow meter manufacturer, this product targets sectors where durable and maintenance-free instrumentation enhances operational reliability. Its lightweight, compact housing supports seamless integration into existing pipelines and equipment layouts, enabling users to obtain accurate flow data essential for process optimization and control.

Innovative Technical Specifications Enhancing Accuracy
Employing the Karman vortex principle, this small vortex flow meter detects flow-induced vortex shedding frequencies to measure rate accurately. It features integrated temperature and pressure compensation with Bluetooth intelligent diagnosis, providing real-time insights into flow, temperature, and pressure parameters. With a repeatability of ±0.3% and accuracy up to ±1%RD, it supports flow rates from 20 to 300 L/min for gases and 1 to 180 L/min for liquids. Corrosion-resistant materials and a dual-probe anti-vibration algorithm ensure operational stability in variable environments.

Applications Across Diverse Industrial Environments
This vortex flowmeter serves key industries including compressed air systems, chemical processing, and research laboratories requiring high-precision flow monitoring. It excels in pipelines subject to fluctuating pressure and temperature while maintaining performance in vibration-prone settings. By substituting mechanical flow meters, it reduces maintenance overhead and delivers continuous data for automated process control systems. Its compatibility with system communication protocols enables efficient integration within industrial measurement networks.

Product Advantages

Structural and Design Advantages from Engineering Insight

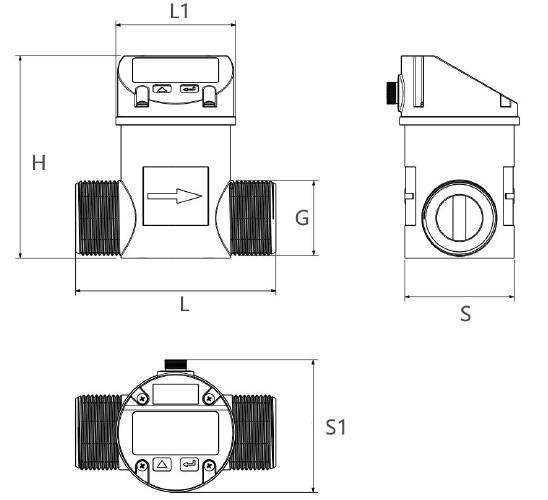

The miniature vortex flow meter incorporates a corrosion-resistant PPS housing and sound generator, designed to withstand harsh chemical environments. Its compact form factor provides flexible installation options with process connections including G1/2 and G1-1/4 pipe external threads. The absence of moving parts eliminates wear-related failures, while the dual-probe design offers enhanced anti-vibration capability, providing robustness suited for advanced industrial applications. As a reliable vortex flow meter manufacturer, this product exemplifies modular, durable design principles.

Performance Reliability and Operational Usability
This small vortex flow meter offers ±1% reading accuracy coupled with a repeatability of ±0.3%, supporting critical process monitoring requirements. Intelligent Bluetooth diagnostics facilitate remote status assessment, reducing downtime and maintenance costs. The device’s multi-signal output options (0-10V, 4-20mA, pulse, RS485) enable integration with diverse control systems. Its no-maintenance design improves user value by ensuring sustained accuracy and operational efficiency, aligning with procurement considerations for long-term return on investment.

The VFM52MV micro vortex flowmeter is a flow sensor based on the “Karman vortex” principle. It has a compact structure, a lightweight appearance and is reasonably priced. It can be installed on various equipment.

Main Characteristics

· Anti-vibration is based on the dual-probe anti-vibration algorithm, which can provide better anti-vibration performance.
·No maintenance required. No movable parts. Supports Bluetooth intelligent diagnosis.
The lower limit range is 1:15. The lower limit for gas measurement is as low as 20 liters per minute.
·It has a wide range of applications and can be used for measuring various gases and liquids, as well as wet gases.
·Super convenient integration of temperature and pressure compensation, capable of outputting temperature, pressure and flow rate
·The accuracy is up to ±1%RD
· Corrosion-resistant: Based on the corrosion-resistant design of special materials, it can be used in corrosive media.
·Small in size, compact in structure, and lightweight in appearance

Use Scenarios

Precision Compressed Air and Industrial Gas Measurement
In manufacturing plants where compressed air quality and flow stability are critical, the miniature vortex flow meter serves as an essential component for optimizing energy consumption and process safety. Installed inline, it precisely monitors gas flow rates with ±1% accuracy while compensating for pressure and temperature variations. The integration of Bluetooth diagnostics simplifies onsite verification without interrupting production. Its corrosion-resistant build supports compliance with stringent environmental and safety standards, providing real-time data to industrial control systems.

Liquid Flow Monitoring in Variable Pressure Pipelines
Within chemical and pharmaceutical production environments, the small vortex flow meter is deployed to track liquid flow in pipelines exposed to fluctuating pressures and temperatures. Its durable construction and dual-probe anti-vibration feature ensure consistent flow measurement accuracy for process regulation and quality control. Connecting seamlessly to existing automation platforms via versatile output interfaces, it facilitates continuous flow rate data acquisition, ensuring compliance with operational parameters and regulatory requirements for liquid handling systems.

FAQ

What materials are used in the YUA VFM52MV Miniature Vortex Flow Meter?
Our miniature vortex flow meter features an instrument housing and sound generator made of PPS, a corrosion-resistant material chosen for durability in harsh environments. This ensures long-term protection and reliable performance across various industrial applications.

Can you customize the flow meter for specific pipeline connections?
Yes, we offer the VFM52MV with process connections including G1/2 and G1-1/4 external pipe threads. This flexibility allows you to select the fitting reliable suited for your pipeline, helping integrate the vortex flowmeter seamlessly into your system.

How do I install the VFM52MV in a vibration-prone environment?
Our flow meter employs a dual-probe anti-vibration algorithm, making it suitable for sites with mechanical vibrations. This design enhances stability and measurement accuracy, ensuring reliable data collection even under challenging conditions.
