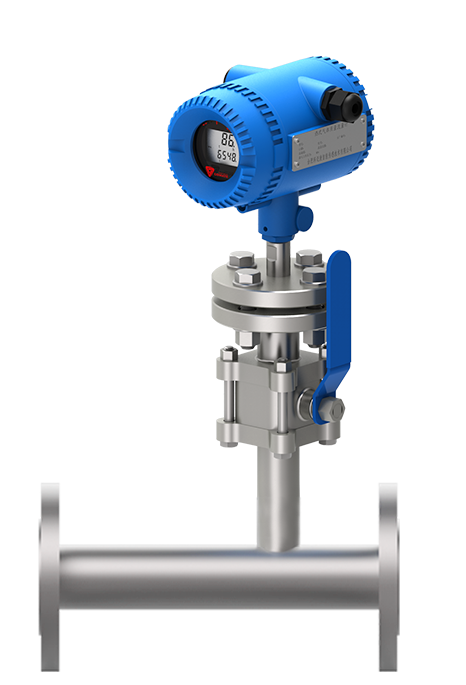

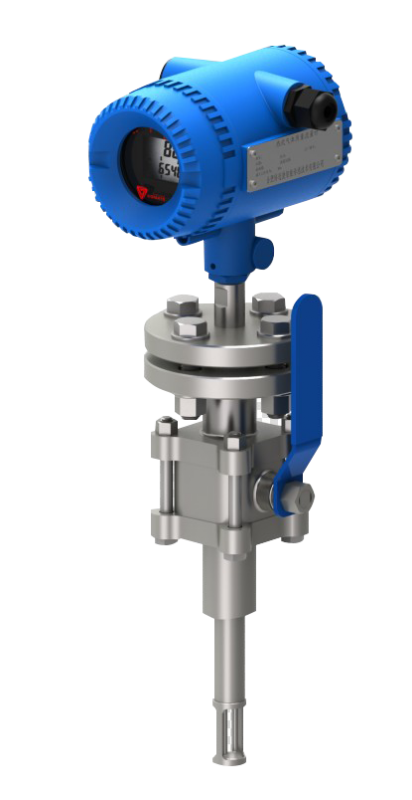

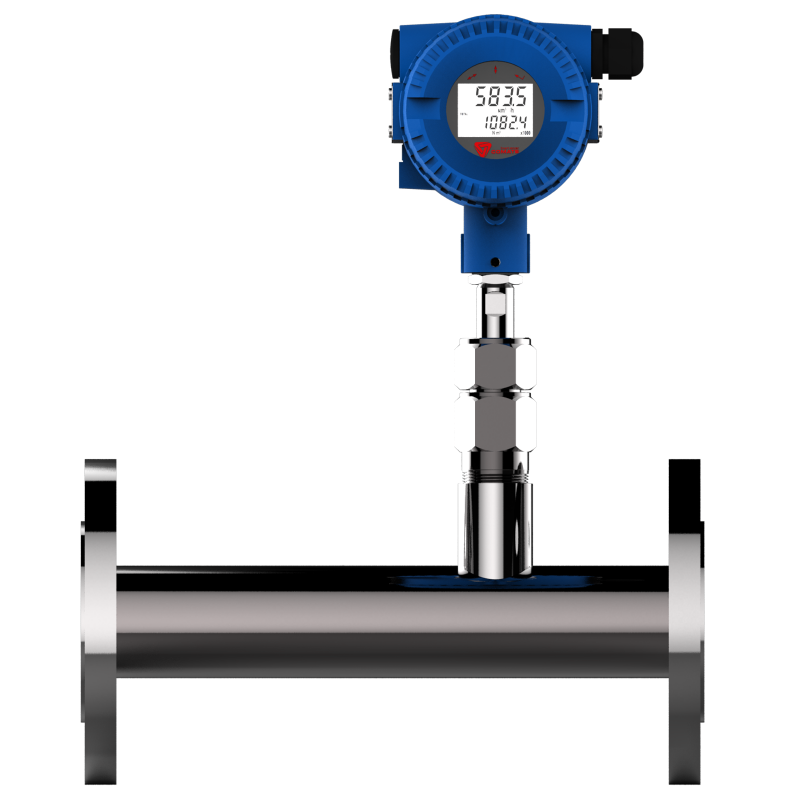

YUA TGF600 series thermal gas mass flowmeter
Description
The accuracy of TGF600 flowmeter of Comay is (1.5% RD+0.5% FS). The range ratio is preset in the factory according to your application, with a minimum of 10: 1 and a maximum of 1: 100, and can be adjusted on site within the calibration range. TGF-600 flowmeter provides a variety of appearance and installation options to ensure that its structure can meet your application conditions. From compressed air to hydrocarbon gas, from single-component gas to mixed gas, TGF600 is used all over the world.

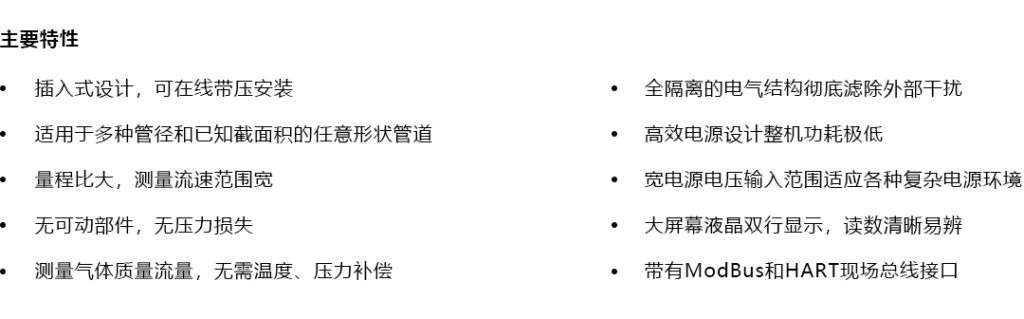

Main features:
Plug-in design, fully isolated electrical structure can be installed on-line with pressure to completely filter out external interference.
It is suitable for the design of high-efficiency power supply for pipelines with various diameters and known cross-sectional areas, and the power consumption of the whole machine is extremely low.
Large range ratio, wide range of measuring flow velocity and wide input range of power supply voltage to adapt to various complex power supply environments.
No moving parts, no pressure loss, large-screen LCD double-line display, clear and easy to read.
Measuring gas mass flow without temperature and pressure compensation, with ModBus and HART field bus interfaces.

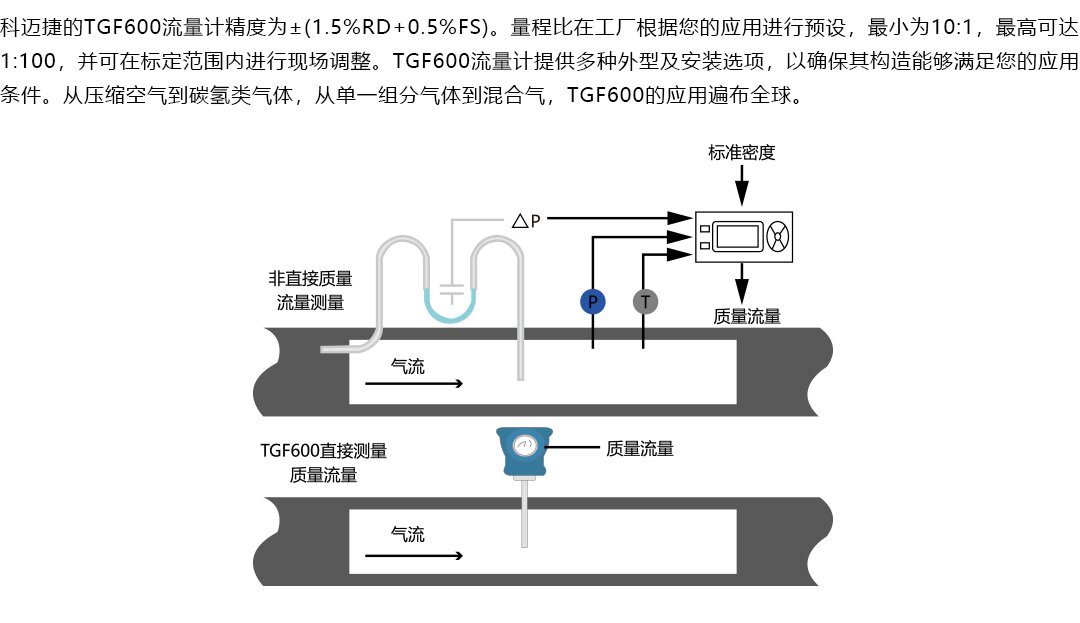

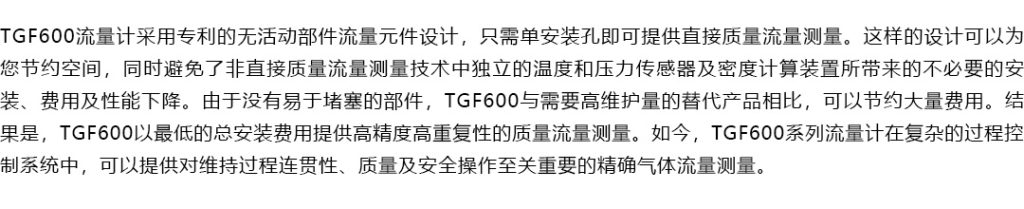

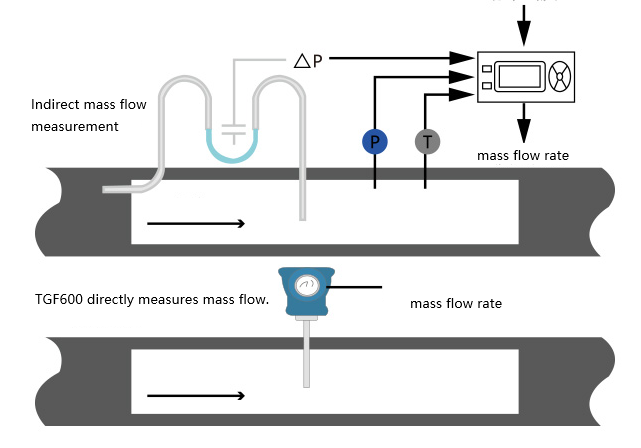

TGF600 flowmeter adopts patented flow element design with no moving parts, which can provide direct mass flow measurement with only one installation hole. This design can save space for you, and avoid unnecessary installation, cost and performance degradation caused by independent temperature and pressure sensors and density calculation devices in indirect mass flow measurement technology. Because there are no parts that are easy to block, TGF600 can save a lot of money compared with alternative products that require high maintenance. As a result, TGF600 provides high-precision and high-repeatability mass flow measurement at the lowest total installation cost. Nowadays, TGF-600 series flowmeters can provide accurate gas flow measurement which is very important for maintaining process consistency, quality and safe operation in complex process control systems.

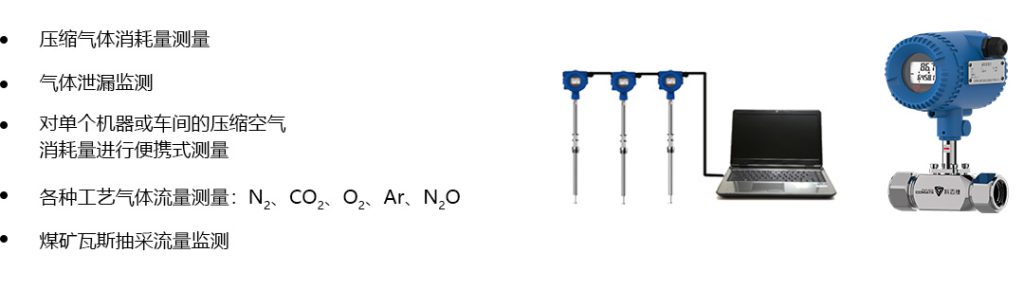

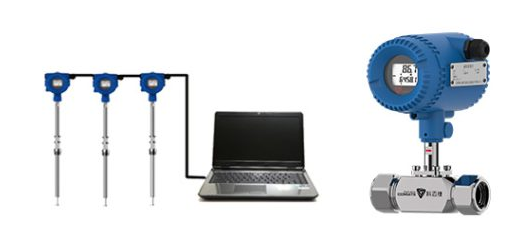

Measurement of compressed gas consumption and gas leakage monitoring Portable measurement of compressed air consumption of a single machine or workshop Various process gas flow measurement: N2, CO2O2, Ar, N2O· Monitoring of coal mine gas extraction flow.

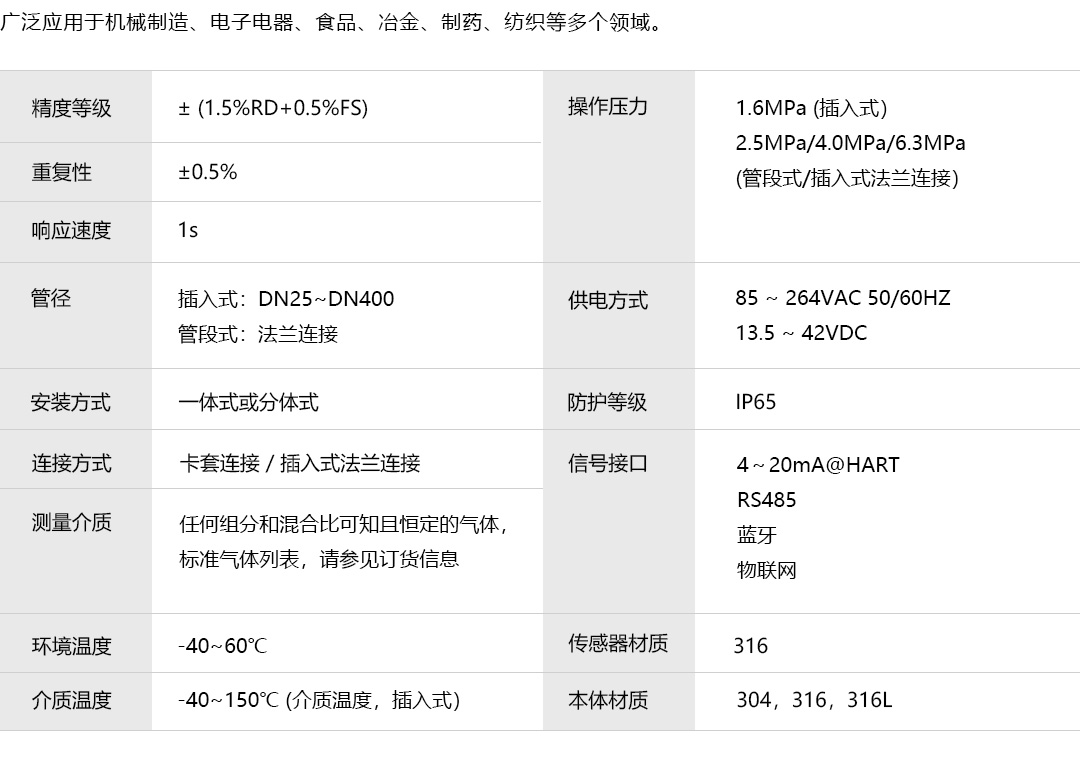

Technical Specifications
Widely used in machinery manufacturing, electronic appliances, food, metallurgy, pharmaceuticals, textiles and other fields.
| Accuracy level | ±(1.5%RD+0.5%FS) | Operating pressure | 1.6MPa(Plug-inPlug-in type) |
| Repeatability | ±0.5% | (Pipe Segment/Insertion Flange Connection) | |
| Response Speed | 1s | ||
| Pipe Diameter | Insertion Type:DNPower supply method | 85~264VAC 50/60HZ 13.5~42VDC |
|
| Installation method | Integrated orSplit | Protection level | IP65 |
| Flange Connection / Insert Flange Connection | Signal Interface | 4~20mA@HART | |
| Measurement Medium | Any gas with known and constant composition and mixing ratio, For a list of standard gases, please refer to the ordering information |
RS485 Bluetooth Internet of Things |
|
| Ambient Temperature | -40~60℃ | Sensor Material | 316 |
| Medium Temperature | -40~150℃(Medium Temperature, Insertion Type) | Body Material | 304, 316, 316L |
