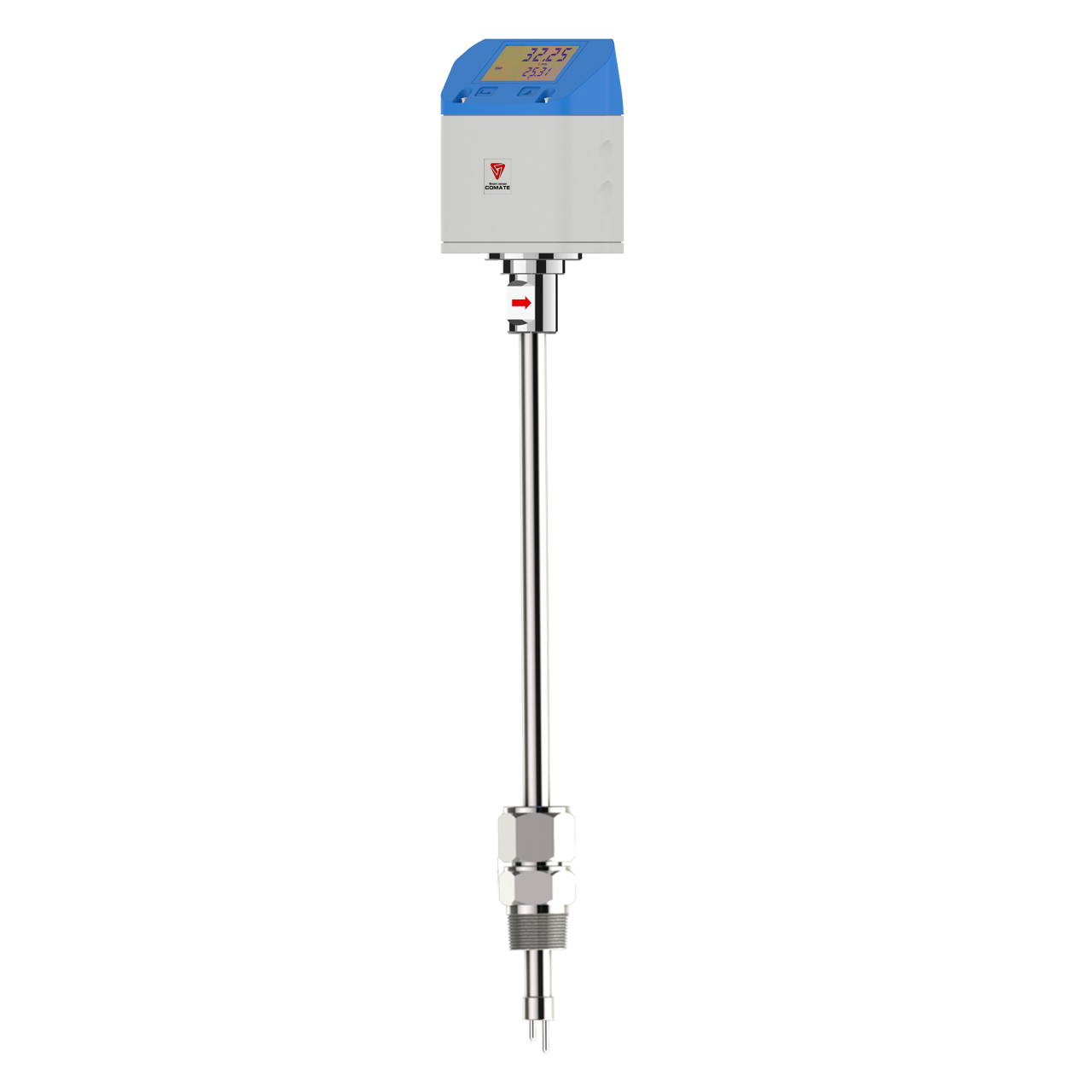

TGF410 Series Thermal Gas Mass Flowmeter
Description
The accuracy of TGF410 flowmeter is (1.5% rd+0.5% fs). The range ratio is preset in the factory according to your application, with a minimum of 10:1 and a maximum of 1: 100, and can be adjusted on site within the calibration range.
Main Feature:
Simple installation, single-point insertion, 11 probe diameter, online installation under pressure.
The range ratio is at least 1: 100, which can extend a wider range and can be measured as low as 0.3 nm/s.
Intelligent self-diagnosis to reduce product maintenance costs
No moving parts, no blockage
Measure gas mass flow without temperature and pressure compensation, and support multiple communication modes (HART, Modbus-RTU).
Technical Specifications
| Accuracy Class | ± (1.5%RD+0.5%FS) | Media Pressure | 1.6MPa (Insert Type) |
| Repeatability | ±0.5% | Functional Interface | Pulse RS485 |
| Pipe Diameter | Insertion type: DN40~DN400 Pipe section type: DN25~DN300 4-20mA@H Bluetooth | ||
| Installation method | Integrated | Power supply method | 13.5~42VDC |
| Connection method | G1/2 ferruleConnection | Protection level | IP65 |
| >Measuring Medium | Air and Gases of Known Composition | Casing Material | PC |
| Ambient Temperature | -40~60℃ | Sensor Material | 316L |
| Medium Temperature | -25~50℃ (Normal Temperature Type) | Body Material | 304 (316L, etc., customizable) |
