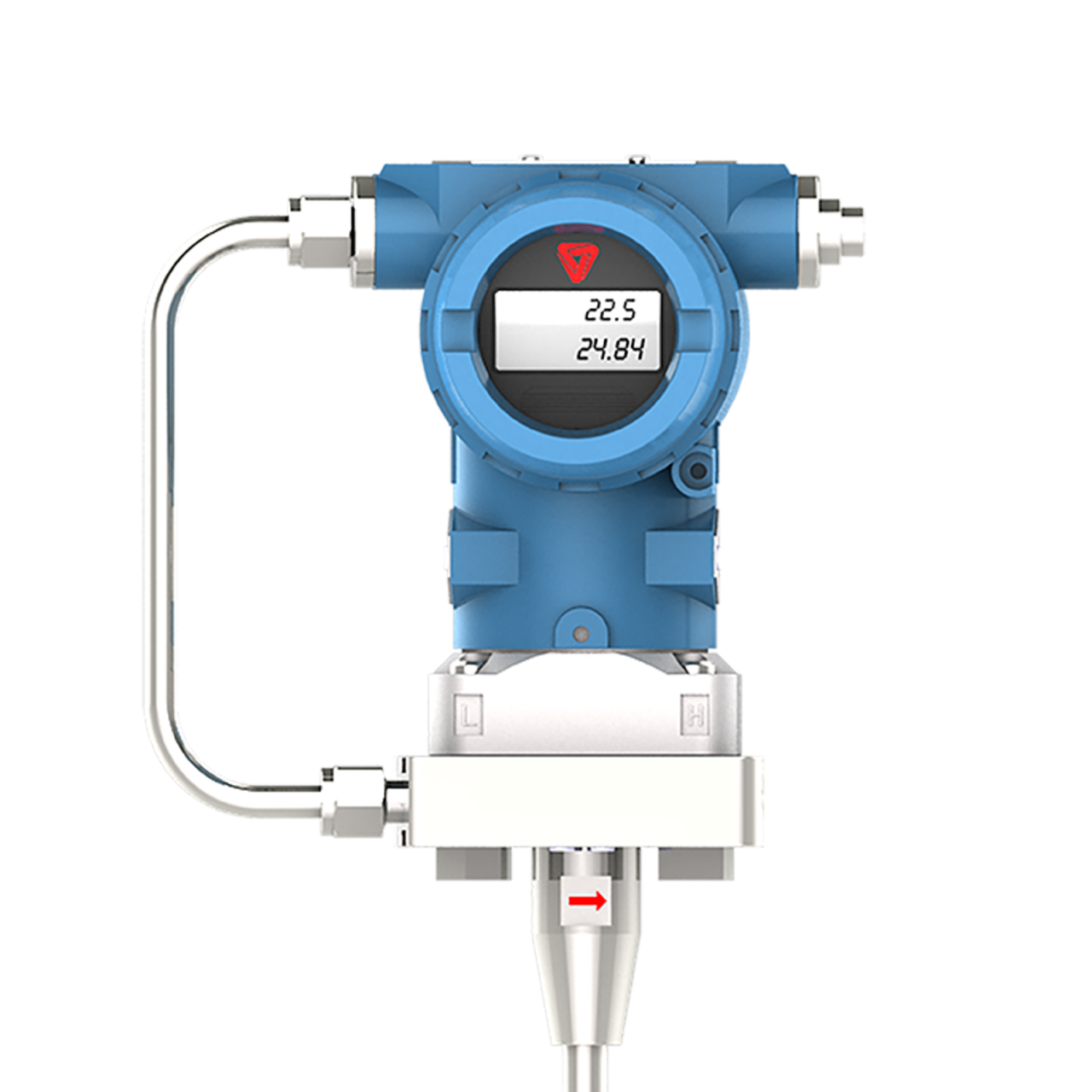

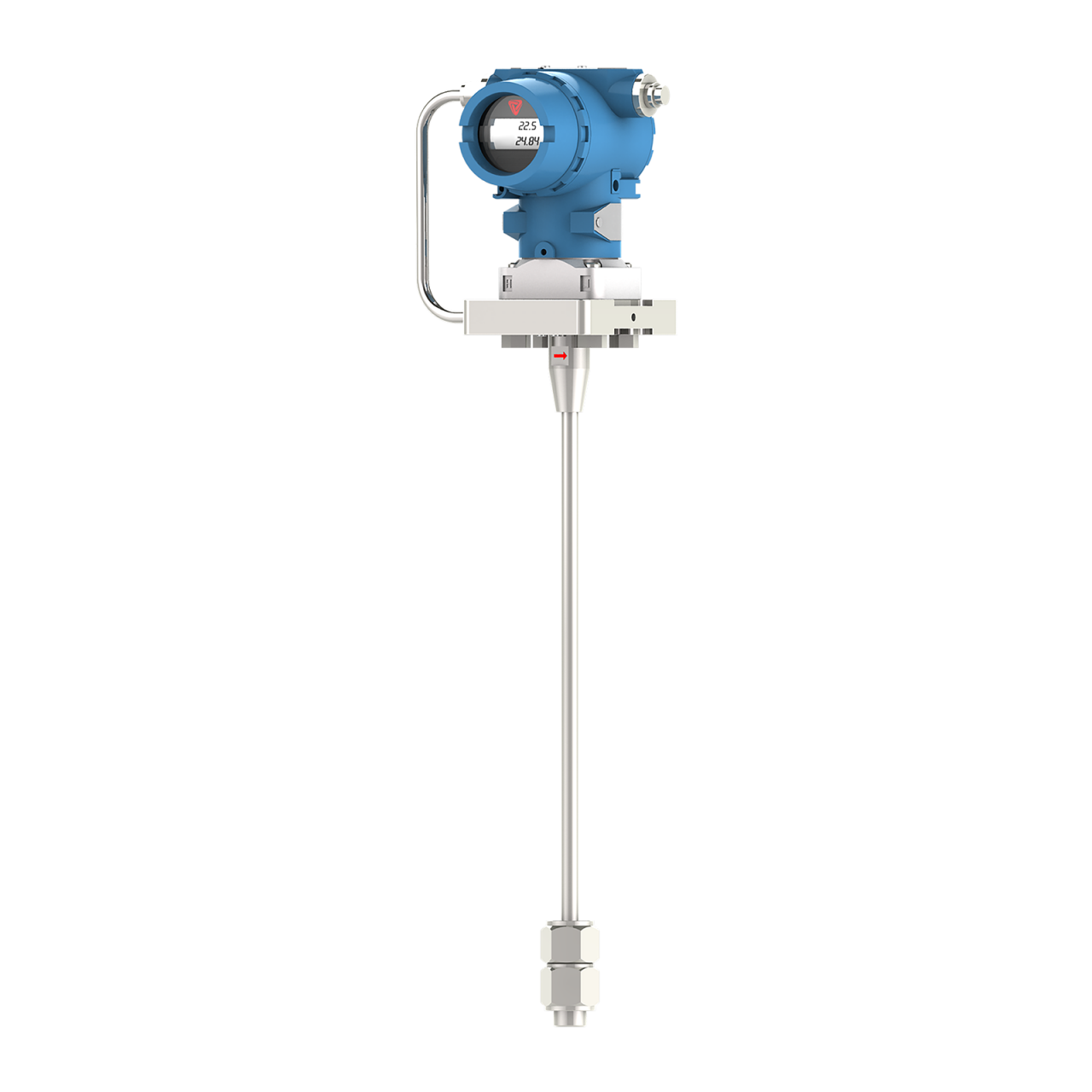

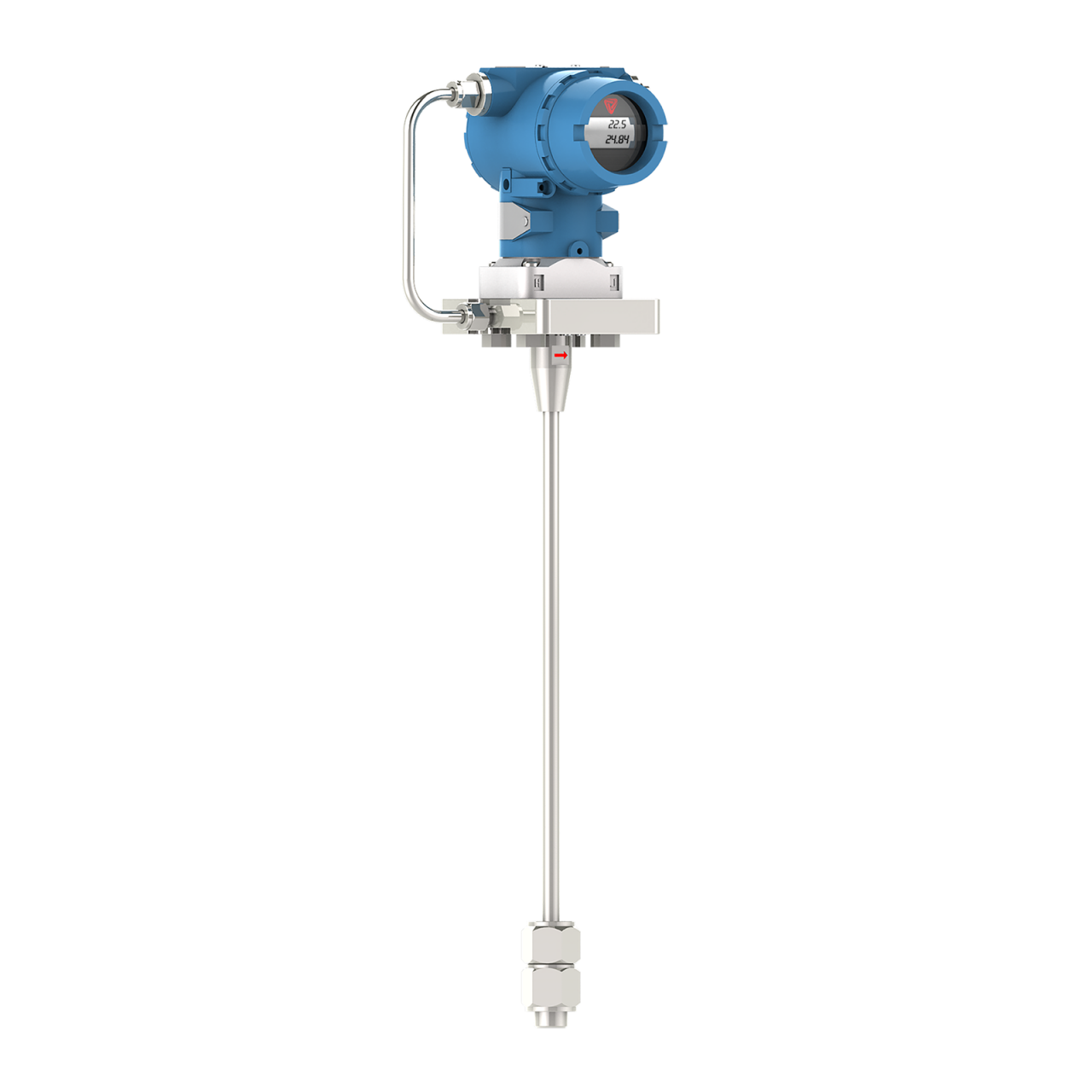

YUA PTF600 Differential Pressure Flow Meter – Remote monitoring
Description
The remote monitoring version of PTF600 series differential pressure flowmeter can upload relevant data such as flow, pressure, temperature, specific power and unit energy consumption to the information service platform through wireless transmission. Through the information service platform, customers can monitor the operation status of the air compressor at any time and anywhere, find the abnormal situation at the scene in time, and trace the measured data in the past time.
Main Features
Compressed air flow measurement
Measurement is not affected by condensed water.
Applicable pipe size 1 “to 16” (other diameters are specially customized)
Plug-in design, which can be easily installed with pressure through ball valve.
With Bluetooth communication, you can operate and read data through the mobile APP.
Remote monitoring, monitoring the specific power of air compressor anytime and anywhere.
Automatic temperature and pressure compensation, which can measure standard temperature and pressure flow and FAD flow.
No moving parts, no pressure loss
Fully isolated electrical structure completely filters out external interference.
Wide input range of power supply voltage adapts to various complex power supply environments.

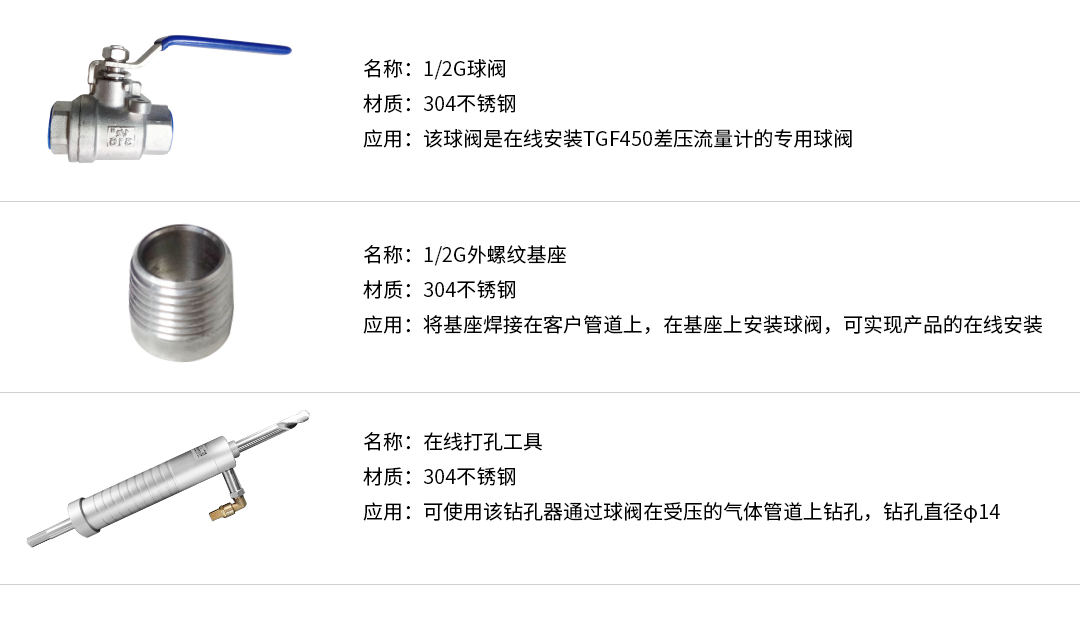

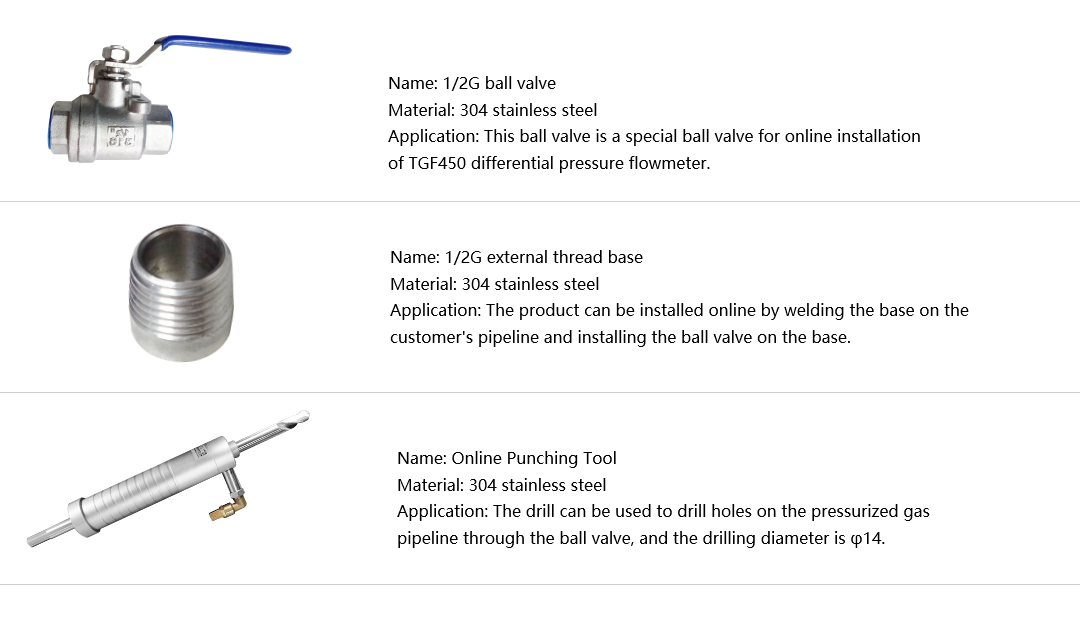

Accessories

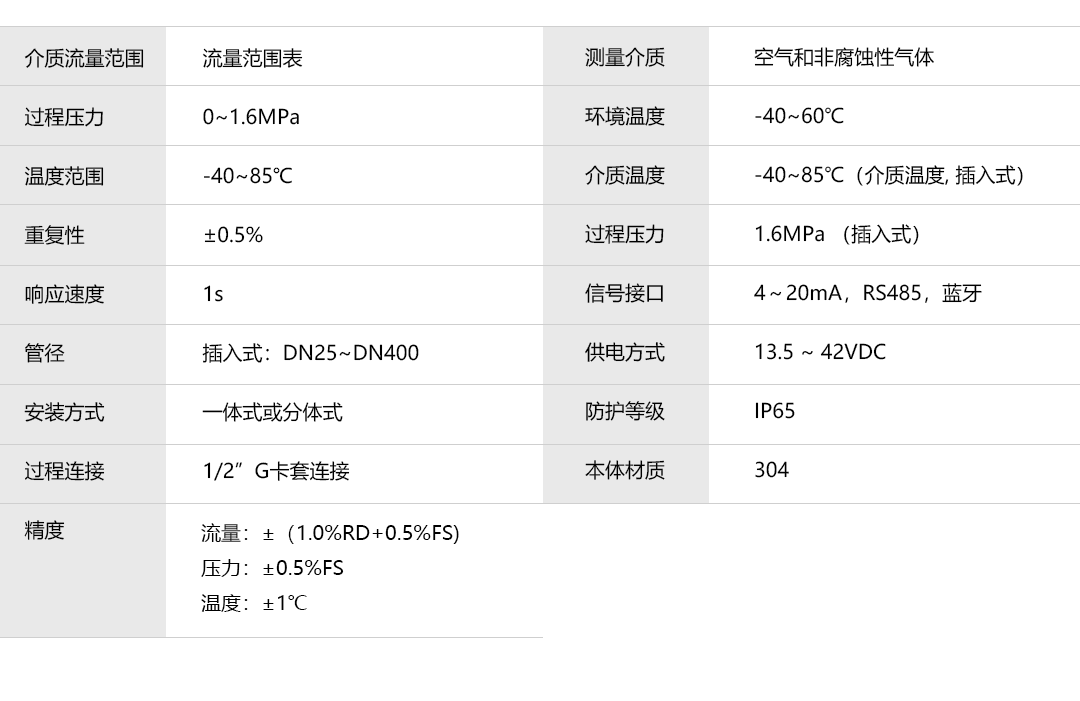

Technical Specifications
| Medium Flow RateRange | Flow Rate RangeTable | Measurement Medium | Air and Non-Corrosive Gases |
| Process Pressure | 0~1.6MPa | Ambient Temperature | -40~60℃ |
| Temperature Range | -40~85℃ | -40~85℃ (Medium Temperature, Insert Type) | |
| Repeatability | ±0.5% | Process Pressure | 1.6MPa (Insert Type) |
| Response Speed | 1s | Signal Interface | 4~20mA, RS485, Bluetooth |
| Pipe Diameter | Insert Type: DN >25~DN400 | Power Supply | 13.5 ~ 42VDC |
| Installation Method | Integrated orSplit | Protection Rating | IP65 |
| Process Connection | 1/2”G CardSleeve Connection | Material | 304 |
