YUA PTF570 series differential pressure flowmeter – Measurement of various gase

Targeted Precision Flow Measurement for Industrial Monitoring
The YUA PTF570 Series differential pressure flow meter is engineered specifically for manufacturing and process industries requiring accurate gas flow data. Designed for engineering teams and operations managers, this instrument ensures comprehensive measurement of both positive and negative gas flows. Its plug-in type installation enables seamless integration into existing systems without process interruption. As a reliable differential pressure flow meter manufacturer, our device supports on-site monitoring with enhanced versatility for gas compositions including wet air, addressing critical challenges in production efficiency and regulatory compliance.

Advanced Technical Specifications for Enhanced Measurement Accuracy
This differential pressure flow meter features a high-performance sensing system capable of detecting low flow rates with ±1.5% reading accuracy. It simultaneously measures flow, temperature, and pressure, improving data fidelity for precise analysis. The device supports pipe diameters ranging from 1” to 16” and operates under process pressures up to 1.6 MPa. Communication interfaces include Modbus RS485 and 4~20mA signals, facilitating integration with control and monitoring platforms. Its IP65 rating and robust stainless-steel sensor material ensure durability in diverse industrial environments. Such technical rigor aligns with the expectations of engineers and system integrators demanding dependable air flow meters.

Industry Applications and Operational Value Realization
The YUA PTF570 Series meets the demands of sectors such as chemical processing, energy management, and industrial gas utilities. Its ability to handle wet air flow measurement with automatic drainage reduces errors caused by condensation, enhancing operational reliability. Remote monitoring capabilities via 4G and internal networks enable timely maintenance and process optimization. The unit’s compact, lightweight design supports mobile field measurements and retrofit applications. By providing integrated real-time data on flow parameters, it plays a vital role in energy usage analysis, equipment diagnostics, and regulatory reporting, maximizing ROI for industrial end users from this differential pressure flow meter supplier.

Product Advantages

Innovative Design and Integration Features
The structural design of the YUA PTF570 Series differential pressure flow meter emphasizes modularity and ease of installation. Its plug-in type sensor allows digital insertion under pressure, minimizing downtime during deployment. The compact and lightweight construction simplifies handling and placement within challenging pipeline configurations. Constructed from 304 stainless steel with an IP65-rated housing, the device provides long-term mechanical reliability in corrosive and demanding environments. Integration compatibility with common industrial protocols ensures straightforward system interoperability. These factors collectively reflect the engineering insight characteristic of a reputable differential pressure flow meter manufacturer.

Superior Performance and Operational Efficiency
With high sensitivity for low flow detection and simultaneous measurement of multiple parameters, this flow meter delivers consistent, repeatable results critical for process control. The device’s 2-inch high-definition TFT color display facilitates immediate data visualization on-site. Remote communication options like 4G enhance usability by enabling real-time data collection and alarms, reducing manual inspection requirements. Additionally, the ability to accumulate both positive and negative flow volumes enhances monitoring versatility. Together, these functionality elements elevate operational efficiency and decision-making accuracy, proving valuable to end users relying on precise air flow meter data.

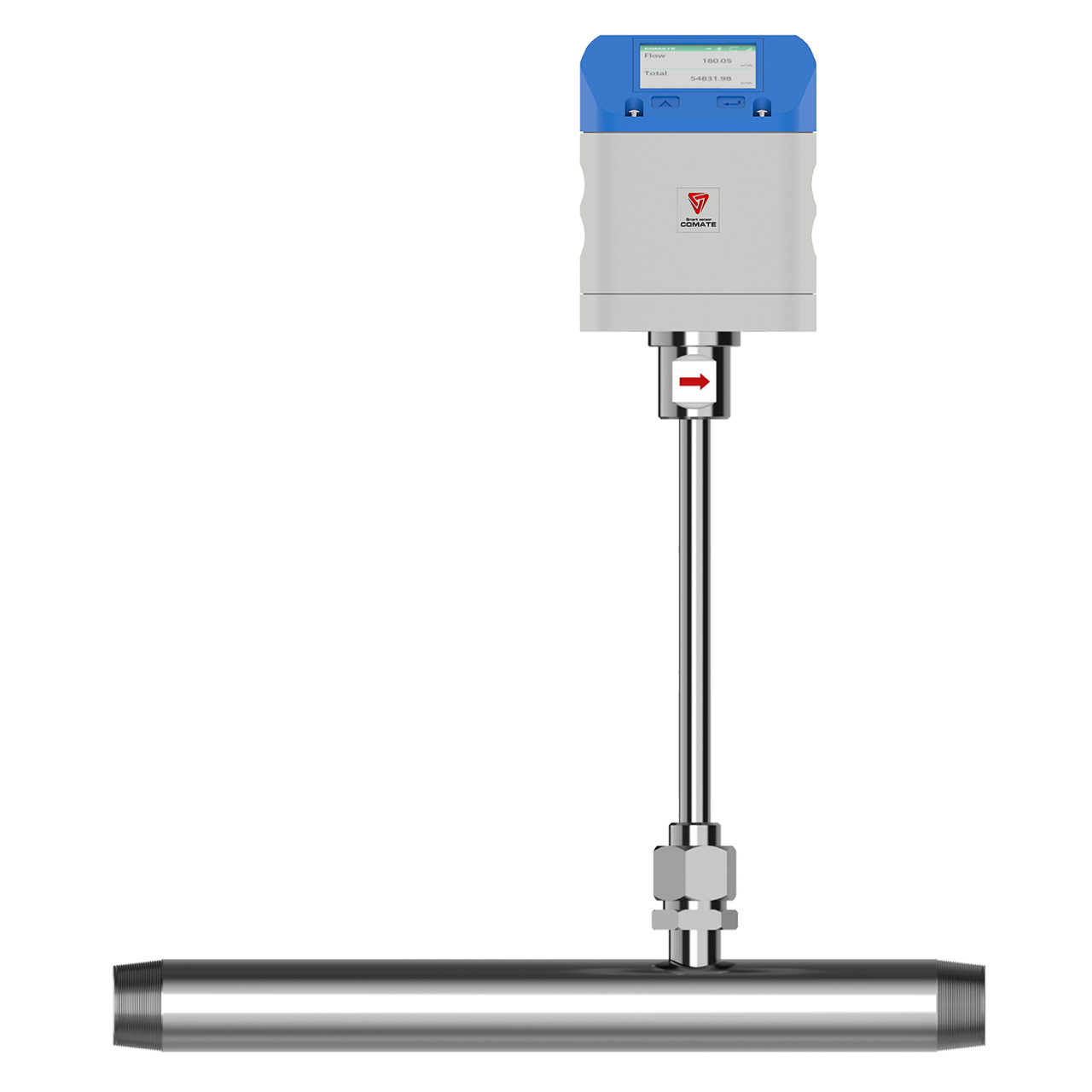

PTF570 series pitot tube differential pressure flowmeter measures flow according to differential pressure principle. The product adopts unique technology and design, which can be applied to the flow measurement of different gases on site.

Main features
Suitable for wet air flow measurement.
With automatic drainage function, the measurement is not affected by condensed water.
High sensitivity and low flow rate measurement
Simultaneous measurement of flow, temperature and pressure.
Both positive and negative flow rates can be accurately measured and accumulated.

2 “high definition TFT color display screen
Applicable pipe size 1 “~ 16”

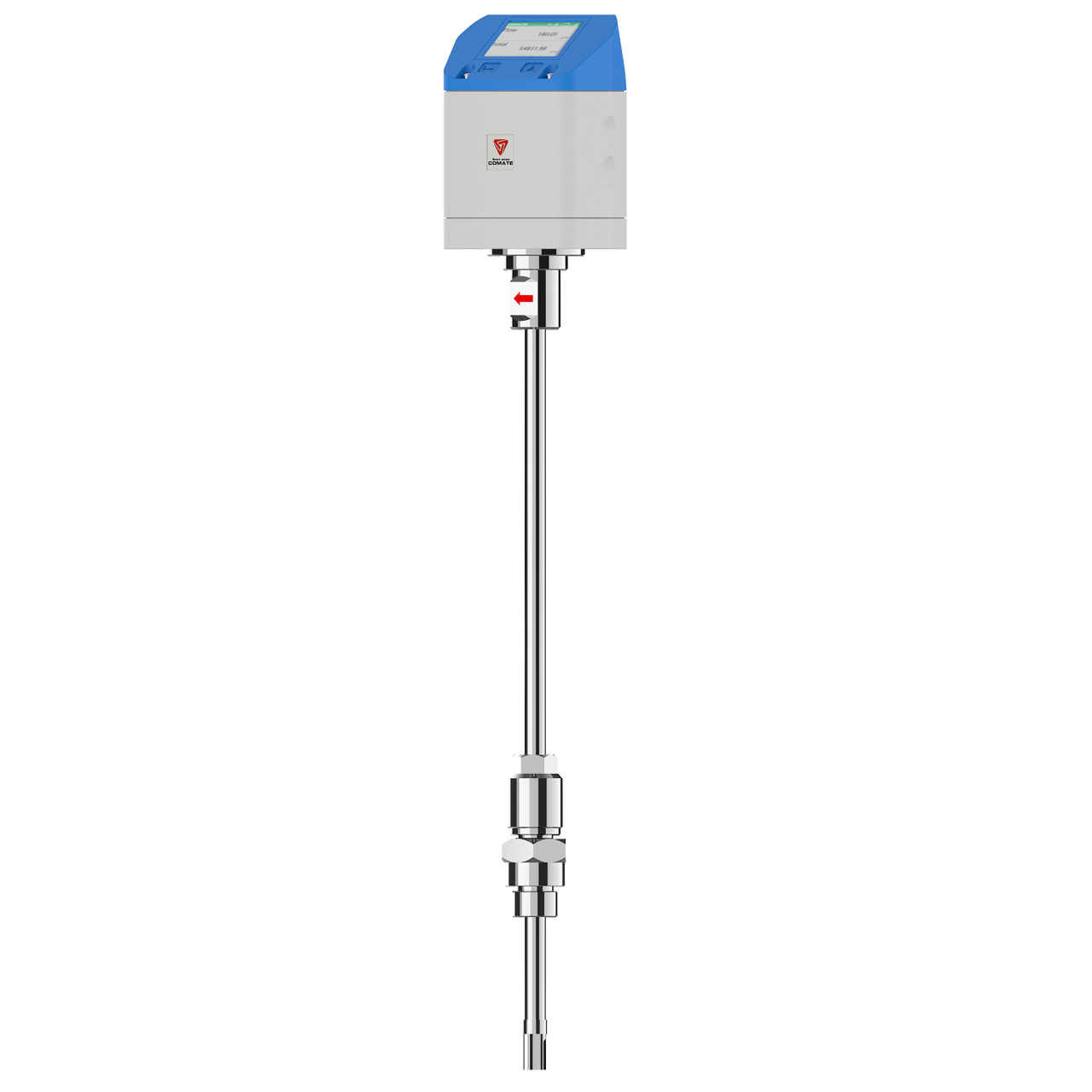

Plug-in type, which can be installed online under pressure.
Weighing only 1Kg, it is light, exquisite and easy to carry and install.

YUA provides customers with a complete metering and settlement system solution, which can realize accurate metering and prepayment settlement, and monitor key operating parameters (such as air compressor operation data, dew point, flow rate, temperature, pressure, etc.) in real time, so as to realize remote operation and maintenance management and improve efficiency. The system uses 4G stable access, and can also be deployed in customers’ internal networks to realize zero-cost operation.

Use Scenarios

Industrial Gas Flow Measurement and Monitoring
In chemical and manufacturing plants, the YUA PTF570 Series differential pressure flow meter plays a pivotal role in onsite gas flow measurement within industrial piping networks. It provides accurate flow data for non-corrosive gases, including compressed air, enabling process engineers to maintain system integrity and compliance with environmental regulations. Its design allows for installation without halting production lines, ensuring continuous monitoring. The meter’s data integration capability supports centralized control systems, simplifying operational management while mitigating risks associated with flow irregularities in critical gas supply lines.

Energy Efficiency and Compressed Air System Management
The deployment of this differential pressure flow meter supplier’s device in energy management systems facilitates detailed analysis of compressed air consumption. In manufacturing facilities where compressed air is a significant energy cost, real-time measurements of flow, pressure, and temperature enable optimization of system performance. The meter supports remote monitoring through 4G connectivity, allowing maintenance teams to diagnose inefficiencies proactively and prevent downtime. Integration with prepayment or metering networks also ensures accurate billing and cost allocation, enhancing transparency and operational budgeting accuracy for industrial energy managers.

FAQ

What gases can the YUA PTF570 Series Differential Pressure Flowmeter measure?
We design the YUA PTF570 Series differential pressure flow meter specifically to measure non-corrosive and non-flammable gases. This focus ensures accurate and safe monitoring for industrial applications involving air and other compatible gases.

Can the flowmeter be customized for different pipe diameters or materials?
Yes, our flowmeter supports insertion types for DN40–DN400 pipes and inline types for DN25–DN300. The sensor material is standard 304 stainless steel, but we can supply 316L or other materials on request to meet your specific industrial requirements.

Is it possible to install the flowmeter without interrupting ongoing processes?
Absolutely. The PTF570 features a plug-in type design allowing installation digital under pressure. This means you can install or replace the device without stopping your gas flow system, reducing downtime and operational risks.

How does your company support remote monitoring and device communication?
Our differential pressure flow meter includes 4G connectivity and supports internal network integration via Modbus@RS485, 4~20mA, and Bluetooth communication interfaces. This offers you real-time flow, temperature, and pressure monitoring remotely, enhancing data-driven decision-making.
