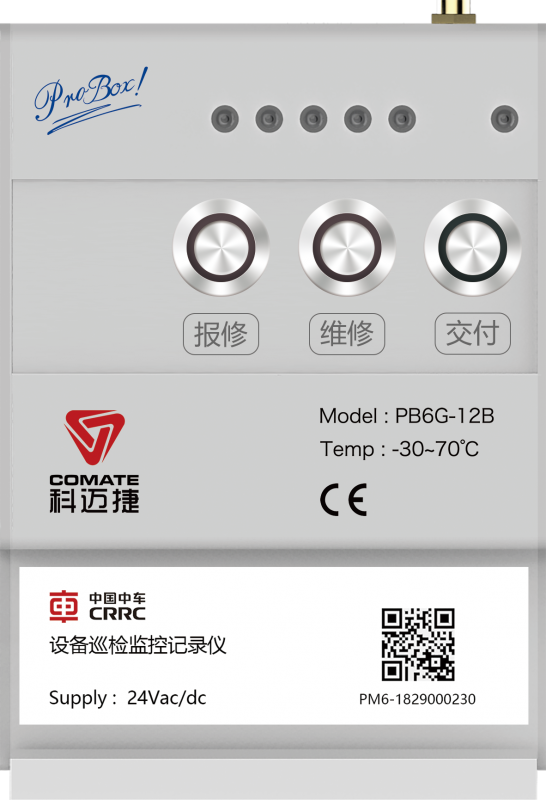

ProBox Data Collector

The equipment inspection monitoring system consists of “Equipment Inspection Monitoring Recorder” (ProBox hardware) and “Equipment Inspection Monitoring Data Platform” (Web + app). It realizes data transmission through GPRS communication and achieves the function of equipment inspection monitoring recording.

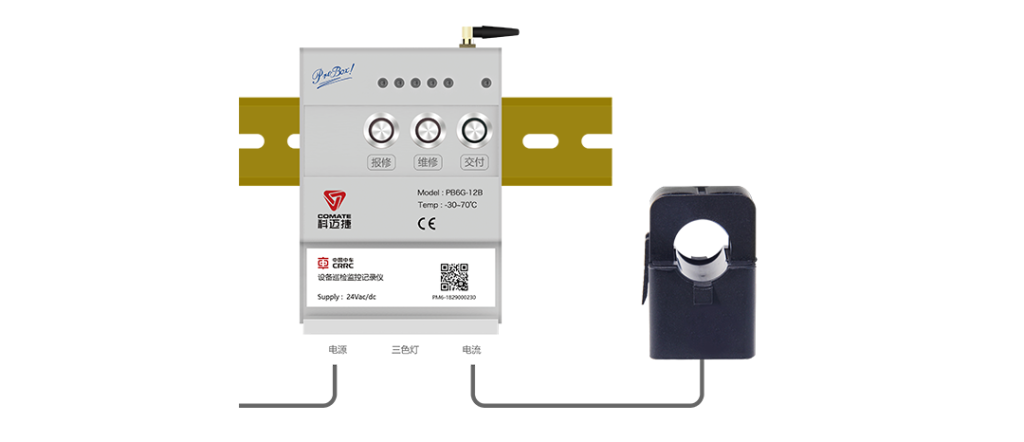

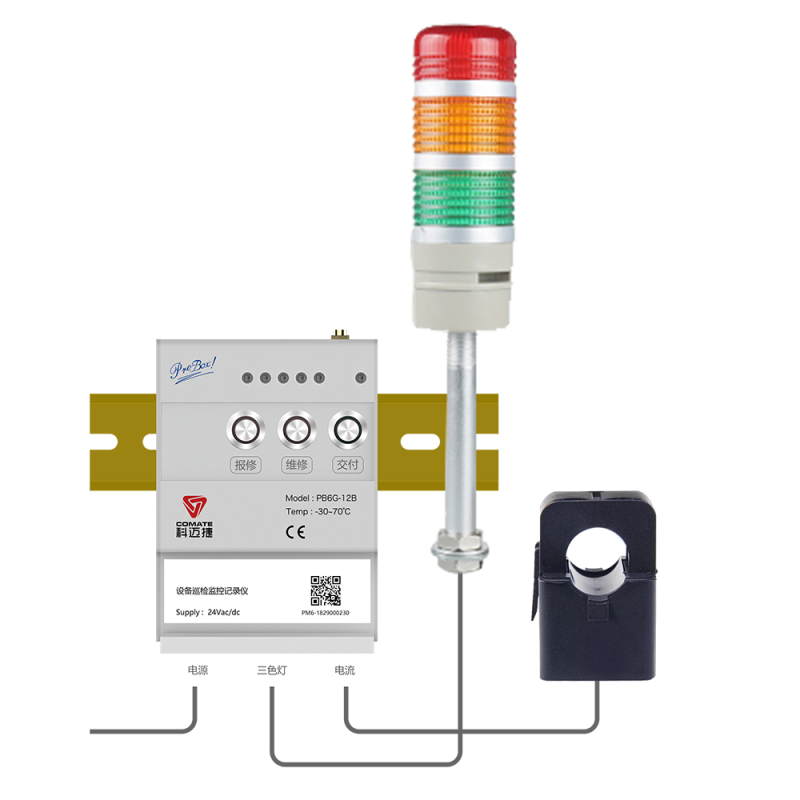

The hardware components of the equipment inspection and monitoring system consist of “Equipment Inspection Monitoring Recorder” (ProBox), industrial three-color lights, current transformers, and 35mm standard rails required for installation. During actual use, it is fixed to the daily operation part of the equipment to be monitored. This device requires a 24VAC/DC power input and connects the current transformer to any one of the power lines of the main motor A, B, or C of the equipment.

Main features
· Supports communication via mobile app
· IoT data upload
· Supports real-time monitoring and recording through computer-based application software
· Lightweight structure, easy to install
· Single current measurement
· LED indicator light
