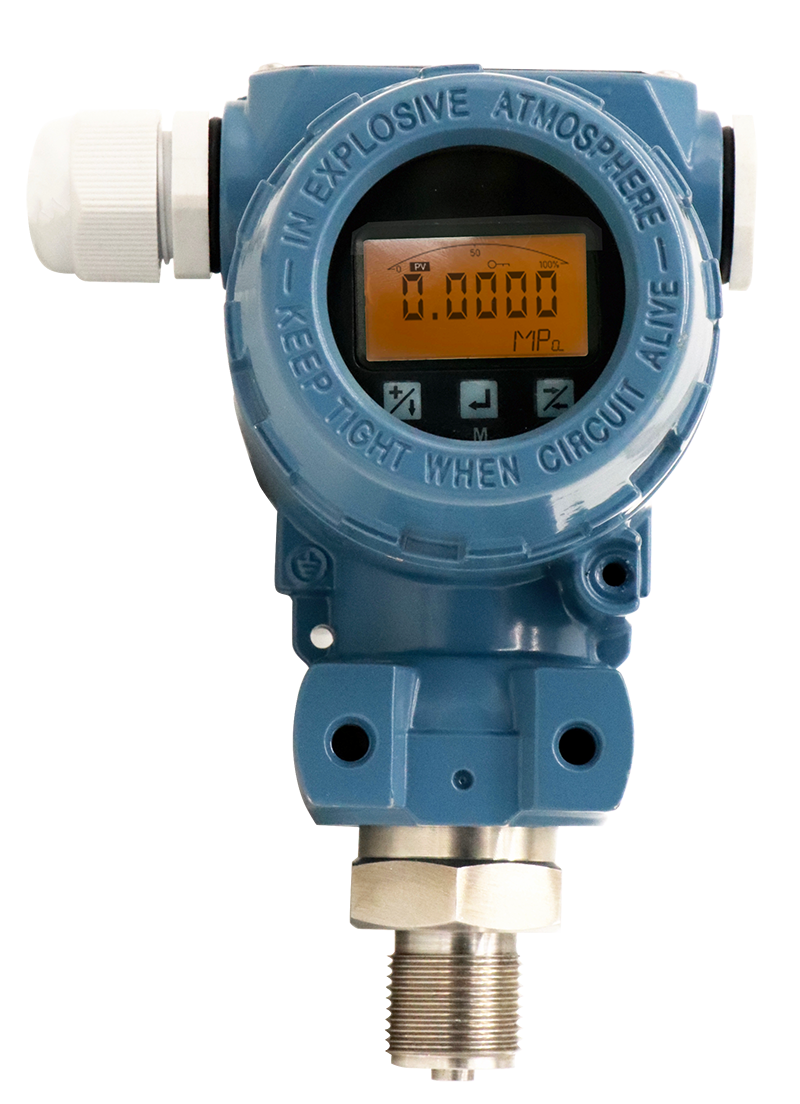

YUA Pressure transmitter – Multi-functional digital instrument
Description
The pressure transmitter is a multi-functional digital instrument. It is meticulously designed based on the advanced, mature and reliable silicon sensor technology, combined with advanced single-chip microcomputer technology and sensor digital conversion technology. It features a clear and simple interface operation function. The digital display can show pressure, percentage, and 0-100% analog indication. The key operation can conveniently complete the zero-point migration, range setting, damping setting and other basic parameter settings without a standard pressure source, greatly facilitating on-site debugging.
Technical Specifications
| Output Method | Two-wire 4-20mA or RS485 |
| Input Voltage | (10~36)V DC |
| Accuracy | ±0.2%FS |
| Operating Temperature | -40~85℃ |
| Temperature Resistance | -40~250℃(Optional -40~350℃)(Condensing Bend + Ball Valve) |
| Display | 34.1*22.7-segment screen |
| Working Pressure | 1.6Mpa (Optional pressure resistance 2.5Mpa/4.0Mpa/6.3Mpa) |
| Protection Rating | IP67 (can be >Select IP68) |
| Material | 304 Stainless Steel(316L optional) |
| Connection Method | M20*1.5 Threaded Connection (NPT1/2, G1/2 or M27*1.5 threaded interface optional) |
