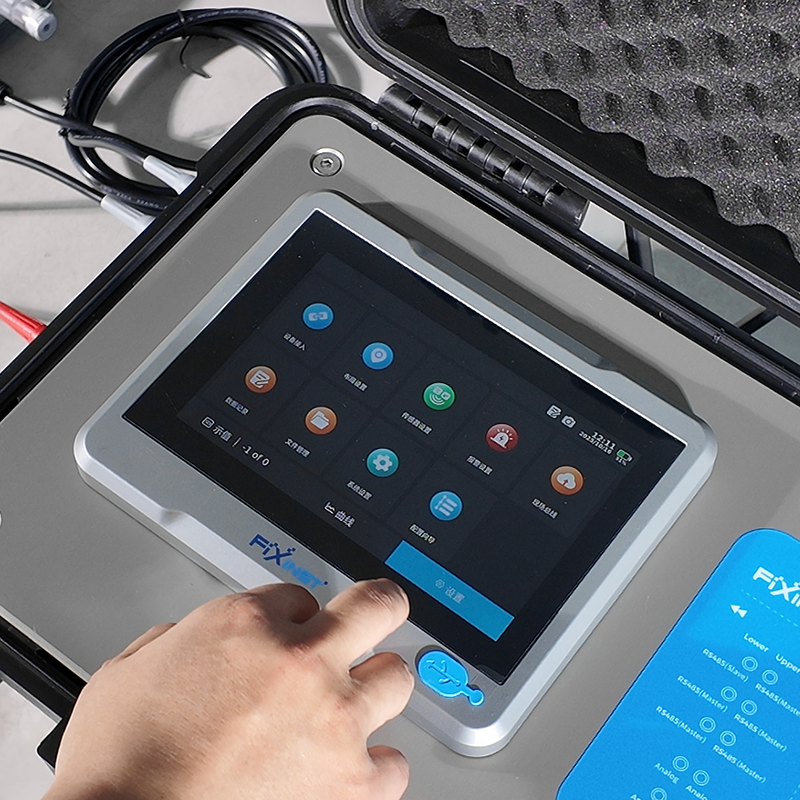

F351x-P Portable Multi-function display and data logger

7″ IPS touch LCD,
Connect up to 255 sensors.

Characteristics

F351x integrates multi-sensor data collection, display and logging functions, providing an economical solution for field instrument central control and process data analysis.

F351x collects and records several groups of sensor measurement data with various methods such as digital interfaces, analog interfaces and wireless transmission.The real-time data curves can be used to realize local data visualization and data integrationon the cloud. Analyze production process data from the trend view, accurately formulate production and process optimization plans, and efficiently complete daily equipment maintenance.

Based on the standard Modbus RTU protocol, F351x supports connection of third-party devices. With FixInst configuration software, field devices can be quickly configured.

Using a 7″ ultra-wide viewing angle touch LCD screen and a high-performance display platform, F351x has clear data display and smooth operation Supports up to 255 sensors access, local display, curve trend analysis and data recording.

Technical data

Typical installation

• On-site central control display and data curve plotting, effective analysis of process data
  (Option) with data logger, 3,000,000,000 values
• With 7″IPS ultra-wide viewing angle LCD, high resolution data display, easy and smooth operation
• Two isolated Modbus RTU (RS485) interface, supports up to 255 sensor inputs
• Support customized virtual devices (preset Pressure Drop, Calculation of Heat and Cold, Vacuum Flow, Gas-to-Power Ratio, FAD)
• (Option) Built-in Wi-SUN Master Node, supports connecting field
• FixInst sensors and third-party devices via wireless connection
• Standard Ethernet interface, supports LAN connection and data upload to the cloud
• (Option) 4G could platform gateway, support uploading data to cloud wirelessly
• IP65 protection, applicable to various industrial fields
