F307x Dewpoint & Pressure Multi-parameter portable monitor

Measurement Range：-110 … +60 °Ctd (selectable)

Product Advantages：Ultra-wide measuring range

Characteristics

The F307x series dewpoint meter can integrate a variety of the most advanced humidity sensors: polymer film capacitive sensors, ultra-fast response aluminum oxide sensors with innovative moisture sensitive materials and processes, and dual resonance QCM sensors with sensitivity at ultra-low dewpoint. These sensors provide F307x with the ability to accurately measure a wide range of dewpoints from -110 to +60 °Ctd. Revolutionary auto-calibration circuit design automatically compensates for circuit drift caused by temperature, contamination, and aging, providing long-term stability and high accuracy measurements. Innovative temperature compensation algorithm and multi-point temperature compensation calibration, greatly improving the sensor’s temperature drift and ensuring high-precision dewpoint measurement over a wide temperature range

Typical installation

• Compatible with various sensor technologies: polymer thin film, aluminum oxide, QCM crystal type sensors that can be used indifferent measuring ranges
• MEMS based pressure sensor for simultaneous monitoring of dewpoint and pressure
• 10+ points of dewpoint calibration and multi-point temperature compensation provide accurate measurements up to ±2 °Ctd (Refer to “Technical Data”)
• Built-in 135 Wh high-capacity lithium battery to avoid interruption of data recording due to accidental power failure
• Ultra-fast response time
• Outstanding long-term stability
• Anti-Condensation, resistant to particulate contamination, oil vaporand most chemicals
• High resistance to electrical disturbance
• 7.0″ Touch LCD screen, easy to operate, what you see is what you get

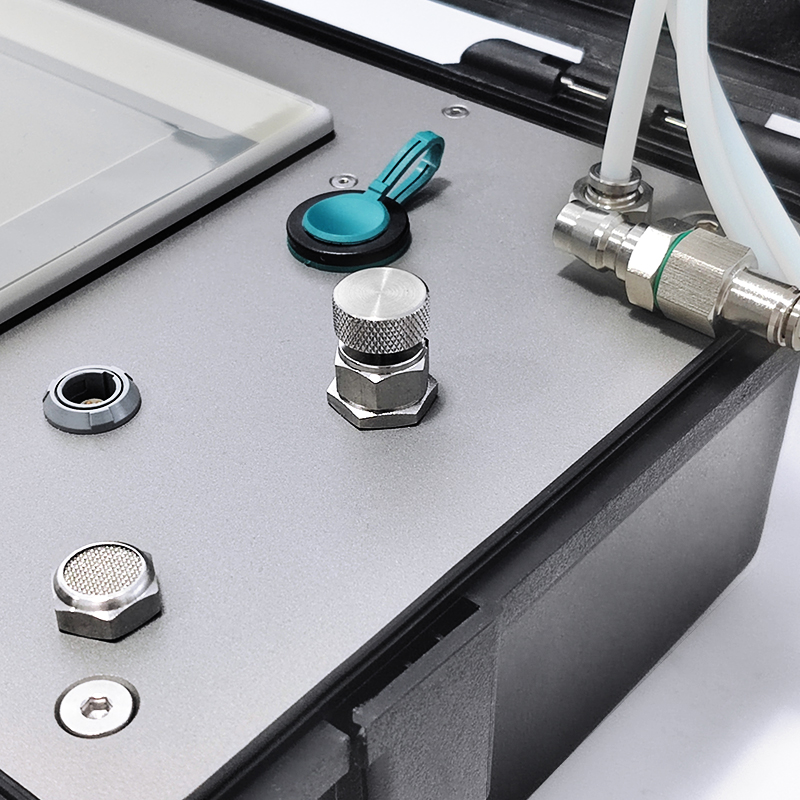

• Easy to install and view data, start measuring by connecting the gasvia a 6 mm quick connector
