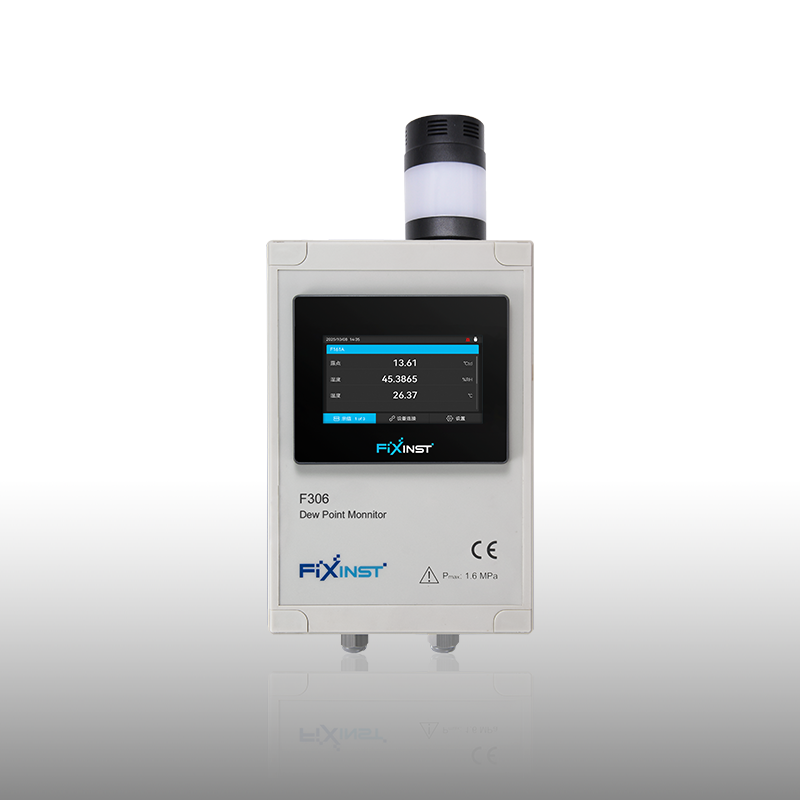

F306x Dewpoint & Pressure Multi-parameter Wall-mounted Monitor
Description
Measurement Range：-110 … +60 °Ctd
Product Advantages：Ultra-wide measuring range
Characteristics
The F306x series dewpoint meter can integrate a variety of the most advanced humidity sensors: polymer film capacitive sensors, ultra-fast response aluminum oxide sensors with
innovative moisture sensitive materials and processes, and dual resonance QCM sensors with sensitivity at ultra-low dewpoint. These sensors provide F306x with the ability to accurately measure a wide range of dewpoints from -110 to +60 °Ctd Revolutionary auto-calibration circuit design automatically compensates for circuit drift caused by temperature, contamination, and aging, providing long-term stability and high accuracy measurements Innovative temperature compensation algorithm and multi-point temperature compensation calibration, greatly improving the sensor’s temperature drift and ensuring high-precision dewpoint measurement over a wide temperature range
Typical installation
- Compatible with various sensor technologies: polymer thin film, aluminum oxide, QCMcrystal type sensors that can be used in different measurement ranges
- MEMS based pressure sensor for simultaneous monitoring of dewpoint and pressure
- 10+ points of dewpoint calibration and multi-point temperature compensation provide accurate measurements up to ±2 °Ctd (Refer to “Technical Data”)
- Ultra-fast response time
- Outstanding long-term stability
- Anti-Condensation, resistant to particulate contamination, oil vapor and most chemicals
- High resistance to electrical disturbance
- 4.3″ Touch LCD screen, easy to operate, what you see is what you get
- Dual-color alarm light and buzzer alarm
- Easy to install and view data, start measuring by connecting the gas via a 6 mm quick coupling
