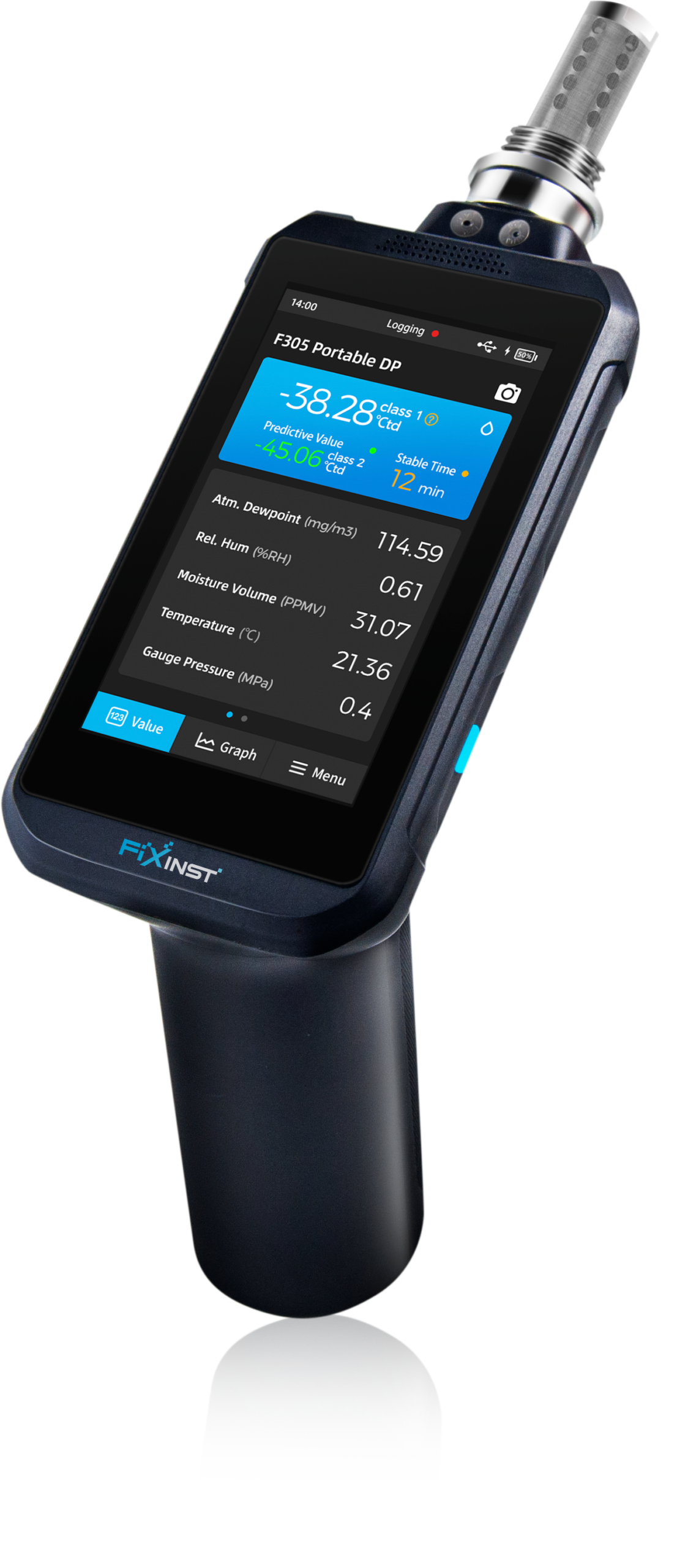

F305x Handheld dewpoint meter

Measurement Range：-110 … +60 °Ctd

Product Advantages：Display & Analysis; Ultra-wide Range; Innovative Technology; Handheld

Characteristics

The F305x handheld dewpoint meter is a handheld instrument that integrates dewpoint measurement, data analysis and recording. It is suitable for on-site inspection, working condition analysis and diagnosis, and can simultaneously measure temperature, pressure and humidity parameters. Integrating FIXINST-P polymer film capacitive sensor and FIXINST-A ultra-fast response Al2O3 sensor with updated moisture-sensitive materials and processes, enabling F305x to accurately measure a wide range of dewpoints from -110 … +60 °Ctd The dewpoint curve prediction algorithm quickly and accurately predicts the final stable value and time required, thus efficiently complete on-site inspections. Curve sparse and data recording functions, real-time sparse dewpoint, temperature, pressure and other data measurement curves, record on-site working condition data, and easily analyze gas state change trends The measurement chamber is equipped with a drying system that protects and dries the sensor when the instrument is not measuring, ensuring a quick response to the next measurement.

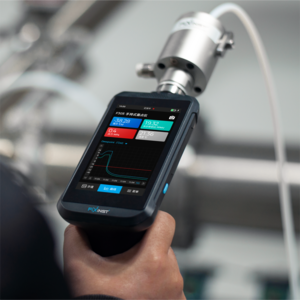

Typical installation

• Compatible with various sensor technologies: polymer thin film, aluminum oxide sensors that can be used in different measurement ranges
• MEMS based pressure sensor for monitoring dewpoint and online pressure simultaneously (Abs. pressure 0 … 1.7 MPa.a)
• Accurate to ±2 °Ctd with up to 10+ dewpoint calibration and multi-point temperature compensation (Refer to “Technical Data»)
• Dewpoint steady-state prediction helps customers predict the trend in advance to save waiting time
• Data logging and graphing
• Equipped with a dry measuring chamber to ensure ultra-fast response and high accuracy
• Outstanding long-term stability
• 4.3″ IPS wide viewing angle LCD with capacitive touch, data clearly displayed and user-friendly HMI

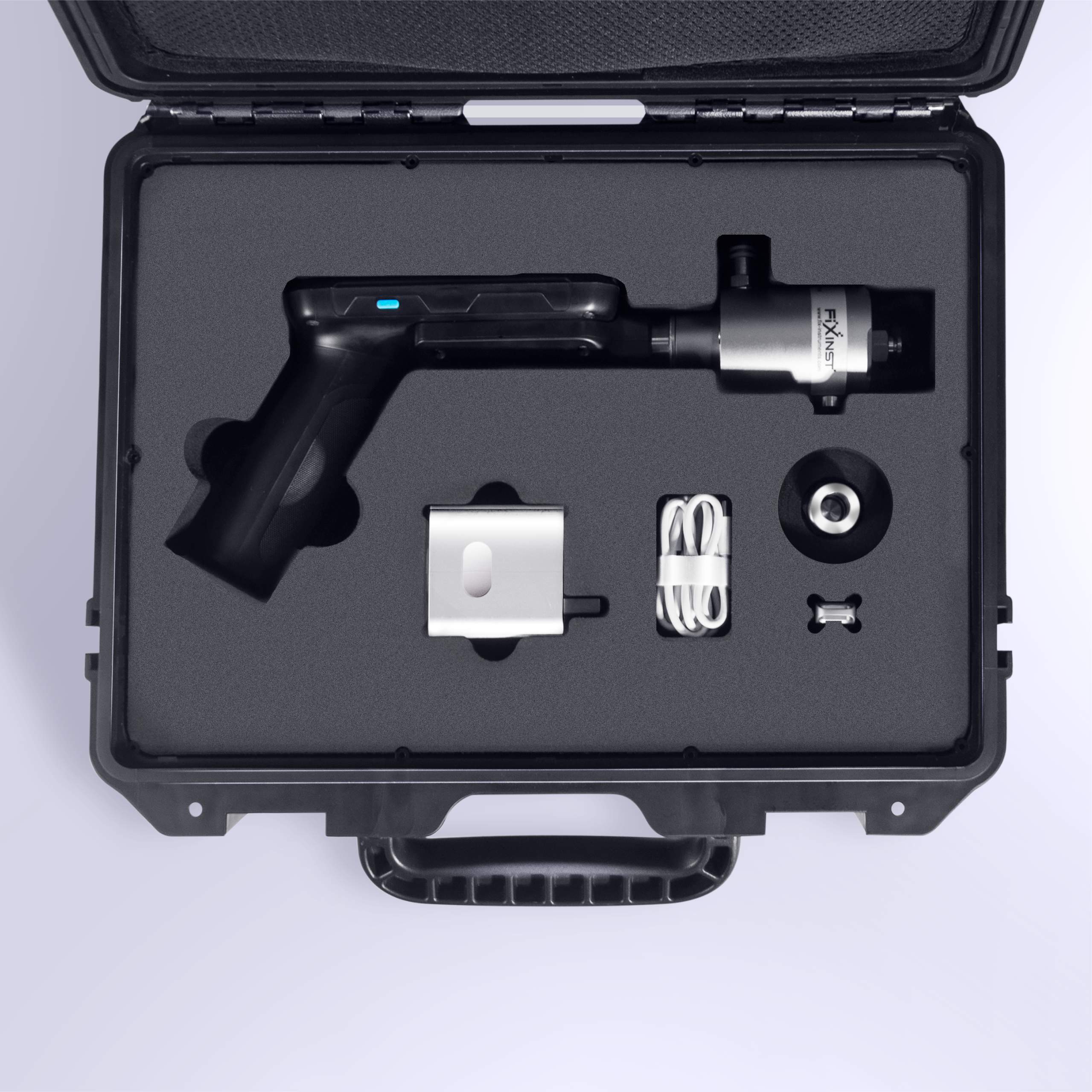

• Handheld so easy to use, start measurement by connecting the PTFE tube to the measuring chamber, no site restriction, nooperational technical difficulties
