F201x-W Pitot tube flow meter

Measuring Range：5 … 300 Nm/s
Turndown Ratio：1:60

Characteristics

Suitable for different pipe size: One flow meter can use in various diameter pipe
Install under pressure: Non-intrusive installation without downtime
Install at outlet of the compressor: Outstandingadaptability to working conditions
Powerful working condition adaptability: Applicable for most pipelines, avoding piperework

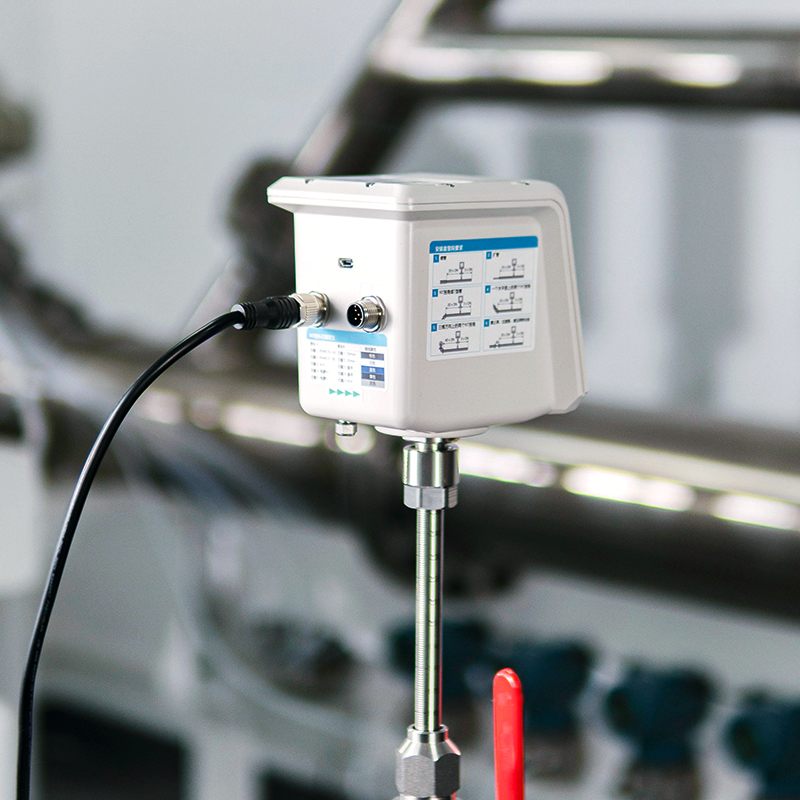

Typical installation

Applicable to the measurement of dirty and wet air, e.g. at the outlet of compressor
Super high sensitivity, the lower limit is down to 5 Nm/s
Bidirectional flow measurement
The fully isolated electrical structure can completely filter out field disturbance

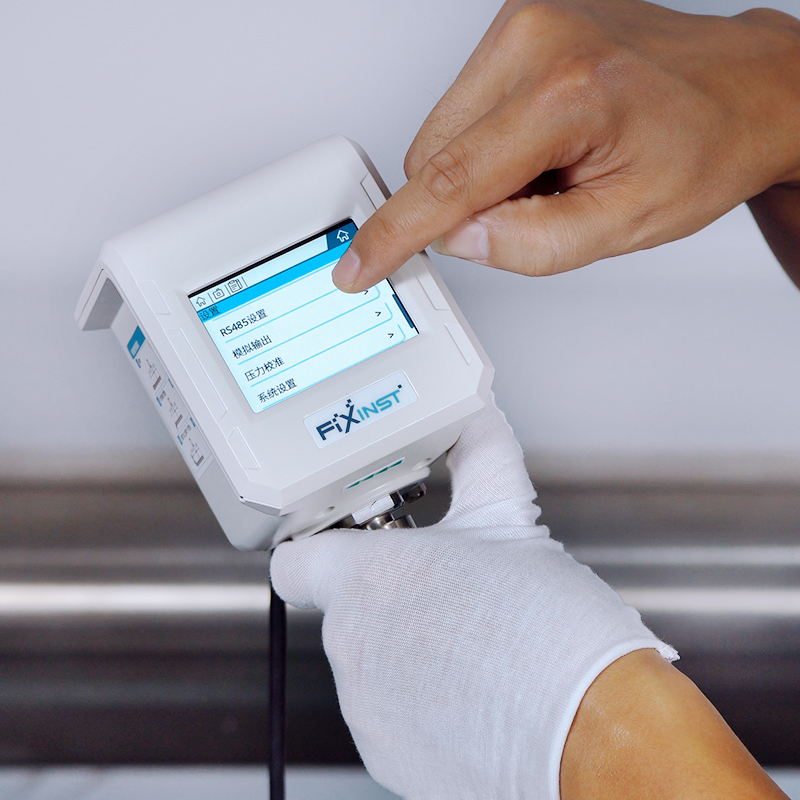

The capacitive touch 2.8″ IPS LCD with an ultra-wide viewing angle
No moving parts, low pressure drop
Data logging function with max. 10,000,000 values
Bluetooth function for wireless flowmeter configuration and data transmission
Standard Modbus RTU (RS485) interface, 4 to 20 mA current and pulse output
Insert type enables the flowmeter to be installed on different pipe dia. under pressure via 1/2″ ball valve

Performance:

Auto-drain: Pitot tube differential pressure measurement principle, which is usually limited by the influence of condensate, dirty air pollution and clogging. The F201x-W, as the new generation flow meter, has an Auto-Drain function; it can realize pollution resistance

Auto-heating: Accurate measurements in the moisture-saturated gas

Ultra-wide measurement range: The very low measuring limit which can reach 5 Nm/s, and turndown ratio 1:60

Online auto-calibration: Automatic compensates the impacts of temperature change, pressure change, and sensor pollution

Excellent vibration resistance: It is not affected by pipeline vibration
