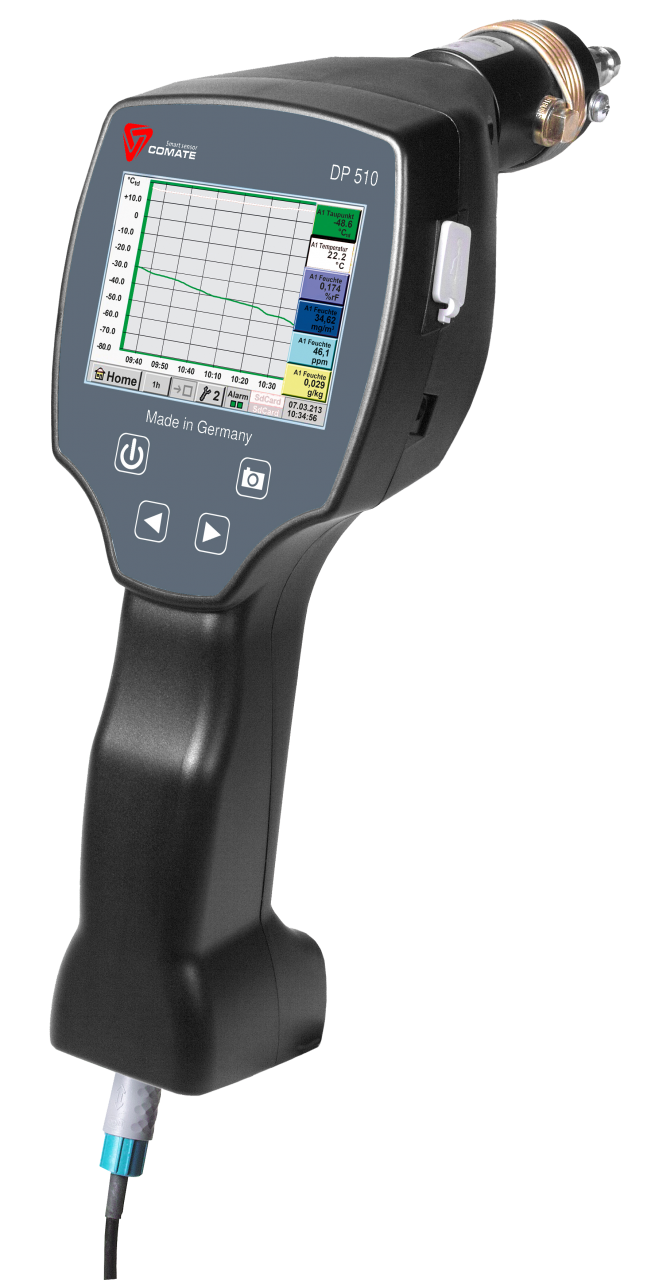

YUA DP510 Portable Dew Point Detector – Precise dew point measurement reaches -80°Ctd
Description
The DP510 is an ideal portable dew point measuring instrument, capable of measuring all types of dryers and capable of measuring the lowest dew point at -80°Ctd. Its unique color measurement curve provides an intuitive display of the current dew point and its change curve, allowing for long-term monitoring of the dryer’s operation. Up to 100 million measurement values can be stored, along with the date and measurement point name. Measurement data can be transferred to a computer via a USB drive. The exclusive “snapshot key” is designed to save measurement values, measurement curves, and other files online. The color measurement curve data can be sent via email or integrated into a service report. Using the snapshot key, current screen data can be accessed in image format and can be printed or edited using a computer without the need for additional software.
Main Characteristics
·Precise dew point measurement reaches -80°Ctd
Data can be exported via USB.
Special interface for rapid response time, for third-party sensors to connect to
· 3.5-inch touch screen, easy to operate
·Wide power supply voltage input range, suitable for various complex power supply environments· 2G storage space, capable of recording each measurement result
· Internationalization: Up to 8 languages are available for selection
· Various display units: g/m³, mg/m³, ppm, v/v, g/kg, °C, t atm, %RH

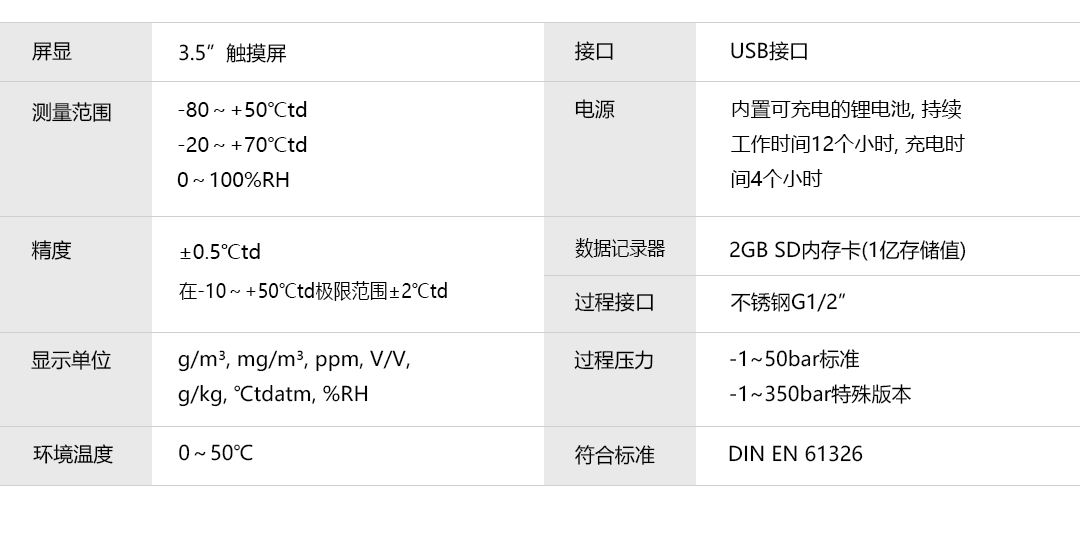

Technical Specifications
| Screen Display | 3.5” Touchscreen | Interface | USB Interface |
| Measurement Range | -80~+50℃td -20~+70℃td 0~100%RH |
Power Supply | Built-in rechargeable lithium battery, continuous working time 12 hours, charging time 4 hours |
| Accuracy | ±0.5Ctd Within the -10~+50Ctd limit range ±2Ctd |
Data Logger | 2GB SD Internal Memory Card (100 Million Values) |
| Process Interface | Stainless Steel G1/2” | ||
| Display Units | g/m³,mg/m3, ppm,V/V, g/kg, Ctdatm, %RHProcess Pressure-1~50barStandard -1~350bar Special Version |
||
| Ambient Temperature | 0~50℃ | Compliant with Standards | DIN EN 61326 |
