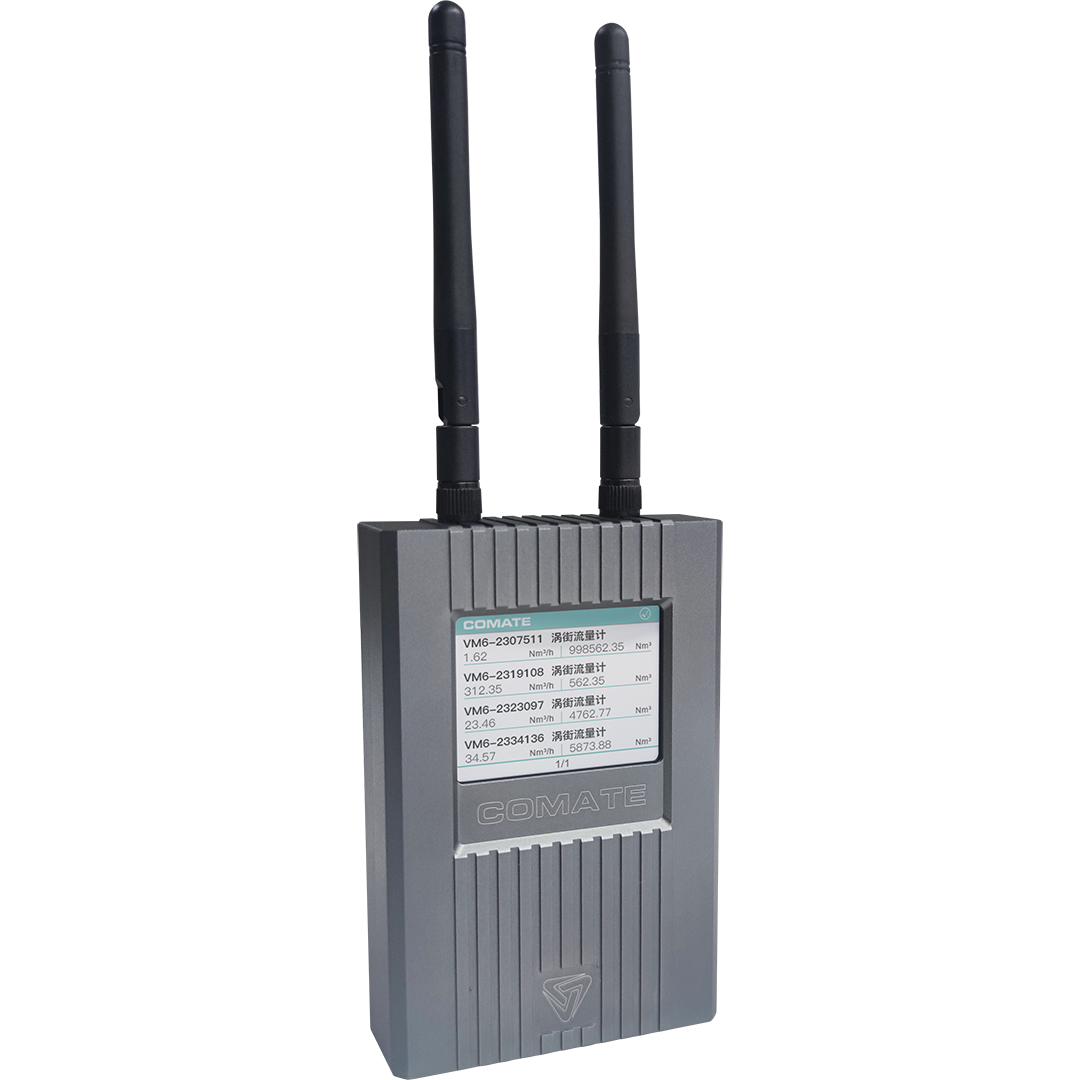

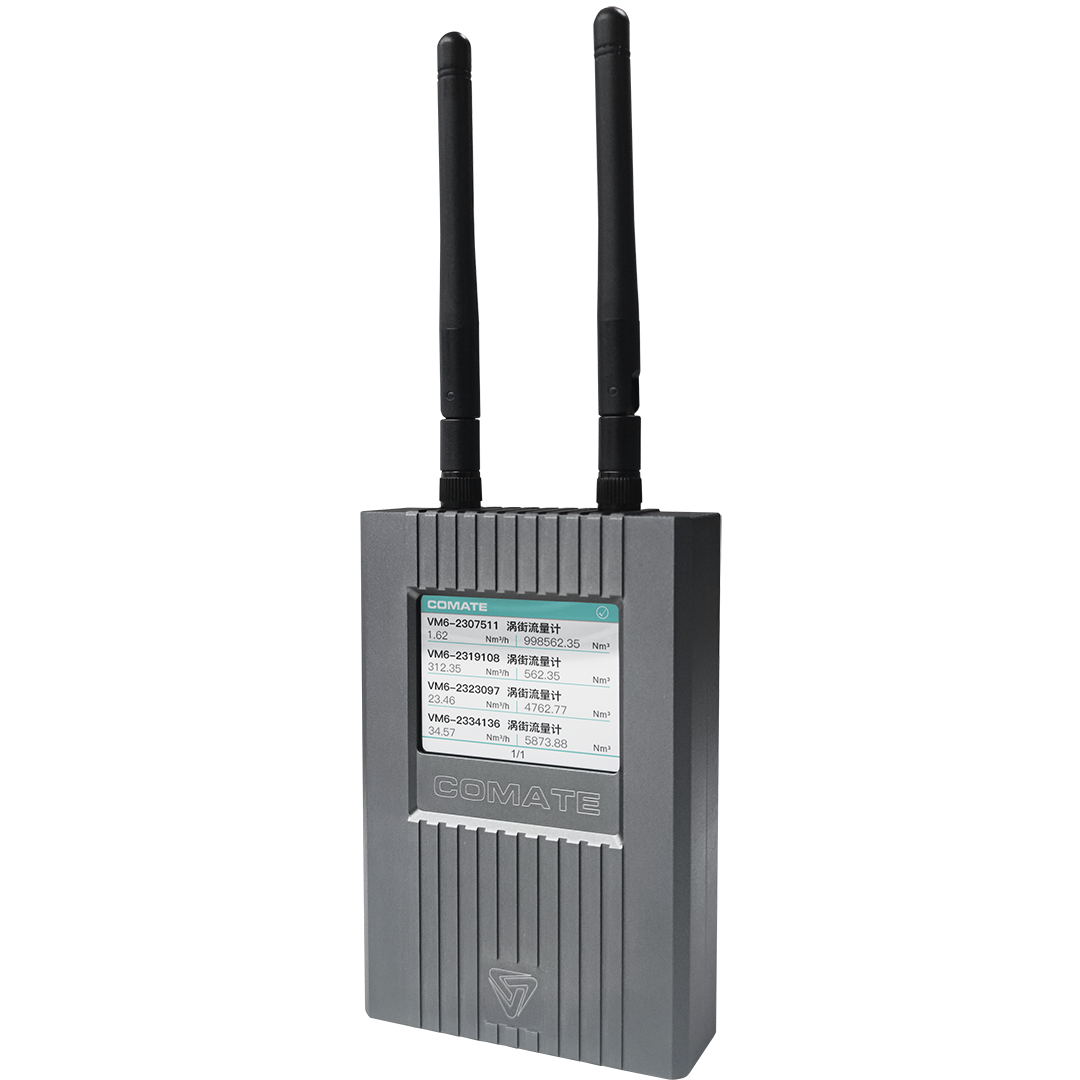

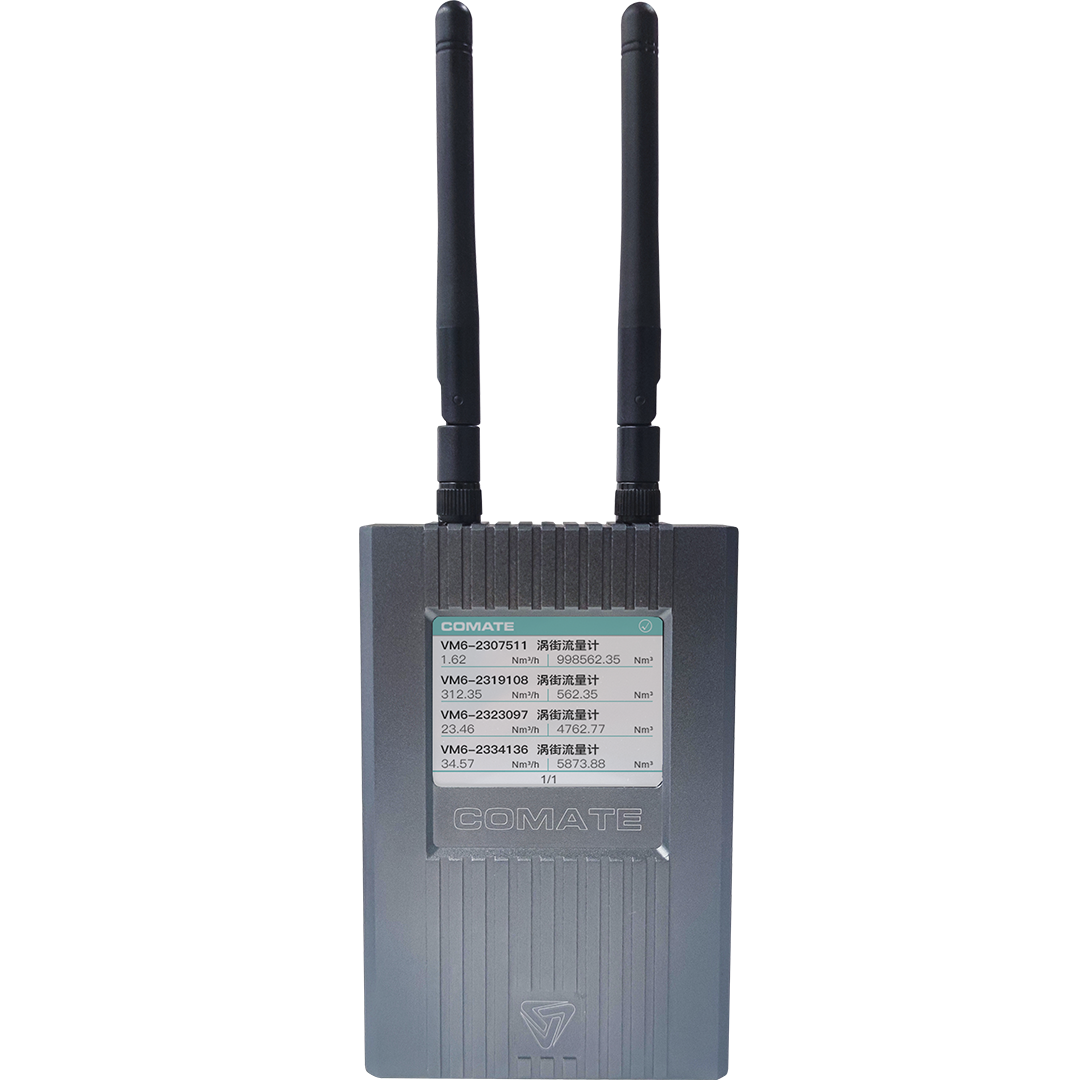

ComPanel Data Recorder/Repeater

ComPanel is based on micro-power wireless transmission technology. Through the Bluetooth interface, it can collect instantaneous flow, cumulative flow, temperature, pressure and other measurement data from up to 8 Kometech brand flow meters and record them in the internal memory. Users can choose to copy the internal stored data to a USB2.0 type C interface USB drive. ComPanel can be configured with a 6000mAh battery to enable device search or short-term operation without an external power source. When networked transmission based on ComPanel is carried out, ComPanel communicates with DS600 using the LoRa wireless transmission protocol. ComPanel can also work in relay mode according to the networking requirements, collecting sensor data from Kometech brand and completing LoRa data relay, achieving device system networking.

Main features
· Supports wireless multi-device data collection
· Built-in rechargeable battery, convenient for on-site use
· Data stored internally can be exported via USB 2.0
· Based on wireless transmission interface, no physical connection required
· Data sampling rate as low as 1 second, with built-in 1GB storage space
· 2.4-inch high-resolution touch LCD screen, displaying data from all collected devices
