YUA CAE820 Compressed Air Energy Efficiency Analyzer – Data Collector,Online drilling tool
Description
The measurement results are not affected by moisture and oil content. The plug-in design enables accurate measurement of the actual flow inside the pipeline without interrupting the gas supply, and it automatically calculates the gas consumption of the equipment. The system is equipped with a tablet computer, which directly displays all measurement data on-site and generates reports based on the data analysis. The system is also accompanied by safe and convenient online pressure-bearing drilling tools.
Main Characteristics
The measurement results are not affected by moisture and oil content.
Insertion-type design, without the need to stop the gas supply, accurately measures the actual flow rate in the pipeline, and automatically calculates the gas consumption of the equipment.

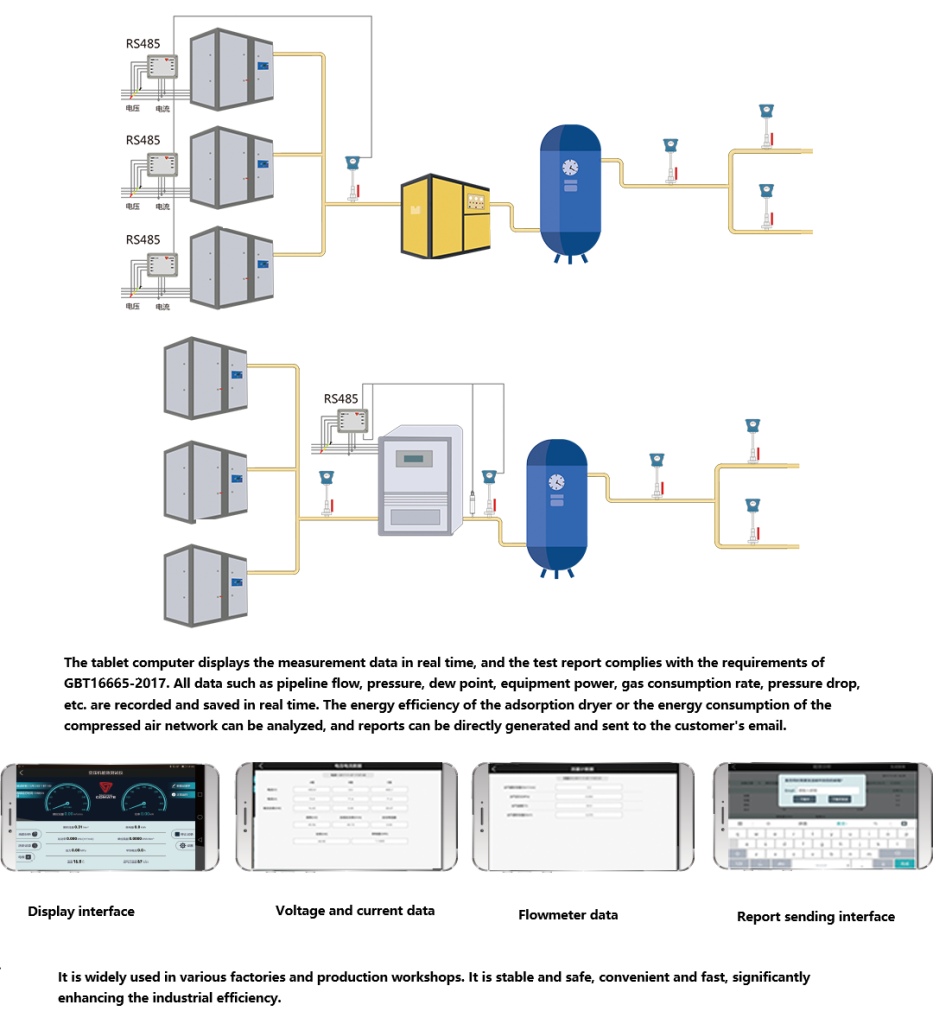

The system is equipped with a tablet computer, which can display all the measurement data directly on-site and generate reports based on the data analysis.

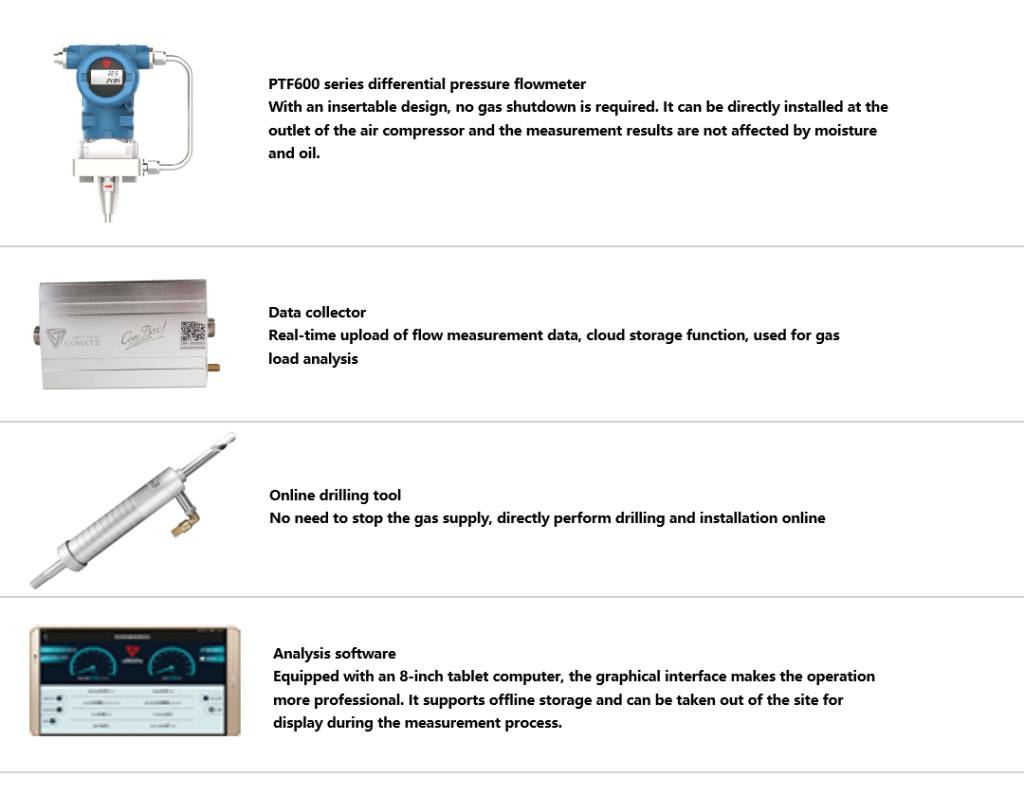

The system is equipped with safe and convenient online pressure-bearing drilling tools, enabling on-site installation of flow meters without interrupting the gas supply.
The measurement data of the entire system can be remotely monitored, making management easier.

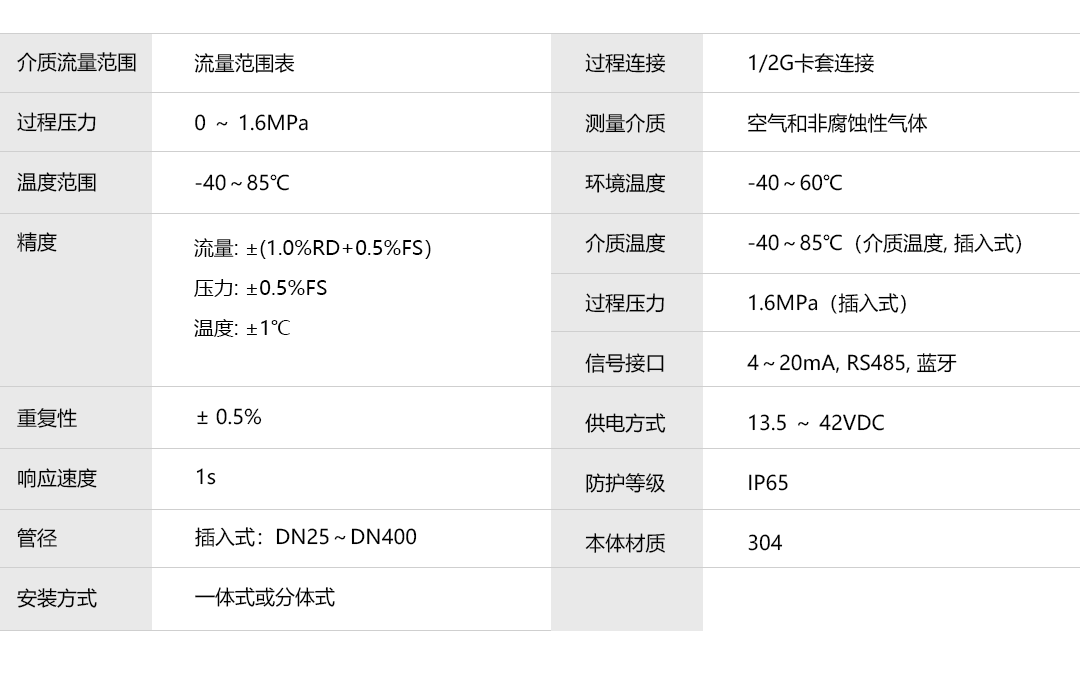

Technical Specifications
| Medium Flow Range | Flow Range Table | Process Connection | 1/2G Card Fitting Connection |
| Process Pressure | 0~1.6MPa | Measuring Medium | Air and Non-corrosive Gases |
| Temperature Range | -40~85℃ | Ambient Temperature | -40~60℃ |
| Accuracy | Flow Rate: ±(1.0%RD+0.5%FS) Pressure: ±0.5%FS Temperature: ±1℃ |
Medium Temperature | -40~85℃ (Medium Temperature, Insert Type) |
| Process Pressure | 1.6MPa (Insert Type) | ||
| Signal Interface | 4~20mA, RS485, Bluetooth | ||
| Repeatability | ±0.5% | Power Supply | 13.5 ~42VDC |
| Response Speed | 1s | Protection Rating | IP65 |
| Pipe Diameter | Insert type: DN25~DN400 | Main body material | 304 |
| Installation method | Integrated or separate type | ||
