CAE800 Compressed Air System Energy Efficiency Analyzer

Plug-in design, without the need to stop the gas supply, accurately measures the actual flow in the pipeline, and automatically calculates the gas consumption of the equipment; wide range ratio measurement power component, precisely measures the on-site power consumption situation, and supports high voltage measurement of 6KV and 10KV.
Main features

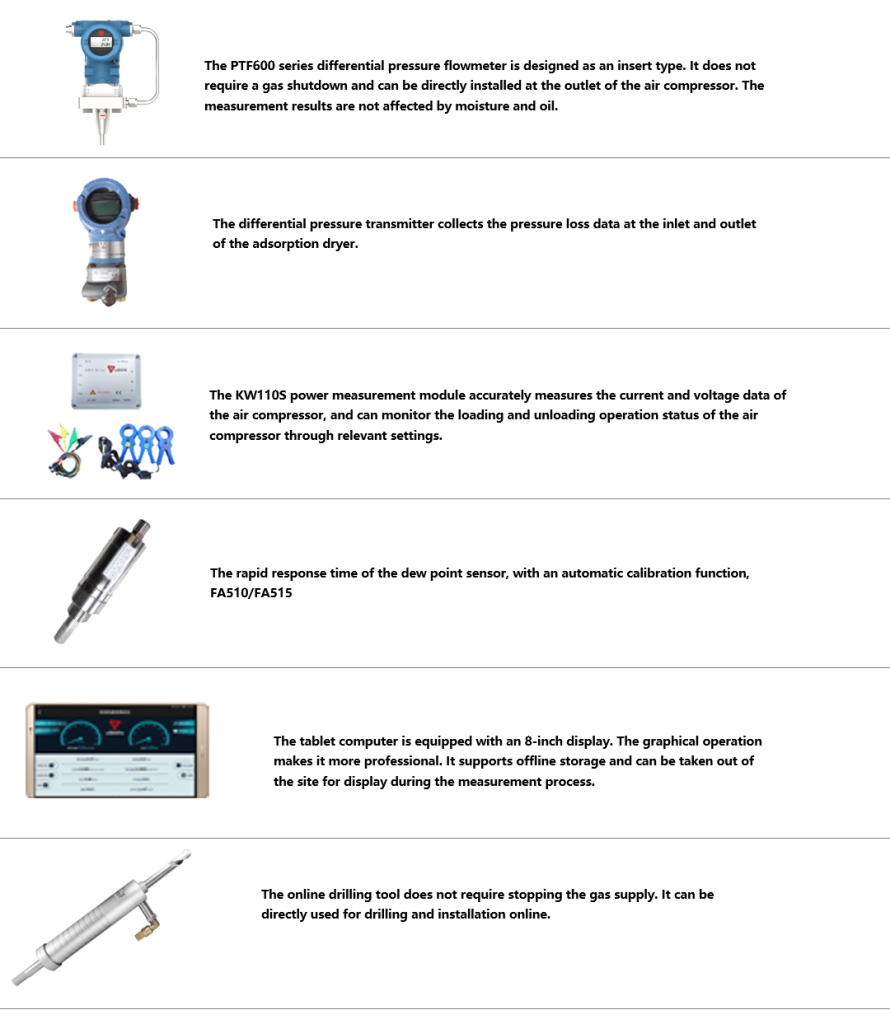

· Measurement results are not affected by moisture and oil content. · Plug-in design, no need to stop the gas supply, accurately measures the actual flow in the pipeline, and automatically calculates the gas consumption of the equipment. · Wide range ratio measurement power component, accurately measures the on-site power consumption situation, and supports 6KV & 10KV high voltage measurement. · Equipped with Komajie dew point sensor with fast response time and high stability. · System is configured with a tablet computer, directly displays all measurement data on-site, and generates reports based on data analysis. · System comes with a safe and convenient online pressure-bearing drilling tool to achieve online installation of flow meters without stopping the gas supply. · The measurement data of the entire system can be remotely monitored in real time, facilitating management without stopping the gas supply, and can be directly installed online. · The output complies with the requirements of GBT16665-2017 for energy efficiency test reports.

Equipped with a reliable and fast response time, high-stability Komagai dew point sensor; the measurement data of the entire system can be remotely monitored in real time, making management convenient.
