CAE350S Air Compressor Efficiency Tester

Installation of air intake, equipped with a complete set of variable-diameter hoses; on-site testing immediately generates a report; equipped with power meters and pressure transmitters; real-time data recording, automatically outputs energy efficiency analysis report.
Main Characteristics

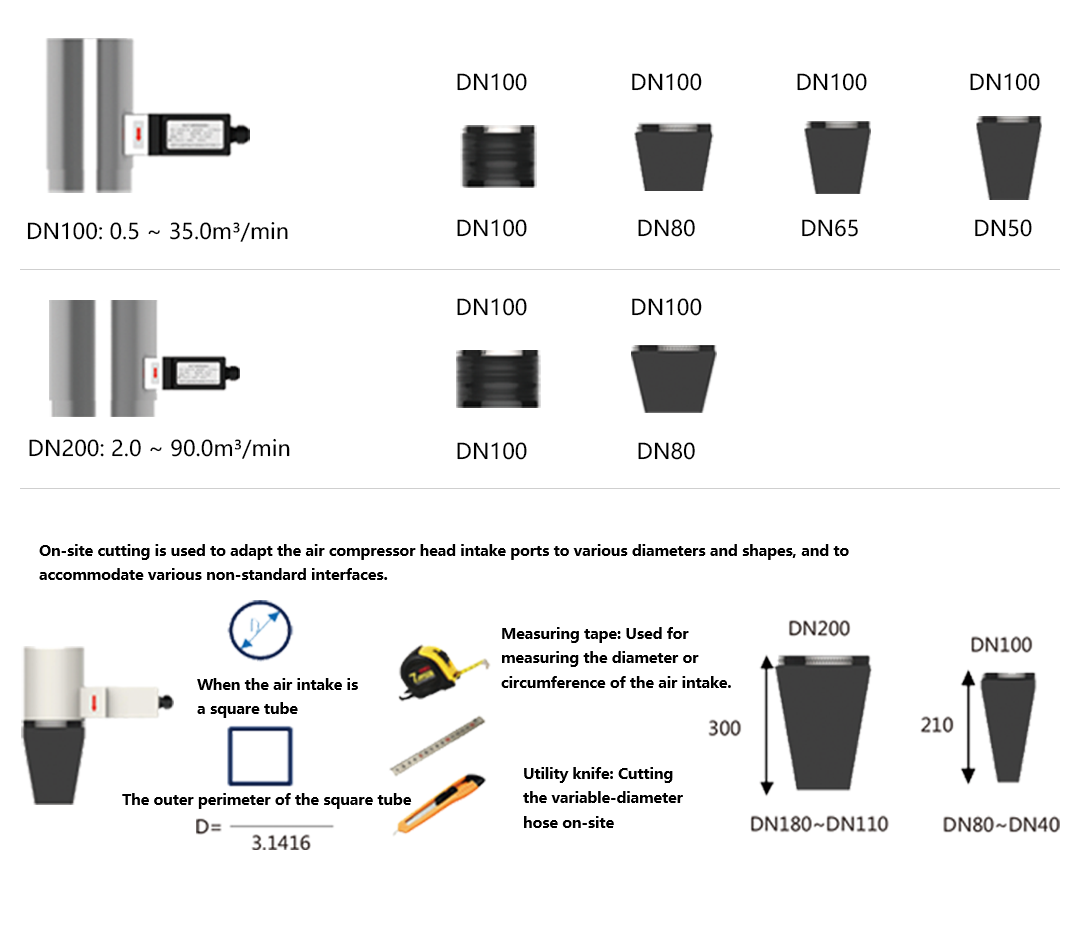

·Installation of air intake port, with a wide measurement range, equipped with a complete set of variable diameter hoses, covering all sizes of machine head air filter interfaces from DN50 to DN200.
Once the on-site test is completed, the report can be generated and sent directly via email to the recipient’s mailbox. There is no need to export the data from the computer and then conduct analysis. This is convenient and fast, making the energy-saving replacement process even more effortless and efficient.
Just connect to the internet and you can upgrade to the latest version of the software released by the Komaje technical team in real time, enjoying the high-end experience brought by technology.

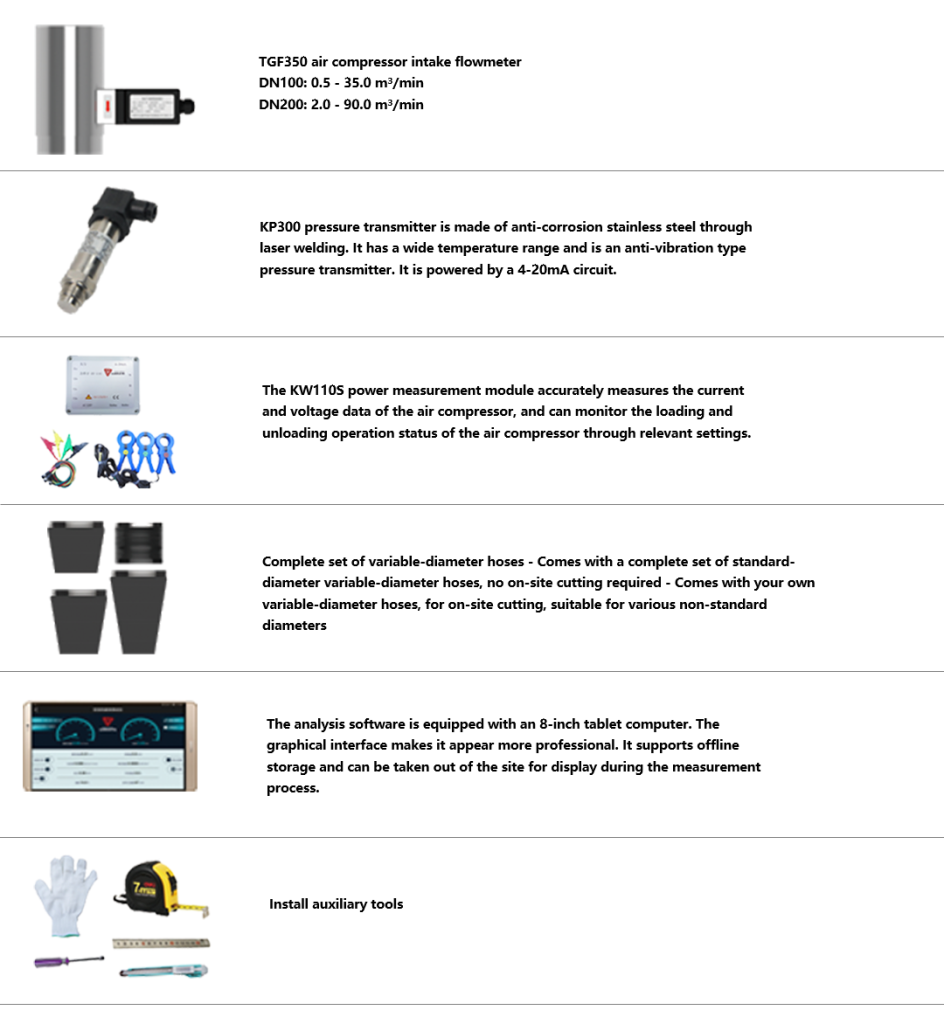

The KW110 power meter can measure the power, current and voltage of 380V three-phase three-wire or three-phase four-wire AC systems. It can also be expanded to measure 6KV and 10KV generators.
Each TGF350 flowmeter is calibrated with real flow in an accredited laboratory before leaving the factory, ensuring measurement accuracy.
·Equipped with high-precision pressure transmitters to simultaneously measure dynamic pressure data, accurately evaluating power ratio and energy-saving potential.

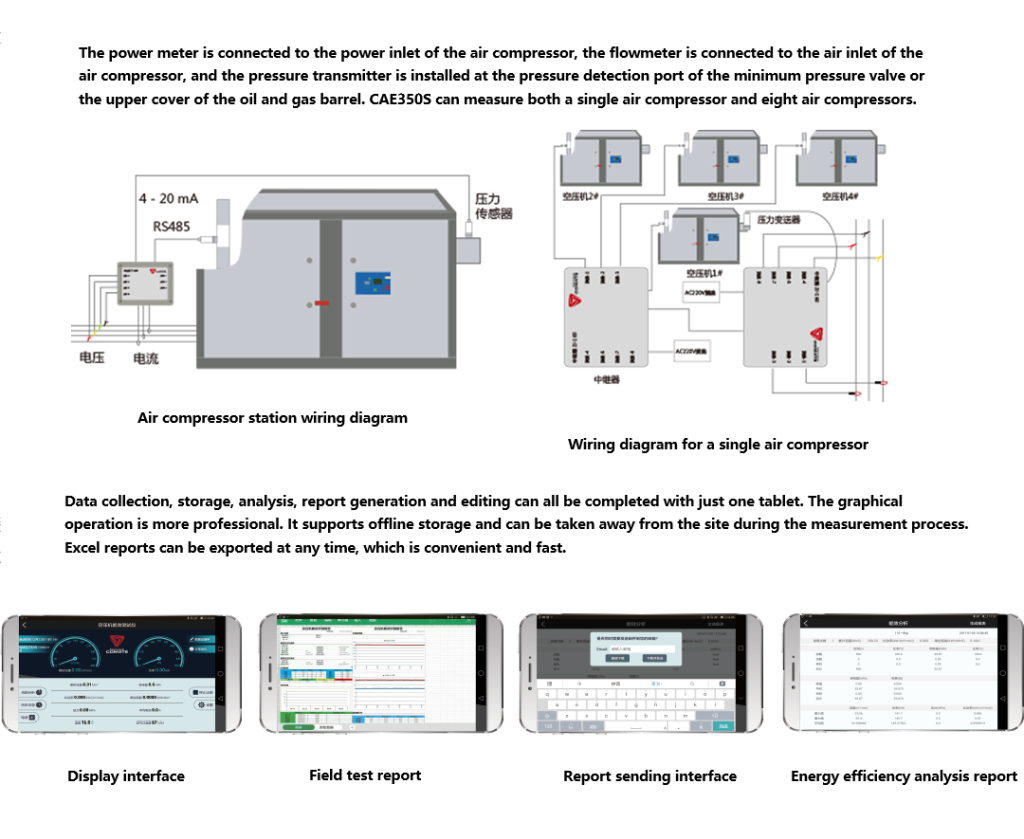

Real-time data recording function, paired with Komajie’s professional energy efficiency analysis software, automatically generating energy efficiency analysis reports.
