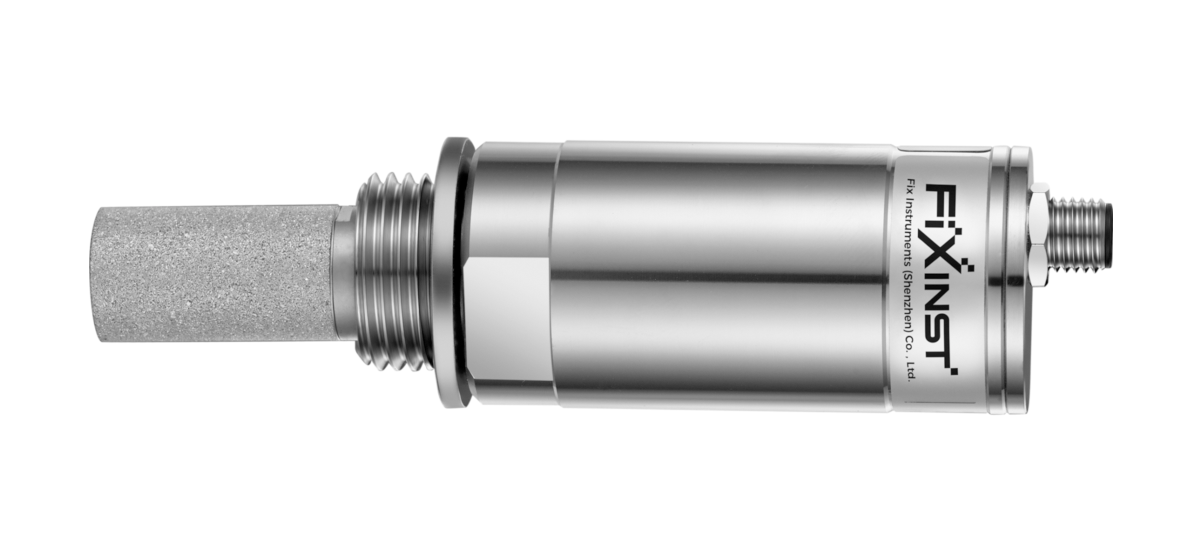

F138x QCM Dewpoint & Pressure Multi-Parameter Transmitter

Product Advantages:Integrated pressure measurement Measurement Range:-120 … 0 °Ctd

Leaflet

The F138x series integrates 3 sensors: temperature, humidity and pressure in a very compact space. It measures the dewpoint and simultaneously monitors the online pressure and outputs both the pressure dewpoint and the atmospheric dewpoint at the same time. QCM sensor technology is a revolutionary humidity measurement technology. Combined with the newly developed moisture sensitive material, it has excellent signal sensitivity in ultra-low humidity conditions and can measure humidity down to ppb level stably Revolutionary auto-calibration circuit design automatically compensates for circuit drift caused by temperature, contamination, and aging, providing long-term stability and high accuracy measurements Innovative temperature compensation algorithm and multi-point temperature compensation calibration, greatly improving the sensor’s temperature drift and ensuring high-precision dewpoint measurement over a wide temperature range

  • Revolutionary FixInst-Q QCM humidity sensitive material, lower limit of dewpoint down to -120 °Ctd, ppb level of humidity
  • Application in dewpoint < -80 °Ctd: High-purity industrial gas, clean gas
  • MEMS based pressure sensor for simultaneous monitoring of dewpoint and pressure
  • Accurate measurements up to ±2 °Ctd
  • Ultra-fast response time and outstanding long-term stability
  • High resistance to electrical disturbance
  • Excellent immunity to interference
  • IP65 protection class, providing good protection even in harsh environments
  • Provides comprehensive sensor setup, data transfer, software upgrades, and maintenance via Modbus RTU (RS485) interface and powerful service APP
Ideal for ultra-low dew point monitoring in high-purity industrial gases, clean gas systems, and semiconductor manufacturing. Ensures precise moisture control and stable gas purity.

Measuring Range

Dewpoint
F138B -110 … 0 °Ctd
F138C -120 … 0 °Ctd
Temperature -40 … +100 °C
Pressure 0 … 1.7 MPa(a)

Output

Analog Output (Customized)4 … 20 mA (3-wire)
Analog Resolution0.002 mA
Analog Drift0.01% of span/°C
Digital OutputMax. 500 ohm
Relay OutputModbus RTU (RS485)
Connector5pin M12, Female

Accuracy

Dewpoint (Air or Nitrogen)
-20 … -80 °Ctd±2 °Ctd
-80 … -110 °Ctd±3 °Ctd
Temperature (Customized)
0 … +50 °C±0.3 °C (Standard)
-40 … 0 °C & +50 … +100 °C±0.5 °C (Standard)
Pressure Accuracy @23°C± 0.3 %FS
Pressure Drift With Temperature± 0.01 bar/10 °C

Operating Environment

Environment Temperature-20 … +70 °C
Storage Temperature-30 … +80 °C
Relative Humidity0 … 95 %RH
Sample Gas Flow Rate> 1 L/min
Pressure0 … 1.7 MPa(a)

Response Time

Dewpoint: 63% [90%], Reference: 20 °C, 1bar(a), 4L/min
-50 → +20 °Ctd20 sec [40 sec]
+20 → -50 °Ctd1 min [3 min]
Pressure< 1 sec

Other

Process ConnectionISO G1/2″ thread (Standard)
3/4″ – 16 UNF thread (Customized)
5/8″ – 18 UNF thread (Customized)
Protection CodeIP65
Housing MaterialSUS304
Sensor FilterStainless steel mesh filter
(Filtration class 70 um)
EMCCompliant with IEC 61326-1

Power

Measuring State 10 … 30 VDC Max 1.5W @ 24VDC
