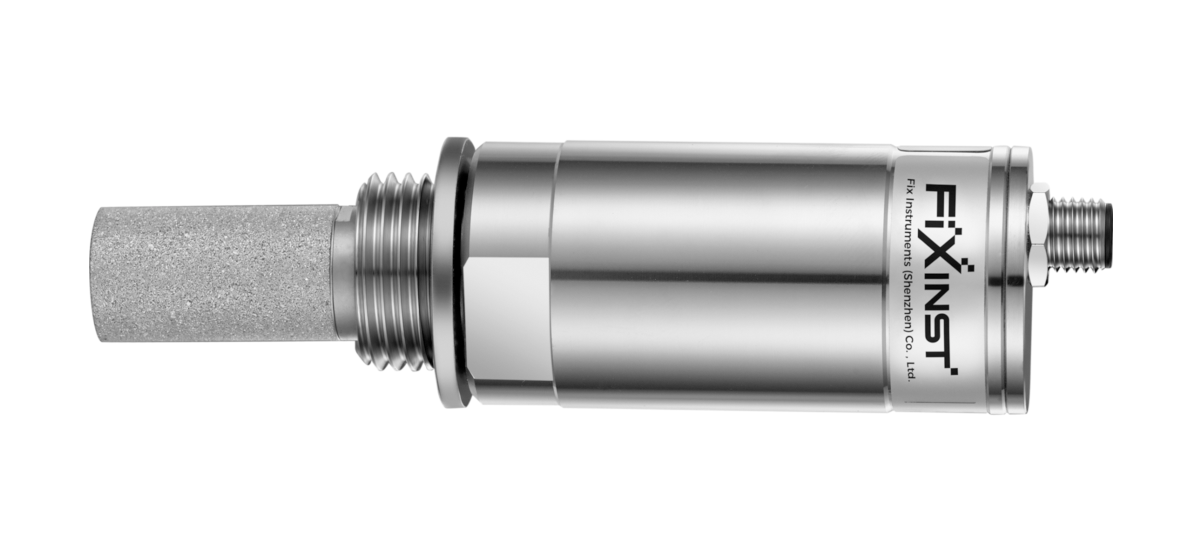

F118x FIXINST-A New-generation Al₂O₃ Compact Dewpoint Transmitter

Product Advantages:Suitable for compact spaces Measurement Range:-110 … +20 °Ctd

Leaflet

When the dewpoint of the measuring medium is below -40 °Ctd, the aluminum oxide sensor is the most accurate, responsive and long-term stable in comparison with other types of sensors. Meanwhile, it has excellent anti-pollution ability Revolutionary auto-calibration circuit design automatically compensates for measuring drift caused by temperature, contamination, and aging, providing long-term stability and high accuracy measurements Innovative temperature compensation algorithm and multi-point temperature-compensated calibration, greatly reduces temperature-dependent dewpoint drift and ensuring high-precision dewpoint measurement over a wide temperature range

  • FixInst new generation ultra-fast response aluminum oxide sensor technology
  • Application in dewpoint < -60 °Ctd: Desiccant dryers,nitrogen generators, industrial gases
  • Accurate to ± 2 °Ctd with up to 9 dewpoint calibration and multi-point temperature compensation (Refer to “Technical Data”)
  • Ultra-fast response time and outstanding long-term stability
  • Anti-condensation, resistant to particulate contamination, oil vapor and most chemicals
  • High resistance to electrical disturbance
  • IP65 protection class, providing good protection even in harsh environments
  • Provides comprehensive sensor setup, data transfer, software upgrades, and maintenance via Modbus RTU (RS485) interface and powerful service APP
  • Calibration is valid for two years, reducing maintenance
  • Best price / performance ratio among most types of dewpoint meters in the same measuring range

Ideal for compact dew point monitoring in compressed air systems, desiccant dryers, nitrogen generators, and industrial gas pipelines. Ensures reliable moisture control and stable gas quality.

Measuring Range

Dewpoint
F118A-80 … +20 °Ctd
F118B-110 … +20 °Ctd
Temperature-40 … +100 °C

Output

Analog Output (Customized)4 … 20 mA (3-wire)
Analog Resolution0.002 mA
Analog Drift0.01% of span/°C
Digital OutputMax. 500 ohm
Relay OutputModbus RTU (RS485)
Connector5pin M8, Female

Accuracy

Dewpoint (Air or Nitrogen)
+20 … -60 °Ctd±2 °Ctd
-60 … -100 °Ctd±3 °Ctd
Temperature (Customized)
0 … +50 °C±0.3 °C (Standard)
-40 … 0 °C & +50 … +100 °C±0.5 °C (Standard)

Operating Environment

Environment Temperature-30 … +70 °C
Storage Temperature-40 … +80 °C
Relative Humidity0 … 95 %RH
Sample Gas Flow Rate> 1 L/min
Pressure0 … 5 MPa(a)

Response Time

Dewpoint: 63% [90%], Reference: 20 °C, 1bar(a), 4L/min
-50 → +20 °Ctd20 sec [40 sec]
+20 → -50 °Ctd1 min [3 min]

Other

Process ConnectionISO G1/2″ thread (Standard)
3/4″ – 16 UNF thread (Customized)
5/8″ – 18 UNF thread (Customized)
Protection CodeIP65
Housing MaterialSUS304
Sensor FilterStainless steel mesh filter
(Filtration class 70 um)
EMCCompliant with IEC 61326-1

Power

Measuring State 10 … 30 VDC Max 1W @ 24VDC
