Z-Series Coriolis Mass Flowmeter
Description
The Z-Series Straight-Tube Coriolis Mass Flow Meter uses a straight-tube design to directly measure mass flow, density, and temperature in closed pipelines. Concentration measurement is available depending on the configuration. It is suitable for industrial processes that require high-accuracy measurement. Measurement accuracy, compatible media, sanitary requirements, and certifications should be confirmed against the technical documentation and supporting documents for the specific model. Materials and configurations can be selected to suit the application.
The first one in China
The first in China, it can replace imported flowmeter
- Straight pipe structure, small pressure loss, energy saving rate can be increased by more than 50%;
- The pipeline is not easy to remain the measured medium, sanitary and clean, meet with 3A Food grade hygiene standards;
- Small size, convenient installation, space saving, no straight pipe section requirements;
- Can be used to replace densitometer, concentration meter and other instruments according to customer requirements;
- Adopt digital high frequency technology, greatly improve the measurement accuracy, higher measurement accuracy, range ratio up to 1:50, can be used for trade settlement;
- It can achieve small flow and gas flow in industrial application scenarios and measurement of multiple mixed fluids;
- Stable working state, strong anti-interference ability, fast computing speed, it can be used for process control of material ratio.

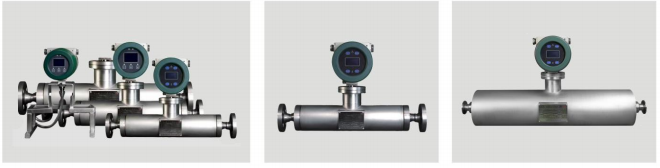

(Sanitary type)

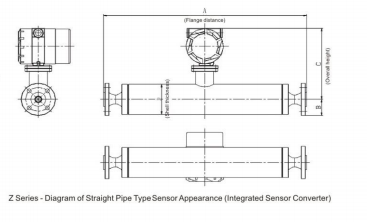

Straight pipe type external shape diagram

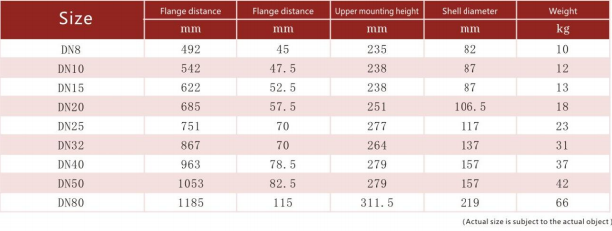

Straight pipe mass flowmeter installation size table(Integrated)
Widely range of application environments
The YACMF Coriolis mass flowmeter can be monitored in the following areas to meet the needs of the batching-mixing process and commercial metering (not limited to the following industries)
Petroleum industry
Chemical industry
Fine chemical machinery
Machinery manufacturing
Mining industry
Pharmaceutical industry
Oil industry
Boiler industry
New energy industry
Oil and gas industry
Paper industry
Paint industry
Metallurgy industry
New material industry
Shipbuilding industry
Food industry
Transportation industry
Power industry
Environmental protection industry
Test bench industry
Fuel industry
Textile printing industry
Water conservancy industry
Military industry
Product characteristics
Higher accuracy measurement of 0.1%, 0.15%, 0.2%
Range ratio up to 1:50, small pressure loss
A wide range of applications, in addition to the normal fluid measurement can also be measured by conventional instruments difficult to
measure media, such as non-organic fluid, All kinds of slurry, high viscosity fluid, suspending liquid, gas
Easier installation, no upstream and downstream straight pipe section requirements
Reliable operation, stable and lower repair rate
Optional types include regular type, sanitary type, high-pressure type, ultra-high-temperature type, low-temperature type, insulated type, etc.
Technical parameter
Measuring diameter range: DN3-DN250
Measuring accuracy: ±0.1-0.2%
Repeatability: ±0.05～0.1%
Density measurement range: 0.3-3g/cm³
Measurement accuracy: ±0.002g/cm³
Temperature measurement range: -250～+350°C
Measurement accuracy: ±1°C
Applicable ambient temperature: -40～60°
Measuring tube Material: SS316L, H.C. Titanium
Case material: SS304, SS316L
Working pressure: conventional 0～4.0MPa, high pressure 25～40MPa
Explosion-proof: Exdb[ia]ICT6Gb
Protection grade: IP67
Output: 4～20mA pulse signal, RS485
Communication: MODBUS, HART
Power supply: Adaptive power supply22-245V AC or DC
LCD display content: instantaneous flow, cumulative flow, temperature, density, concentration.
The function of saving power failure data and recovering data loss is enabled.
Optional: Split converter, Integral converter
