T-series Coriolis mass flowmeter
Description
T-series Coriolis mass flowmeter is a triangular sensor structure, which is easy to measure and ensure accuracy when the instantaneous flow rate is small.

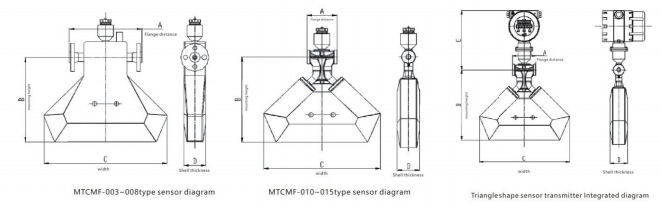

Triangle shape diagram

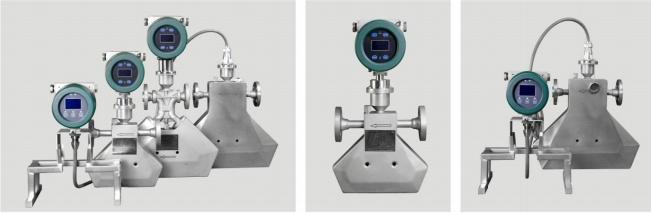

Triangle shape mass flowmeter
Widely range of application environments
The YACMF Coriolis mass flowmeter can be monitored in the following areas to meet the needs of the batching-mixing process and commercial metering (not limited to the following industries)
Petroleum industry
Chemical industry
Fine chemical machinery
Machinery manufacturing
Mining industry
Pharmaceutical industry
Oil industry
Boiler industry
New energy industry
Oil and gas industry
Paper industry
Paint industry
Metallurgy industry
New material industry
Shipbuilding industry
Food industry
Transportation industry
Power industry
Environmental protection industry
Test bench industry
Fuel industry
Textile printing industry
Water conservancy industry
Military industry
Product characteristics
Higher accuracy measurement of 0.1%, 0.15%, 0.2%
Range ratio up to 1:50, small pressure loss
A wide range of applications, in addition to the normal fluid measurement can also be measured by conventional instruments difficult to
measure media, such as non-organic fluid, All kinds of slurry, high viscosity fluid, suspending liquid, gas
Easier installation, no upstream and downstream straight pipe section requirements
Reliable operation, stable and lower repair rate
Optional types include regular type, sanitary type, high-pressure type, ultra-high-temperature type, low-temperature type, insulated type, etc.
Technical parameter
Measuring diameter range: DN3-DN250
Measuring accuracy: ±0.1-0.2%
Repeatability: ±0.05～0.1%
Density measurement range: 0.3-3g/cm³
Measurement accuracy: ±0.002g/cm³
Temperature measurement range: -250～+350°C
Measurement accuracy: ±1°C
Applicable ambient temperature: -40～60°
Measuring tube Material: SS316L, H.C. Titanium
Case material: SS304, SS316L
Working pressure: conventional 0～4.0MPa, high pressure 25～40MPa
Explosion-proof: Exdb[ia]ICT6Gb
Protection grade: IP67
Output: 4～20mA pulse signal, RS485
Communication: MODBUS, HART
Power supply: Adaptive power supply22-245V AC or DC
LCD display content: instantaneous flow, cumulative flow, temperature, density, concentration.
The function of saving power failure data and recovering data loss is enabled.
Optional: Split converter, Integral converter
