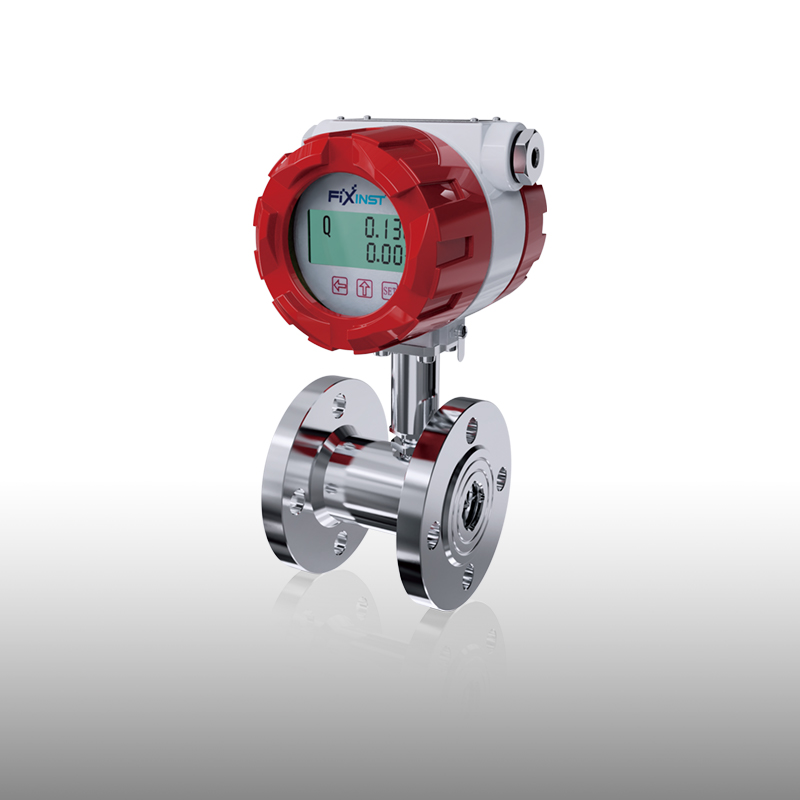

F233x Turbine liquid flow meter

Measurement Range：Please refer to “Measuring Range”
Turndown Ratio：1:6 / 1:10

Characteristics

The F233x series liquid turbine flowmeter achieves high precision measurement by using the kinetic energy of the liquid to drive the internal turbine.The flow sensor is connected to a converter to provide pulse output,current output, on-site display and other functions.The flowmeter features high accuracy, a wide measurement range, long lifespan, and simple operation and maintenance. It is widely applicable in industries such as food, pharmaceuticals, petrochemicals, metallurgy, and papermaking, making it an ideal instrument for flow measurement. The flowmeter is suitable for liquids that do not corrode stainless steel 304 SS, 2Cr13 SS, alumina (Al2O3), hard alloys, and that contain no fibers or particulate impurities.

Typical installation

• Signal conversion effciency is twice of conventional circuits, enabling effcient filtering and rapid measurement
• Precision micro power reference and 1.8 V low-power single-supply operational amplifier, with a power supply current as low as 20 mA, which is 1/5 of conventional op-amp circuits
• Supports switching among six international standard units
• Quick response and low-power stable measurement
• Standard Modbus RTU (RS485) interface and 4 … 20 mA current / pulse output
• Can be equipped with threaded, clamp or flanged connections based on actual working conditions
• Compact structure with high reliability
• Suitable for pipe diameters ranging from DN4 to DN200Non-contact measurement, unaffected by changes in fluid properties, capable of maintaining stable and accurate measurement in complex environments
