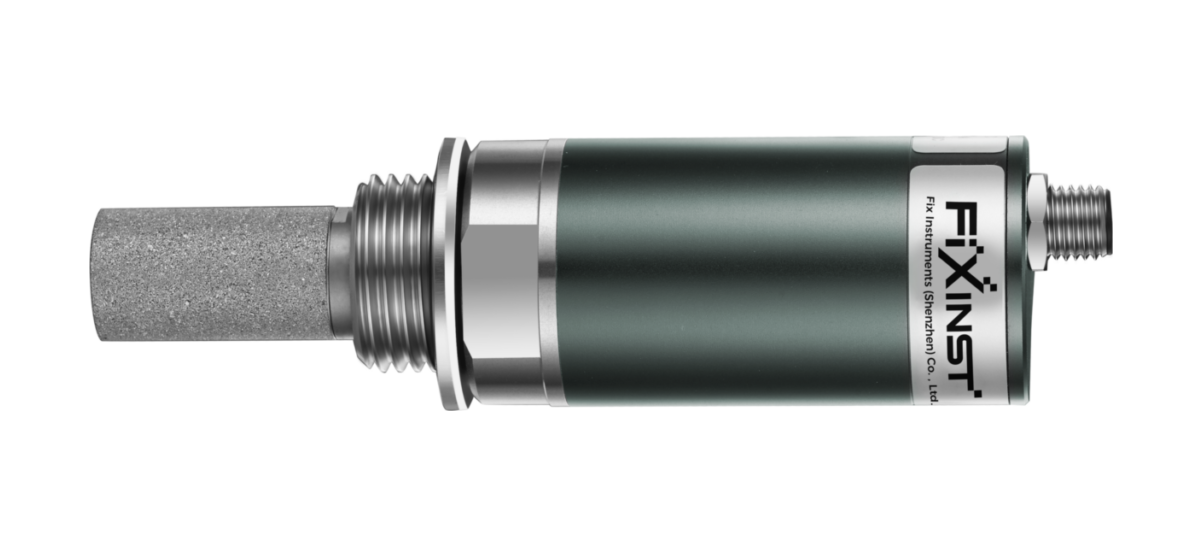

F161x-P Polymer Capacitor OEM Dewpoint Transmitter

Product Advantages:High cost performance Measurement Range:-60 … +60 °Ctd

Leaflet
When the dewpoint of the measuring medium is above -40 °Ctd, the polymer capacitive sensor has the best accuracy, response speed, long-term stability and price performance in comparison with other types of sensors Revolutionary auto-calibration circuit design automatically compensates for measuring drift caused by temperature, contamination, and aging, providing long-term stability and high accuracy measurements Innovative temperature compensation algorithm and multi-point temperature-compensated calibration, greatly reduces temperature-dependent dewpoint drift and ensuring high-precision dewpoint measurement over a wide temperature range
  • Based on polymer thin film capacitive sensor technology
  • Application in dewpoint > -60 °Ctd: Refrigerant dryers, desiccant dryers, industrial gases
  • Accurate to ± 2 °Ctd with up to 10+ dewpoint calibration and multi-point temperature compensation (Refer to “Technical Data”)
  • Ultra-fast response time and outstanding long-term stability
  • Anti-condensation, resistant to particulate contamination, oil vapor and most chemicals
  • High resistance to electrical disturbance
  • IP65 protection class, providing good protection even in harsh environments
  • Provides comprehensive sensor setup, data transfer, software upgrades, and maintenance via Modbus RTU (RS485) interface and powerful service APP
  • Calibration is valid for two years, reducing maintenance
  • Stable and cost-effective, low cost of use

Ideal for dew point monitoring in compressed air systems, refrigerated dryers, desiccant dryers, and industrial gas pipelines. Its compact, cost-effective design ensures reliable moisture control and easy system integration.

Measuring Range

Dewpoint
F161A-60 … +20 °Ctd
F161B-60 … +60 °Ctd
Temperature-40 … +100 °C

Output

Analog Output (Customized)4 … 20 mA (3-wire)
Analog Resolution0.002 mA
Analog Drift0.01% of span/°C
Digital OutputMax. 500 ohm
Relay OutputModbus RTU (RS485)
Connector5pin M8, Female

Accuracy

Dewpoint (Air or Nitrogen)
+60 … -20 °Ctd±2 °Ctd (Standard)
±0.5 °Ctd (Customized)
-20 … -60 °Ctd±2 °Ctd
Temperature (Customized)
0 … +50 °C±0.3 °C (Standard)
-40 … 0 °C & +50 … +100 °C±0.5 °C (Standard)

Operating Environment

Environment Temperature-30 … +70 °C
Storage Temperature-40 … +80 °C
Relative Humidity0 … 95 %RH
Sample Gas Flow Rate> 1 L/min
Pressure0 … 5 MPa(a)

Response Time

Dewpoint: 63% [90%], Reference: 20 °C, 1bar(a), 4L/min
-50 → +20 °Ctd20 sec [40 sec]
+20 → -50 °Ctd1 min [3 min]

Other

Process ConnectionISO G1/2″ thread (Standard)
3/4″ – 16 UNF thread (Customized)
5/8″ – 18 UNF thread (Customized)
Protection CodeIP65
Housing MaterialSUS304 + AL6061
Sensor FilterStainless steel sinter filter
(Filtration class 40~50 um)
EMCCompliant with IEC 61326-1

Power

Measuring State 10 … 30 VDC Max 1W @ 24VDC
Leaflet_F161x_Dewpoint-Meter_YUA_EN_2024-V3.01.pdf403 KB
Download ↓
QG_General-Dewpoint-Meter_YUA_EN_2024-V1.03-3.pdf370 KB
Download ↓
